SKU: CSB.206

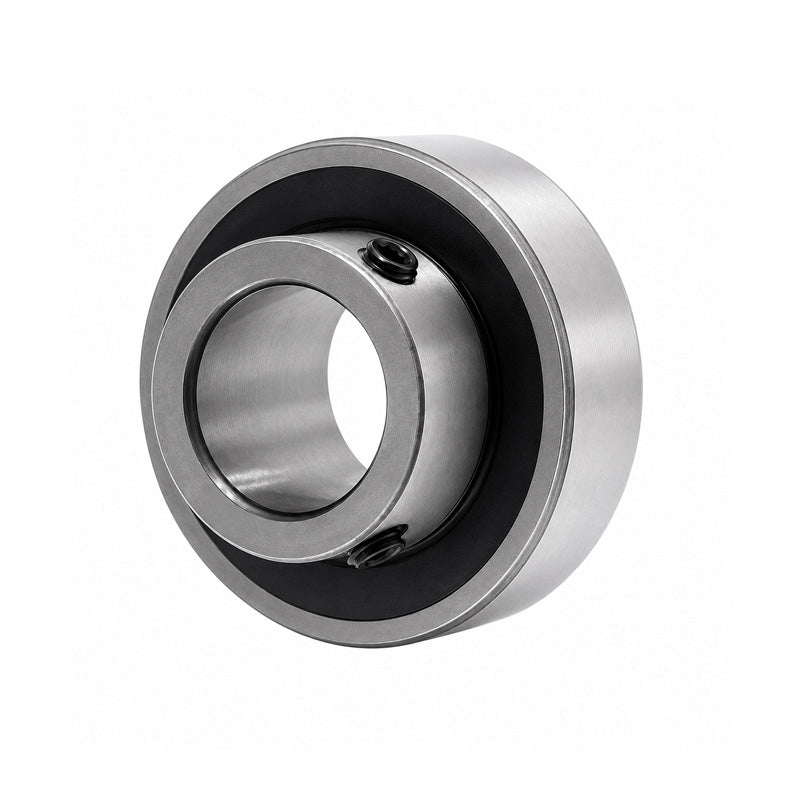

CSB206 Metric Bearing Insert with 30mm Bore 62mm Outside Dia
- Regular price
- €12.77 ex VAT
- Sale price
- €12,77
- Regular price
-
In stock
Quantity Price Breaks
3
€11.37
4
€10.73
9
€10.60
19
€10.47
49
€10.34
99
€10.22
499
€9.58
999
€9.45
1999
€9.32
2999
€9.19
4999
€8.94
SKU:
CSB.206
CSB206 Metric Bearing Insert with 30mm Bore 62mm Outside Dia
- Regular price
- €12.77 ex VAT
- Sale price
- €12,77
- Regular price
-
Description
|
CSB or 13--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found fitted directly into machine frames as it has a parallel outer diameter and is of flat back design to allow close proximity fitment of shafts and rollers. |
Technical
| d | = | 30mm |
| Be | = | 16mm |
| D | = | 62mm |
| Bi | = | 30mm |
| n | = | 8mm |
| m | = | 22mm |
| G | = | 5.5mm |
| h | = | 5mm |
| Grub screw | = | M6X1.0 |
| Weight | = | 0.27 kg |
| Dynamic load | = | 1520 kgf |
| Static load | = | 1020 kgf |
