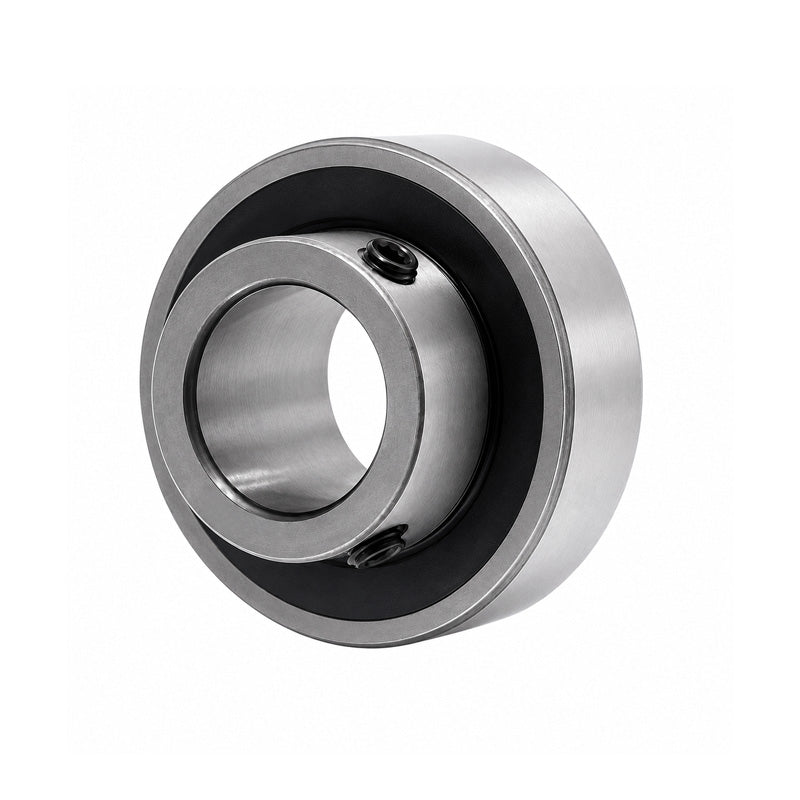

CSB207-20 Imperial Bearing Insert with 1-1/4 inch Bore 72mm Outside Dia

SKU: CSB.207-20

CSB207-20 Imperial Bearing Insert with 1-1/4 inch Bore 72mm Outside Dia

€16.64 ex VAT
€16,64
ex VAT
In stock

Quantity Price Breaks

3 €14.81
4 €13.98
9 €13.81
19 €13.64
49 €13.48
99 €13.31
499 €12.48
999 €12.31
1999 €12.15
2999 €11.98
4999 €11.65
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
CSB207-20 Imperial Bearing Insert with 1-1/4 inch Bore 72mm Outside Dia
SKU: CSB.207-20

CSB207-20 Imperial Bearing Insert with 1-1/4 inch Bore 72mm Outside Dia

€16.64 ex VAT
€16,64
ex VAT

Description

CSB or 13--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted. This insert is typical of those found fitted directly into machine frames as it has a parallel outer diameter and is of flat back design to allow close proximity fitment of shafts and rollers.
Benefits: Cost effective bearing insert, grub screw fixing, flat back design, parallel outer

Technical

d = 1-1/4 inch
Be = 17mm
D = 72mm
Bi = 32mm
n = 8.5mm
m = 23.5mm
G = 6.5mm
h = 5.5mm
Grub screw = 5/16-24 UNF
Weight = 0.42 kg
Dynamic load = 2010 kgf
Static load = 1390 kgf
