SKU: CSK.25PP.EU

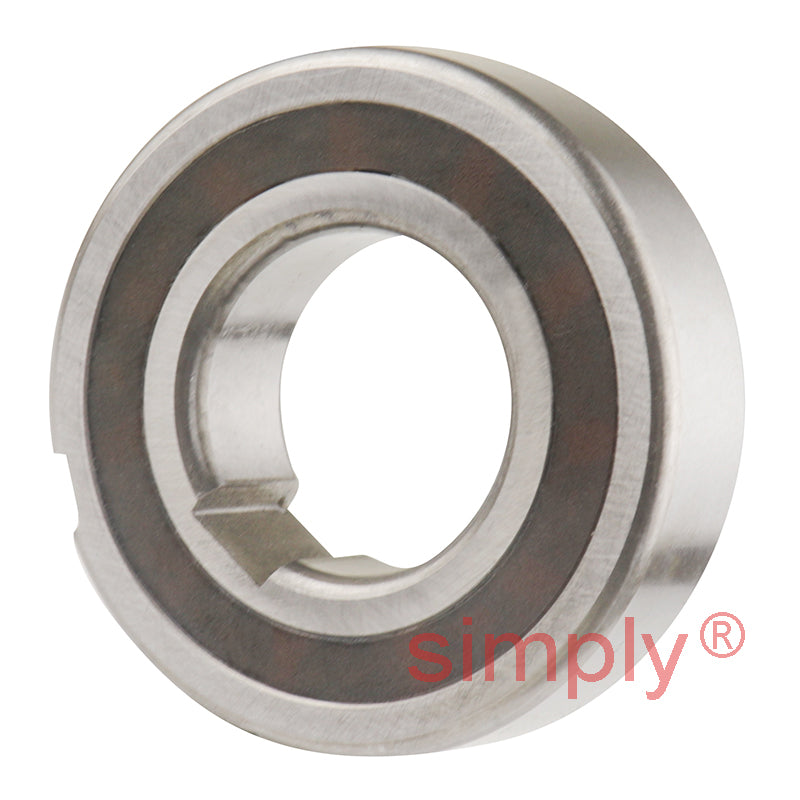

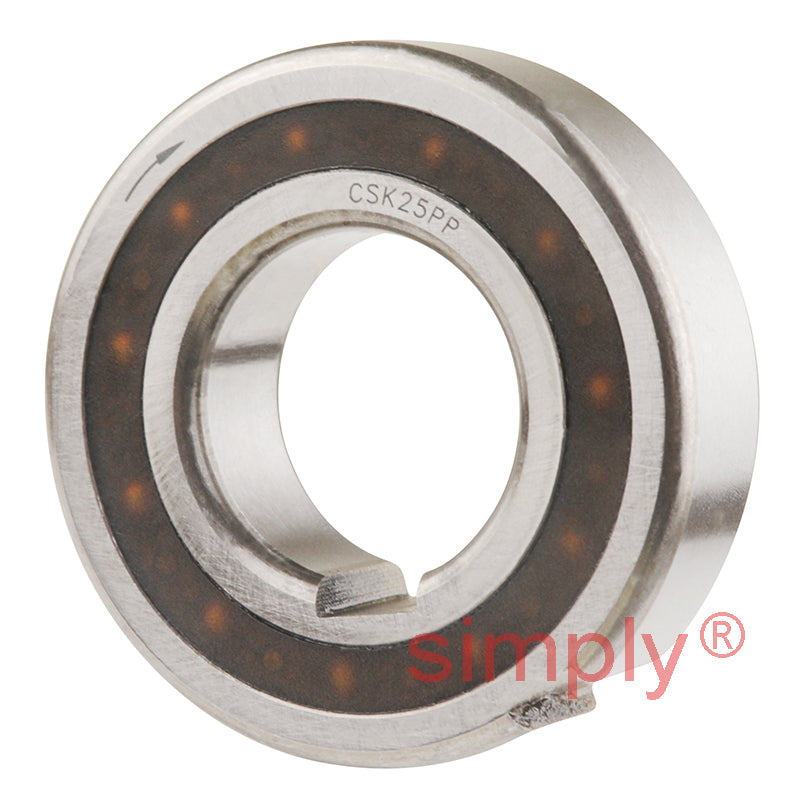

CSK25PP 25mm Sprag Clutch One Way Bearing with Internal and External Keyways 25x52x15mm
- Regular price
- €21.61 ex VAT
- Sale price
- €21,61
- Regular price
-
In stock
Quantity Price Breaks
10
€19.23
19
€18.15
29
€17.94
39
€17.72
49
€17.50
74
€17.29
99
€16.21
199
€15.99
249
€15.78
499
€15.56
999
€15.13
SKU:
CSK.25PP.EU
CSK25PP 25mm Sprag Clutch One Way Bearing with Internal and External Keyways 25x52x15mm
- Regular price
- €21.61 ex VAT
- Sale price
- €21,61
- Regular price
-
Description
|
CSK Series: This range of clutches can be used as freewheels and can be used in backstop, overrunning or indexing applications. Freewheel bearings are characterised by their ability to turn in one direction only and thus transmit torque whilst having a zero backlash. They are supplied filled with grease and are low maintenance. The torque is transmitted on the inner and outer race by an external key way to the housing and onto the shaft by an internal key way. Operating temperature range: minus 40 deg F to plus 212 deg F or minus 40 deg C to plus 100 deg C Benefits: Cost effective replacement clutch bearing, low maintenance, Internally keyed |
Technical
| d | = | 25mm |
| D | = | 52mm |
| L | = | 15mm |
| Torque Tkn | = | 85 Nm |
| n max | = | 5200 rpm |
| a min | = | 8mm |
| k min | = | 2.5mm |
| b min | = | 6mm |
| t min | = | 1.8mm |
| Dynamic load C | = | 10.7 kN |
| Static load Co | = | 5.46 kN |
| Weight | = | 0.14 kg |
| Drag Torque Tr | = | 2 Ncm |
