SKU: CSK.40.EU

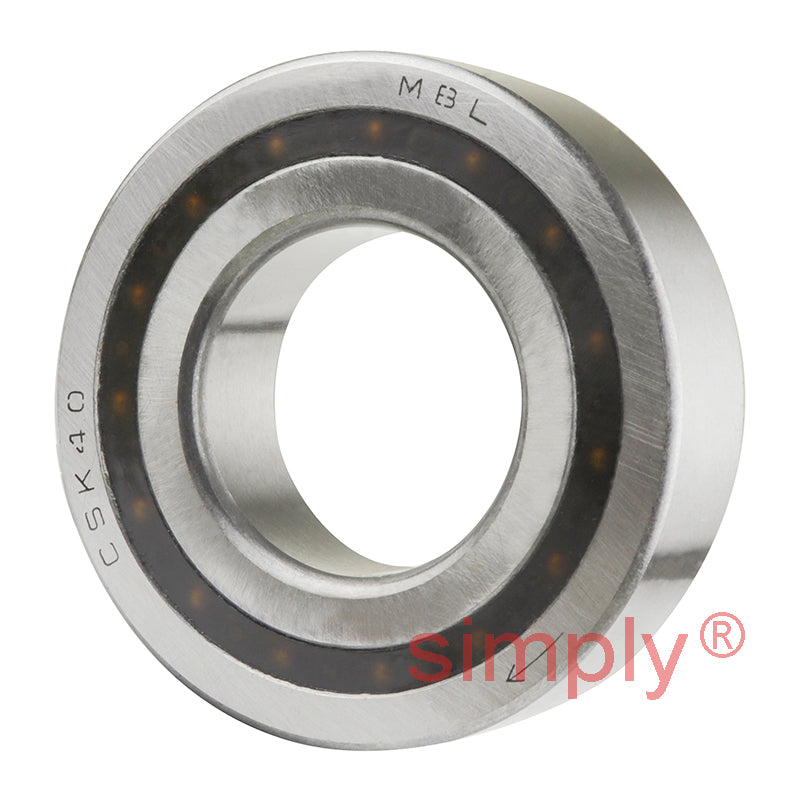

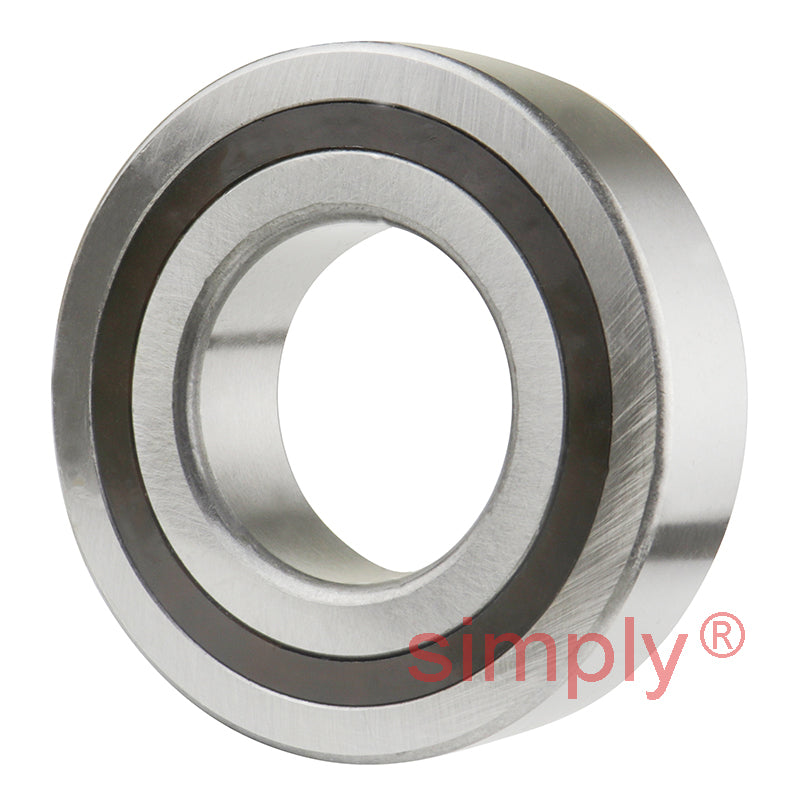

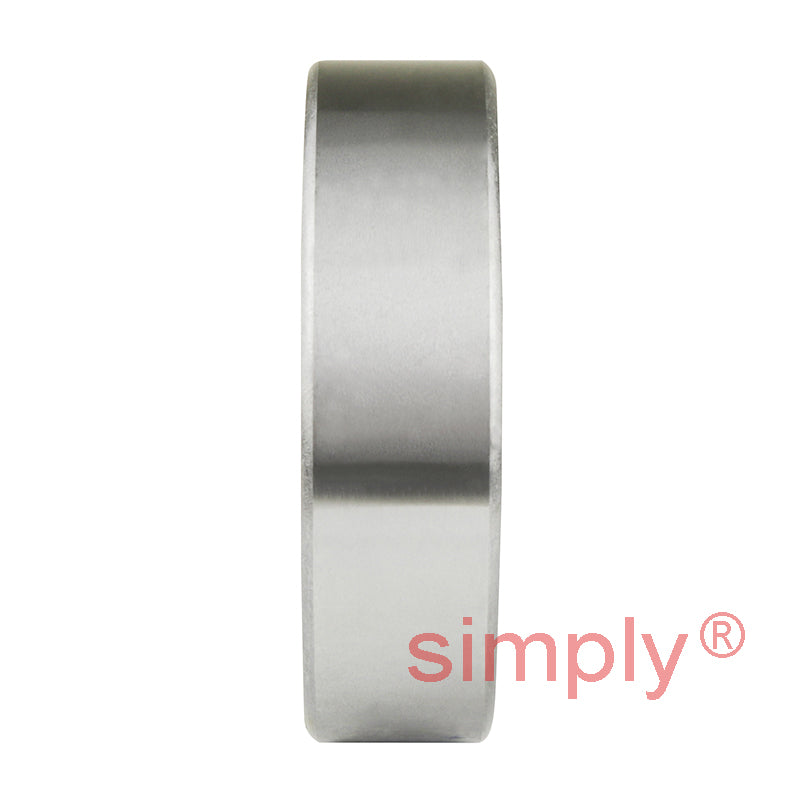

CSK40 40mm Sprag Clutch One Way Bearing Without Keyways 40x80x22mm
- Regular price
- €73.44 ex VAT
- Sale price
- €73,44
- Regular price
-
In stock
Quantity Price Breaks
10
€65.36
19
€61.69
29
€60.96
39
€60.22
49
€59.49
74
€58.75
99
€55.08
199
€54.35
249
€53.61
499
€52.88
999
€51.41
SKU:
CSK.40.EU
CSK40 40mm Sprag Clutch One Way Bearing Without Keyways 40x80x22mm
- Regular price
- €73.44 ex VAT
- Sale price
- €73,44
- Regular price
-
Description
|
CSK Series: This range of clutches can be used as freewheels and can be used in backstop, overrunning or indexing applications. Freewheel bearings are characterised by their ability to turn in one direction only and thus transmit torque whilst having a zero backlash They are supplied filled with grease and are low maintenance. The torque is transmitted on the inner and outer race by an interference fit into a rigid housing and onto a shaft. The tolerance for the housing fit is N6 and the tolerance for the shaft is n6. Operating temperature range: minus 40 deg F to plus 212 deg F or minus 40 deg C to plus 100 deg C Benefits: Cost effective replacement clutch bearing, low maintenance |
Technical
| d | = | 40mm |
| D | = | 80mm |
| L | = | 22mm |
| Torque Tkn | = | 325 Nm |
| n max | = | 3000 rpm |
| Dynamic load C | = | 15.54 kN |
| Static load Co | = | 12.25 kN |
| Weight | = | 0.5 kg |
| Drag Torque Tr | = | 7 Ncm |
