SKU: DGE10-UK-DURB

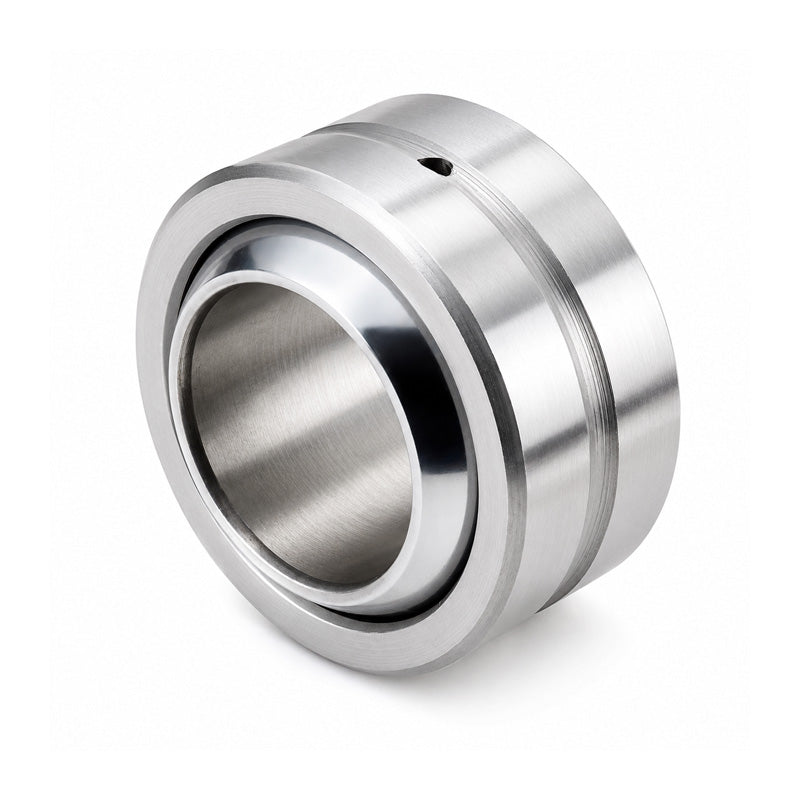

Durbal DGE10-UK Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 10x19x9mm
- Regular price
- €10.14 ex VAT
- Sale price
- €10,14
- Regular price
-
In stock
Quantity Price Breaks
10
€9.02
19
€8.52
29
€8.42
39
€8.31
49
€8.21
74
€8.11
99
€7.61
199
€7.50
249
€7.40
499
€7.30
999
€7.10
SKU:
DGE10-UK-DURB
Durbal DGE10-UK Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 10x19x9mm
- Regular price
- €10.14 ex VAT
- Sale price
- €10,14
- Regular price
-
Description
DURBAL Radial-Spherical Plain Bearing - Sliding Combination Steel/PTFE: These spherical bearings consist of a hardened, polished steel joint ball with a heat-treated outer ring lined with bronze - PTFE-composite. Suitable for use with high unilaterally acting loads. Sliding combination - steel with inset sliding film of bronze–PTFE compound material. Temperature range: -40 deg C to +200 deg C.
Note: Up to size 12 joint ball is hard chromium plated.

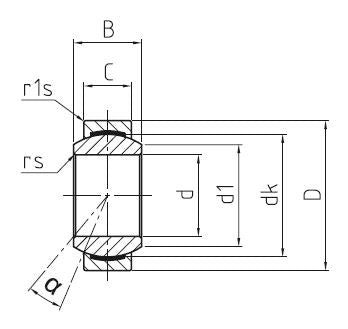

Technical
| d | = | 10mm |
| d1 | = | 13mm |
| D | = | 19mm |
| dk | = | 16mm |
| B | = | 9mm |
| C | = | 6mm |
| rs | = | 0.3mm |
| r1s | = | 0.3mm |
| tilt angle & | = | alpha |
| = | 12 deg | |
| weight | = | 0.011kg |
| basic load rating dyn C | = | 8.6 kN |
| basic load rating stat Co | = | 21 kN |
| radial clearance CN | = | 4-28 & |
| micro | = | m |
