SKU: DGEZ50ES-DURB

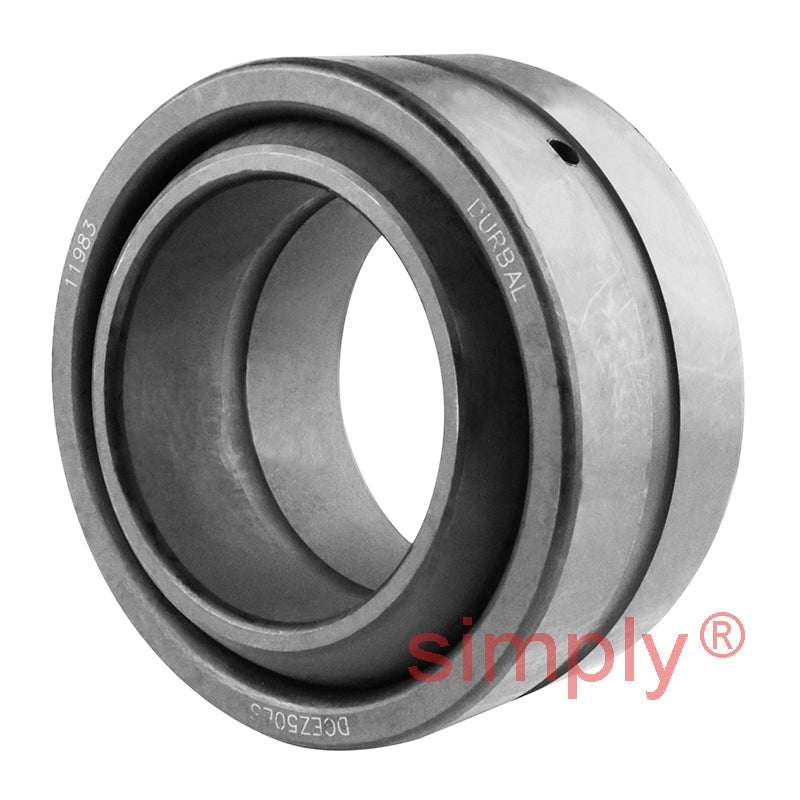

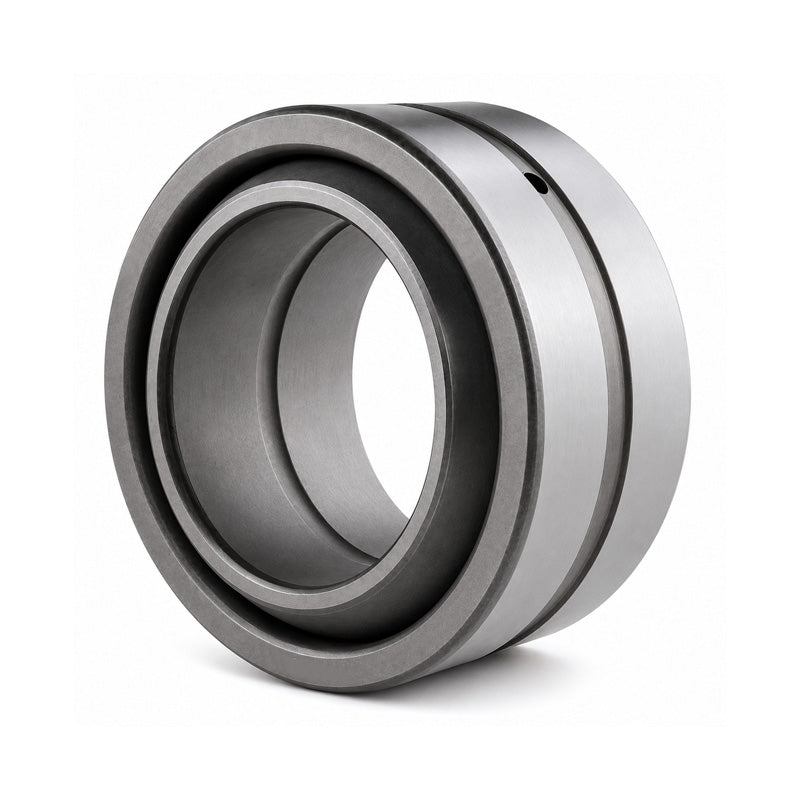

Durbal DGEZ50ES Maintenance Required Steel / Steel Imperial Spherical Plain Bearing 2x2-9/32x3-3/16 inch
- Regular price
- €52.32 ex VAT
- Sale price
- €52,32
- Regular price
-
In stock
Quantity Price Breaks
10
€46.56
19
€43.95
29
€43.43
39
€42.90
49
€42.38
74
€41.86
99
€39.24
199
€38.72
249
€38.19
499
€37.67
999
€36.62
SKU:
DGEZ50ES-DURB
Durbal DGEZ50ES Maintenance Required Steel / Steel Imperial Spherical Plain Bearing 2x2-9/32x3-3/16 inch
- Regular price
- €52.32 ex VAT
- Sale price
- €52,32
- Regular price
-
Description
DURBAL Maintenance Required Spherical-Plain Bearing - Sliding Combination Steel/Steel: These spherical bearings consist of a hardened, phosphated steel joint ball and a hardened, phosphated, single split steel outer ring with split, oil groove and drill holes. (Outer ring has a split from size 15) For use with high and alternating loads. Temperature range: -40 deg C to +200 deg C.
Note: Single Split outer ring from size 15
Technical
| d | = | 50.8mm = 2inch |
| d1 | = | 57.9mm |
| D | = | 80.963mm |
| dk | = | 73mm |
| B | = | 44.45mm |
| C | = | 38.1mm |
| rs | = | 0.6mm |
| r1s | = | 1mm |
| tilt angle & | = | alpha |
| = | 6 deg | |
| weight | = | 0.932kg |
| basic load rating dyn C | = | 224 kN |
| basic load rating stat Co | = | 670 kN |
| CN | = | 80-180 & |
| micro | = | m |
