SKU: DGF35DO-DURB

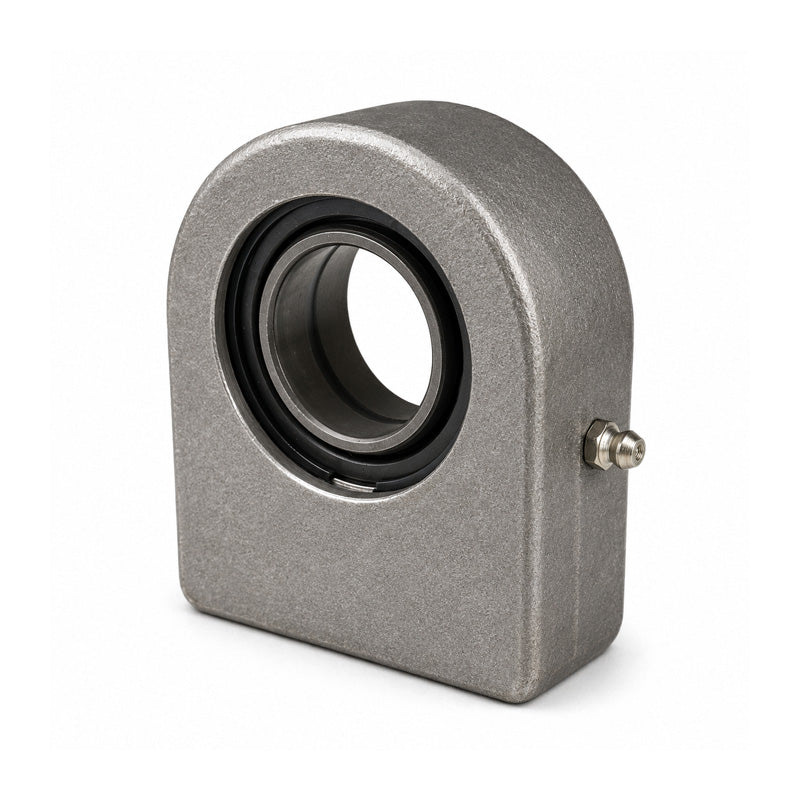

Durbal DGF35DO Maintenance Required Hydraulic Rod End with Rectangular Section Welding End
- Regular price
- €36.82 ex VAT
- Sale price
- €36,82
- Regular price
-
In stock
Quantity Price Breaks
10
€32.77
19
€30.93
29
€30.56
39
€30.19
49
€29.82
74
€29.46
99
€27.62
199
€27.25
249
€26.88
499
€26.51
999
€25.77
SKU:
DGF35DO-DURB
Durbal DGF35DO Maintenance Required Hydraulic Rod End with Rectangular Section Welding End
- Regular price
- €36.82 ex VAT
- Sale price
- €36,82
- Regular price
-

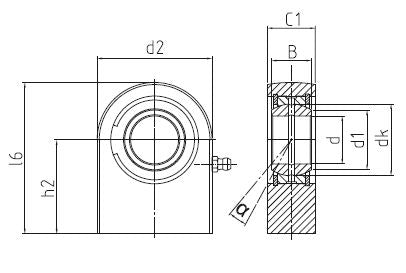

Technical
| d | = | 35mm |
| d1 | = | 39.7mm |
| d2 | = | 83mm |
| dk | = | 47mm |
| B | = | 25mm |
| C1 | = | 30mm |
| l6 | = | 102.5mm |
| h2 | = | 61mm |
| tilt angle & | = | alpha |
| = | 6 deg | |
| weight | = | 1.5kg |
| basic load rating dyn C | = | 64 kN |
| basic load rating stat Co | = | 156.8 kN |
| radial clearance CN | = | 8-100 & |
| micro | = | m |
