SKU: DGIHN-K100LO-DURB

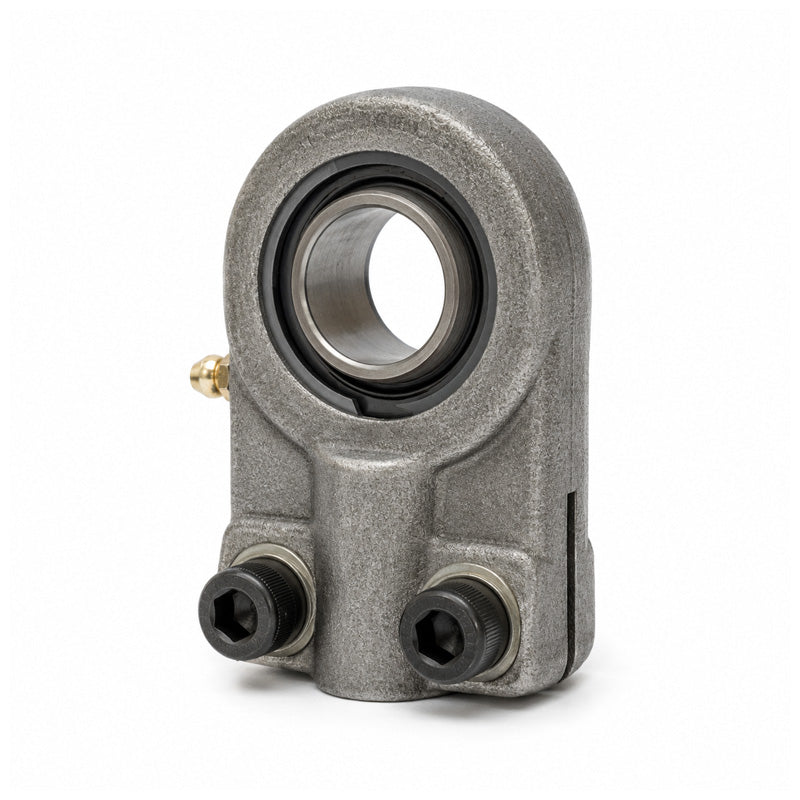

Durbal DGIHN-K100LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M80x3 Thread
- Regular price
- €612.70 ex VAT
- Sale price
- €612,70
- Regular price
-
In stock
Quantity Price Breaks
10
€545.30
19
€514.67
29
€508.54
39
€502.41
49
€496.29
74
€490.16
99
€459.53
199
€453.40
249
€447.27
499
€441.14
999
€428.89
SKU:
DGIHN-K100LO-DURB
Durbal DGIHN-K100LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M80x3 Thread
- Regular price
- €612.70 ex VAT
- Sale price
- €612,70
- Regular price
-
Description
DURBAL Maintenance Required Female Hydraulic-Rod Ends with Pressed Spherical-Plain Bearing (Slot and Clamping Arrangement): Threaded female hydraulic rod end consisting of a forged, heat-treated steel housing with a steel, hardened, ground, phosphated outer ring with single split, oil groove and drill holes and a steel joint ball. Used for alternating radial loads. Female thread with slot, clamping arrangement. Temperature range -40 deg C to +200 deg C.
Technical
| Thread Direction | = | Right |
| d | = | 100mm |
| d1 | = | 113mm |
| d2 | = | 210mm |
| d4 | = | 110mm |
| d5 | = | 178mm |
| dk | = | 150mm |
| G (Thread) | = | M80x3mm |
| B | = | 100mm |
| C1 | = | 84mm |
| C2 | = | 62mm |
| l3 | = | 96mm |
| l4 | = | 322mm |
| l7 | = | 98mm |
| h1 | = | 210mm |
| tilt angle & | = | alpha |
| = | 4 deg | |
| weight | = | 28kg |
| basic load rating dyn C | = | 488 kN |
| basic load rating stat Co | = | 848 kN |
| radial clearance CN | = | 8-165 & |
| micro | = | m |
