SKU: DGIHN-K20LO-DURB

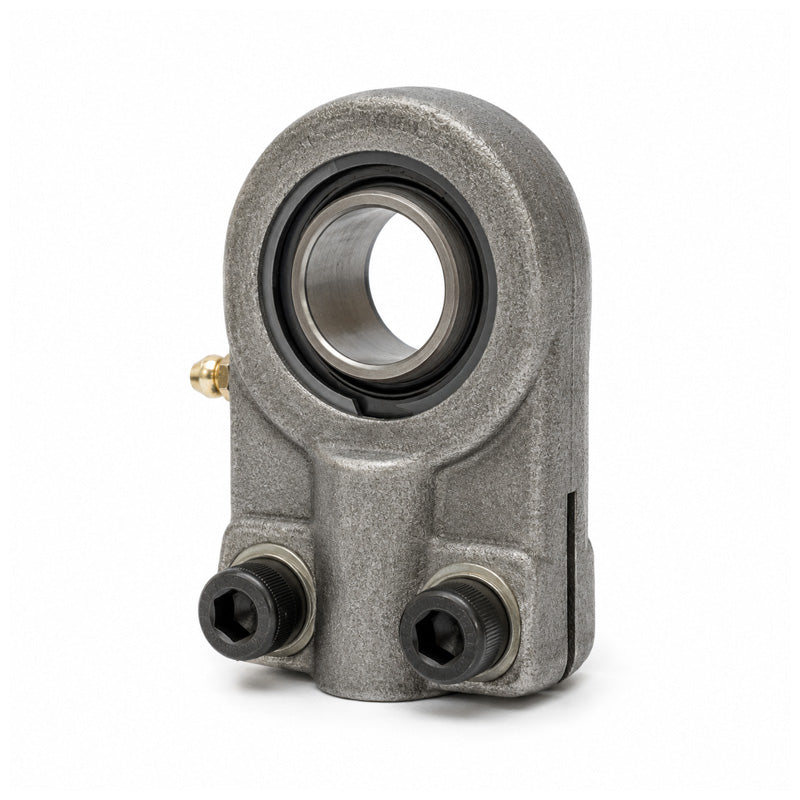

Durbal DGIHN-K20LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M16x1.5 Thread
- Regular price
- €25.07 ex VAT
- Sale price
- €25,07
- Regular price
-
In stock
Quantity Price Breaks
10
€22.31
19
€21.06
29
€20.81
39
€20.56
49
€20.31
74
€20.06
99
€18.80
199
€18.55
249
€18.30
499
€18.05
999
€17.55
SKU:
DGIHN-K20LO-DURB
Durbal DGIHN-K20LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M16x1.5 Thread
- Regular price
- €25.07 ex VAT
- Sale price
- €25,07
- Regular price
-
Description
DURBAL Maintenance Required Female Hydraulic-Rod Ends with Pressed Spherical-Plain Bearing (Slot and Clamping Arrangement): Threaded female hydraulic rod end consisting of a forged, heat-treated steel housing with a steel, hardened, ground, phosphated outer ring with single split, oil groove and drill holes and a steel joint ball. Used for alternating radial loads. Female thread with slot, clamping arrangement. Temperature range -40 deg C to +200 deg C.
Technical
| Thread Direction | = | Right |
| d | = | 20mm |
| d1 | = | 25mm |
| d2 | = | 47mm |
| d4 | = | 25mm |
| d5 | = | 47mm |
| dk | = | 29mm |
| G (Thread) | = | M16x1.5mm |
| B | = | 20mm |
| C1 | = | 17mm |
| C2 | = | 19mm |
| l3 | = | 23mm |
| l4 | = | 77mm |
| l7 | = | 22mm |
| h1 | = | 52mm |
| tilt angle & | = | alpha |
| = | 4 deg | |
| weight | = | 0.4kg |
| basic load rating dyn C | = | 24 kN |
| basic load rating stat Co | = | 38.4 kN |
| radial clearance CN | = | 8-82 & |
| micro | = | m |
