SKU: DGIHN-K32LO-DURB

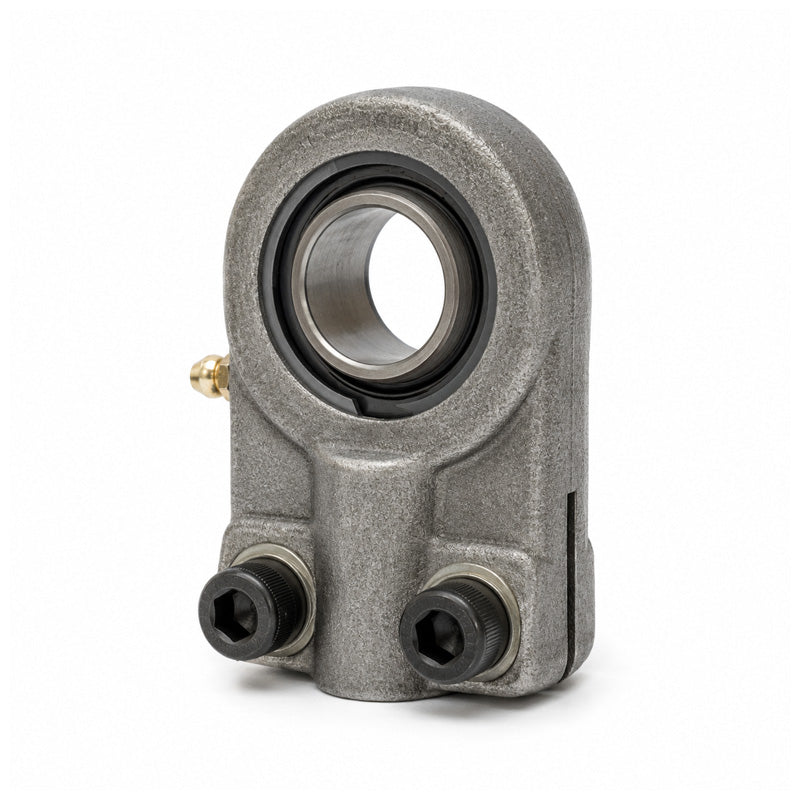

Durbal DGIHN-K32LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M27x2 Thread
- Regular price
- €34.52 ex VAT
- Sale price
- €34,52
- Regular price
-
In stock
Quantity Price Breaks
10
€30.72
19
€29.00
29
€28.65
39
€28.31
49
€27.96
74
€27.62
99
€25.89
199
€25.54
249
€25.20
499
€24.85
999
€24.16
SKU:
DGIHN-K32LO-DURB
Durbal DGIHN-K32LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M27x2 Thread
- Regular price
- €34.52 ex VAT
- Sale price
- €34,52
- Regular price
-
Description
DURBAL Maintenance Required Female Hydraulic-Rod Ends with Pressed Spherical-Plain Bearing (Slot and Clamping Arrangement): Threaded female hydraulic rod end consisting of a forged, heat-treated steel housing with a steel, hardened, ground, phosphated outer ring with single split, oil groove and drill holes and a steel joint ball. Used for alternating radial loads. Female thread with slot, clamping arrangement. Temperature range -40 deg C to +200 deg C.
Technical
| Thread Direction | = | Right |
| d | = | 32mm |
| d1 | = | 37mm |
| d2 | = | 71mm |
| d4 | = | 38mm |
| d5 | = | 66mm |
| dk | = | 44mm |
| G (Thread) | = | M27x2mm |
| B | = | 32mm |
| C1 | = | 28mm |
| C2 | = | 22mm |
| l3 | = | 37mm |
| l4 | = | 118.5mm |
| l7 | = | 32mm |
| h1 | = | 80mm |
| tilt angle & | = | alpha |
| = | 4 deg | |
| weight | = | 1.2kg |
| basic load rating dyn C | = | 53.6 kN |
| basic load rating stat Co | = | 91.2 kN |
| radial clearance CN | = | 8-100 & |
| micro | = | m |
