SKU: DGIHN-K40LO-DURB

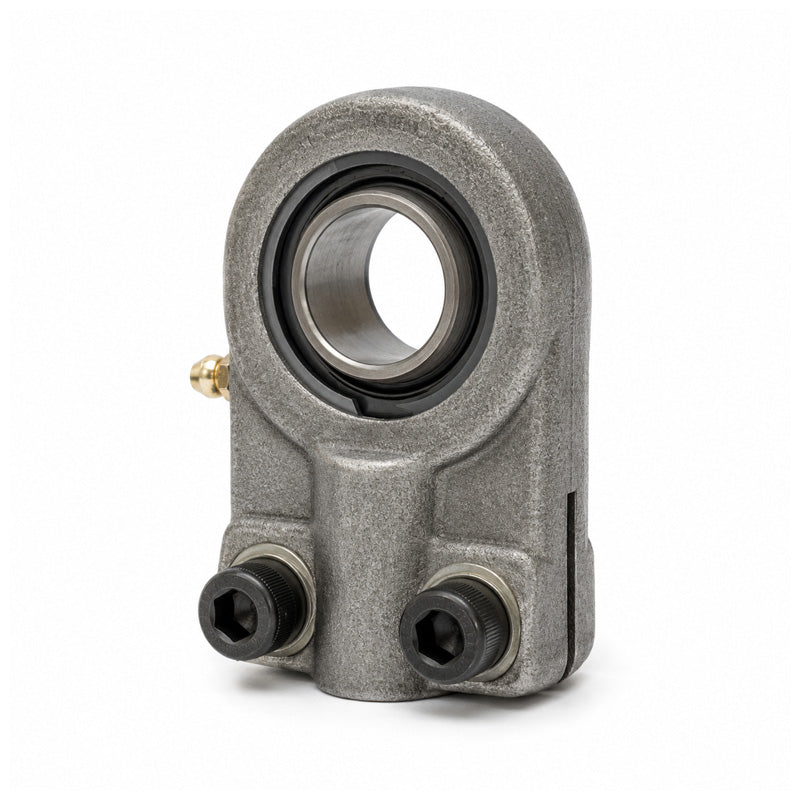

Durbal DGIHN-K40LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M33x2 Thread
- Regular price
- €123.53 ex VAT
- Sale price
- €123,53
- Regular price
-
Not in stock
Quantity Price Breaks
10
€109.94
19
€103.77
29
€102.53
39
€101.29
49
€100.06
74
€98.82
99
€92.65
199
€91.41
249
€90.18
499
€88.94
999
€86.47
SKU:
DGIHN-K40LO-DURB
Durbal DGIHN-K40LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M33x2 Thread
- Regular price
- €123.53 ex VAT
- Sale price
- €123,53
- Regular price
-
Description
DURBAL Maintenance Required Female Hydraulic-Rod Ends with Pressed Spherical-Plain Bearing (Slot and Clamping Arrangement): Threaded female hydraulic rod end consisting of a forged, heat-treated steel housing with a steel, hardened, ground, phosphated outer ring with single split, oil groove and drill holes and a steel joint ball. Used for alternating radial loads. Female thread with slot, clamping arrangement. Temperature range -40 deg C to +200 deg C.

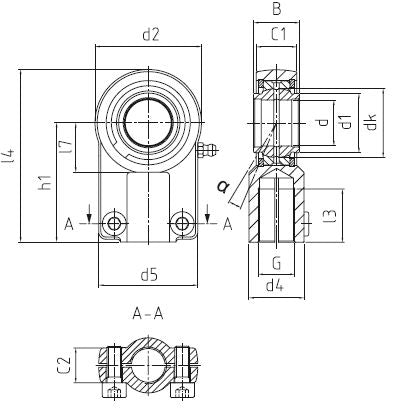

Technical
| Thread Direction | = | Right |
| d | = | 40mm |
| d1 | = | 46mm |
| d2 | = | 90mm |
| d4 | = | 47mm |
| d5 | = | 80mm |
| dk | = | 53mm |
| G (Thread) | = | M33x2mm |
| B | = | 40mm |
| C1 | = | 33mm |
| C2 | = | 26mm |
| l3 | = | 46mm |
| l4 | = | 146mm |
| l7 | = | 41mm |
| h1 | = | 97mm |
| tilt angle & | = | alpha |
| = | 4 deg | |
| weight | = | 2.1kg |
| basic load rating dyn C | = | 80 kN |
| basic load rating stat Co | = | 163.2 kN |
| radial clearance CN | = | 8-120 & |
| micro | = | m |
