SKU: DGIHN-K50LO-DURB

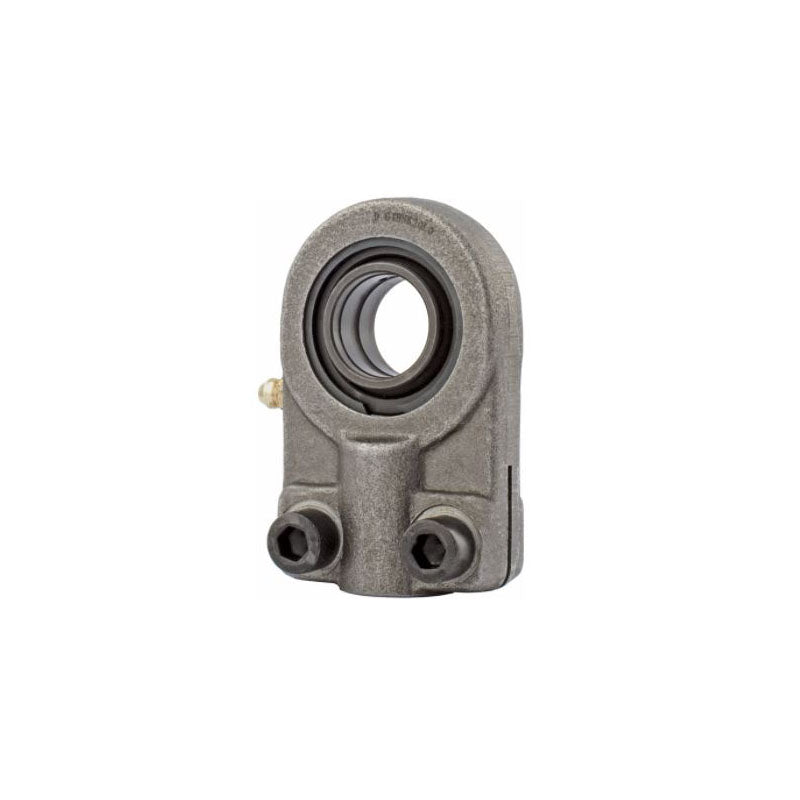

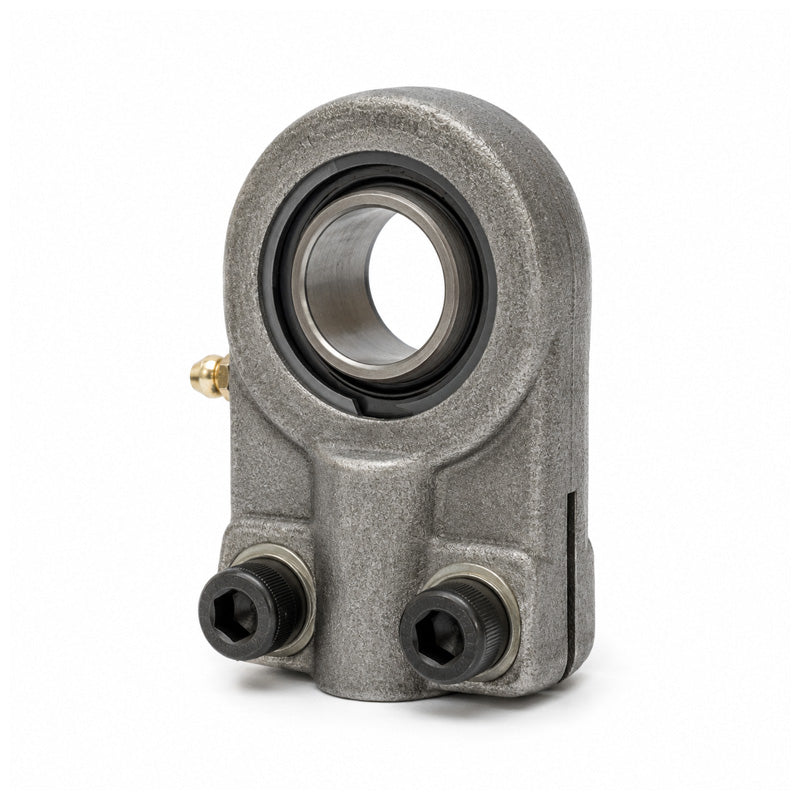

Durbal DGIHN-K50LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M42x2 Thread
- Regular price
- €79.06 ex VAT
- Sale price
- €79,06
- Regular price
-
Not in stock
Quantity Price Breaks
10
€70.36
19
€66.41
29
€65.62
39
€64.83
49
€64.04
74
€63.25
99
€59.30
199
€58.50
249
€57.71
499
€56.92
999
€55.34
SKU:
DGIHN-K50LO-DURB
Durbal DGIHN-K50LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M42x2 Thread
- Regular price
- €79.06 ex VAT
- Sale price
- €79,06
- Regular price
-
Description
DURBAL Maintenance Required Female Hydraulic-Rod Ends with Pressed Spherical-Plain Bearing (Slot and Clamping Arrangement): Threaded female hydraulic rod end consisting of a forged, heat-treated steel housing with a steel, hardened, ground, phosphated outer ring with single split, oil groove and drill holes and a steel joint ball. Used for alternating radial loads. Female thread with slot, clamping arrangement. Temperature range -40 deg C to +200 deg C.
Technical
| Thread Direction | = | Right |
| d | = | 50mm |
| d1 | = | 57mm |
| d2 | = | 109mm |
| d4 | = | 58mm |
| d5 | = | 96mm |
| dk | = | 66mm |
| G (Thread) | = | M42x2mm |
| B | = | 50mm |
| C1 | = | 41mm |
| C2 | = | 32mm |
| l3 | = | 57mm |
| l4 | = | 179.5mm |
| l7 | = | 50mm |
| h1 | = | 120mm |
| tilt angle & | = | alpha |
| = | 4 deg | |
| weight | = | 4.4kg |
| basic load rating dyn C | = | 124.8 kN |
| basic load rating stat Co | = | 248 kN |
| radial clearance CN | = | 8-120 & |
| micro | = | m |
