SKU: DGIHN-K63LO-DURB

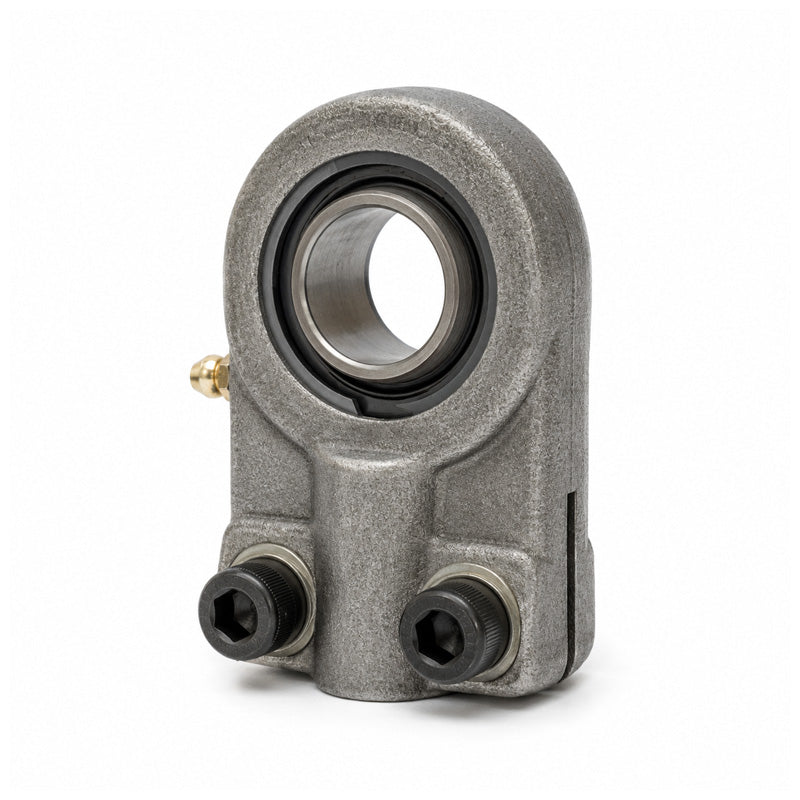

Durbal DGIHN-K63LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M48x2 Thread
- Regular price
- €175.60 ex VAT
- Sale price
- €175,60
- Regular price
-
Not in stock
Quantity Price Breaks
10
€156.28
19
€147.50
29
€145.75
39
€143.99
49
€142.24
74
€140.48
99
€131.70
199
€129.94
249
€128.19
499
€126.43
999
€122.92
SKU:
DGIHN-K63LO-DURB
Durbal DGIHN-K63LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M48x2 Thread
- Regular price
- €175.60 ex VAT
- Sale price
- €175,60
- Regular price
-
Description
DURBAL Maintenance Required Female Hydraulic-Rod Ends with Pressed Spherical-Plain Bearing (Slot and Clamping Arrangement): Threaded female hydraulic rod end consisting of a forged, heat-treated steel housing with a steel, hardened, ground, phosphated outer ring with single split, oil groove and drill holes and a steel joint ball. Used for alternating radial loads. Female thread with slot, clamping arrangement. Temperature range -40 deg C to +200 deg C.
Technical
| Thread Direction | = | Right |
| d | = | 63mm |
| d1 | = | 71.5mm |
| d2 | = | 136mm |
| d4 | = | 70mm |
| d5 | = | 114mm |
| dk | = | 8.3mm |
| G (Thread) | = | M48x2mm |
| B | = | 63mm |
| C1 | = | 53mm |
| C2 | = | 38mm |
| l3 | = | 64mm |
| l4 | = | 213mm |
| l7 | = | 62mm |
| h1 | = | 140mm |
| tilt angle & | = | alpha |
| = | 4 deg | |
| weight | = | 7.6kg |
| basic load rating dyn C | = | 204 kN |
| basic load rating stat Co | = | 344 kN |
| radial clearance CN | = | 8-142 & |
| micro | = | m |
