SKU: DGIHN-K80LO-DURB

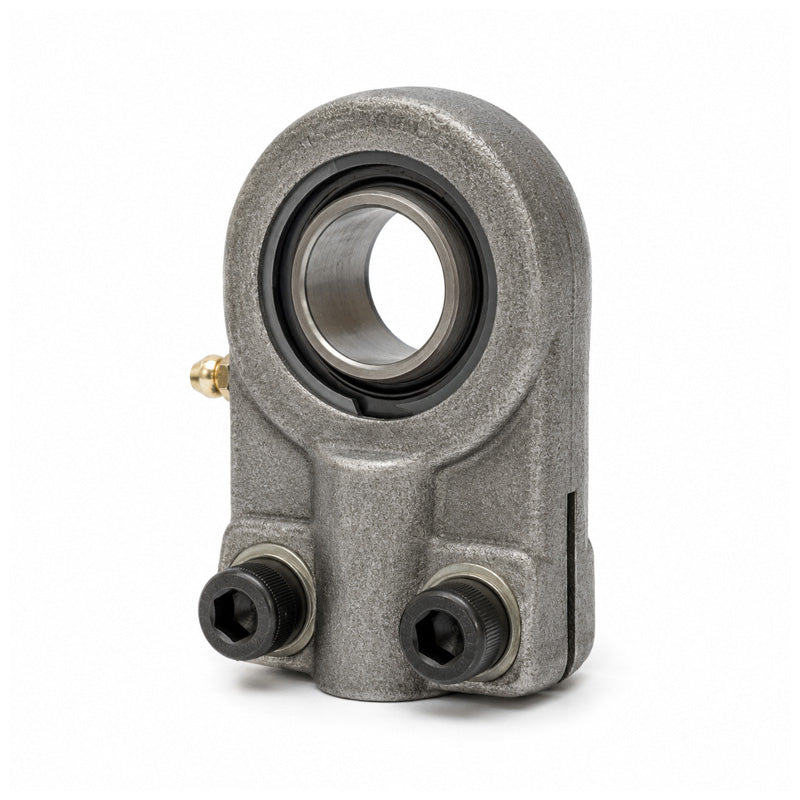

Durbal DGIHN-K80LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M64x3 Thread
- Regular price
- €509.15 ex VAT
- Sale price
- €509,15
- Regular price
-
Not in stock
Quantity Price Breaks
10
€453.14
19
€427.69
29
€422.59
39
€417.50
49
€412.41
74
€407.32
99
€381.86
199
€376.77
249
€371.68
499
€366.59
999
€356.41
SKU:
DGIHN-K80LO-DURB
Durbal DGIHN-K80LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M64x3 Thread
- Regular price
- €509.15 ex VAT
- Sale price
- €509,15
- Regular price
-
Description
DURBAL Maintenance Required Female Hydraulic-Rod Ends with Pressed Spherical-Plain Bearing (Slot and Clamping Arrangement): Threaded female hydraulic rod end consisting of a forged, heat-treated steel housing with a steel, hardened, ground, phosphated outer ring with single split, oil groove and drill holes and a steel joint ball. Used for alternating radial loads. Female thread with slot, clamping arrangement. Temperature range -40 deg C to +200 deg C.
Technical
| Thread Direction | = | Right |
| d | = | 80mm |
| d1 | = | 91mm |
| d2 | = | 168mm |
| d4 | = | 90mm |
| d5 | = | 148mm |
| dk | = | 105mm |
| G (Thread) | = | M64x3mm |
| B | = | 80mm |
| C1 | = | 66mm |
| C2 | = | 48mm |
| l3 | = | 86mm |
| l4 | = | 270mm |
| l7 | = | 78mm |
| h1 | = | 180mm |
| tilt angle & | = | alpha |
| = | 4 deg | |
| weight | = | 14.5kg |
| basic load rating dyn C | = | 320 kN |
| basic load rating stat Co | = | 556 kN |
| radial clearance CN | = | 8-142 & |
| micro | = | m |
