SKU: DGIHR-K25DO-DURB

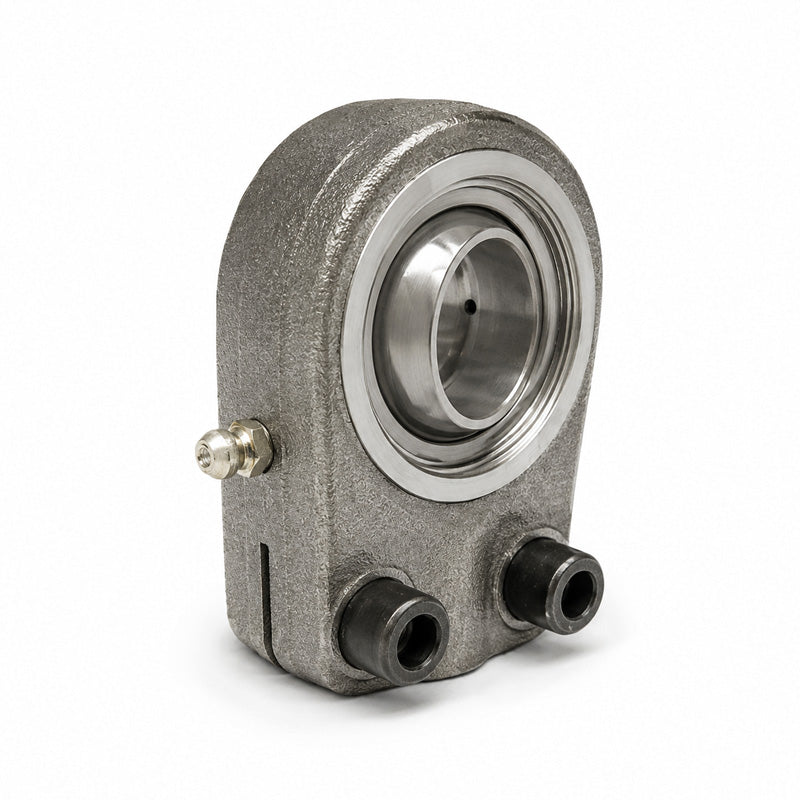

Durbal DGIHR-K25DO Maintenance Required Right Hand Hydraulic Rod End with Slot and Clamping Arrangement M16x1.5 Thread
- Regular price
- €31.49 ex VAT
- Sale price
- €31,49
- Regular price
-
Quantity Price Breaks
Durbal DGIHR-K25DO Maintenance Required Right Hand Hydraulic Rod End with Slot and Clamping Arrangement M16x1.5 Thread
- Regular price
- €31.49 ex VAT
- Sale price
- €31,49
- Regular price
-
Description
DURBAL Maintenance Required Female Hydraulic-Rod Ends with Pressed Spherical-Plain Bearing and (Slot and Clamping Arrangement): Threaded female hydraulic rod end consisting of a forged, heat-treated steel housing with a steel, hardened, ground, phosphated outer ring with single split, oil groove and drill holes and a steel joint ball. Used for alternating radial loads and for minimum linkage distances with maximum stroke utilisation. Female thread with slot, clamping arrangement. All rod ends can be greased subsequently by means of a conical grease nipple. Hydraulic rod ends are fixed as standard with maintenance required DGE_ES radial-spherical-plain bearings and fixed with retaining rings. Temperature range -40 deg C to +200 deg C.
Technical
| Thread Direction | = | Right |
| d | = | 25mm |
| d1 | = | 29.3mm |
| d2 | = | 56mm |
| d4 | = | 25mm |
| d5 | = | 46mm |
| dk | = | 35.5mm |
| G (Thread) | = | M16x1.5mm |
| B | = | 20mm |
| C1 | = | 23mm |
| l3 | = | 17mm |
| l7 | = | 28mm |
| l4 | = | 80 |
| h1 | = | 50mm |
| tilt angle & | = | alpha |
| = | 7 deg | |
| weight | = | 0.48kg |
| basic load rating dyn C | = | 23.8 kN |
| basic load rating stat Co | = | 57.6 kN |
| radial clearance CN | = | 8-100 & |
| micro | = | m |
