SKU: DGK30DO-DURB

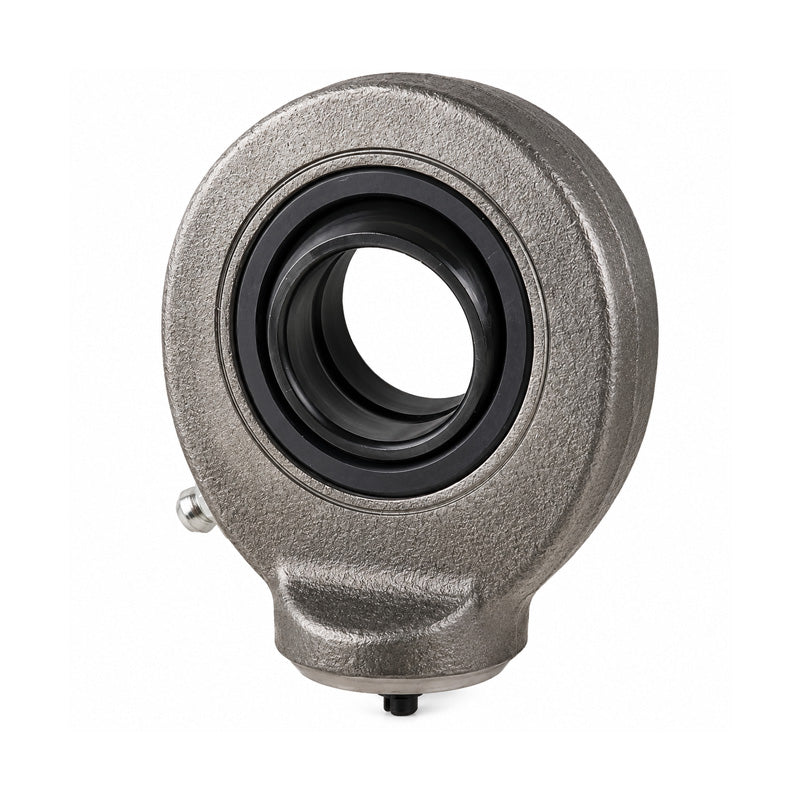

Durbal DGK30DO Maintenance Required Hydraulic Rod End with Weld Relief and Dowel Pin
- Regular price
- €31.19 ex VAT
- Sale price
- €31,19
- Regular price
-
Quantity Price Breaks
Durbal DGK30DO Maintenance Required Hydraulic Rod End with Weld Relief and Dowel Pin
- Regular price
- €31.19 ex VAT
- Sale price
- €31,19
- Regular price
-
Description
DURBAL Maintenance Required Female Hydraulic-Rod Ends with Pressed Spherical-plain Bearing (Round Welding Slope and Dowel Pin): Threaded female hydraulic rod end consisting of a forged, weldable steel housing with a steel, hardened, ground, phosphated outer ring with single split, oil groove and drill holes and a steel joint ball (Outer ring has a split from size 15) . Used for heavy static or changing loads, shock loads. Suitable for the fixing of piston rod ends and hydraulic cylinder bases. Rod ends from size 25 can be greased subsequently by means of a conical grease nipple. Hydraulic rod ends are fixed as standard with maintenance required DGE_E (size 10, 12) and DGE_ES (size 15-80) radial-spherical-plain bearings; with round welding stud and dowel pin. Temperature range -40 deg C to +200 deg C.

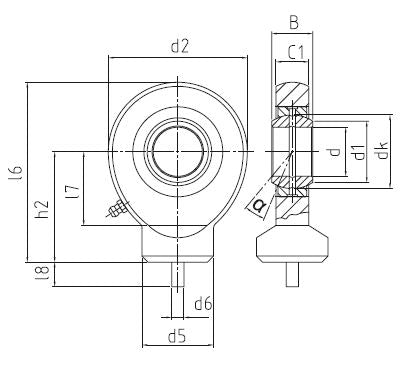

Technical
| d | = | 30mm |
| d1 | = | 34.2mm |
| d2 | = | 73mm |
| d5 | = | 40mm |
| d6 | = | 4mm |
| dk | = | 40.7mm |
| B | = | 22mm |
| C1 | = | 19mm |
| l6 | = | 87.5mm |
| l7 | = | 37.5mm |
| l8 | = | 6mm |
| h2 | = | 51mm |
| Tilt angle & | = | alpha |
| = | 6 deg | |
| Weight | = | 0.64kg |
| Basic Load Rating dyn C | = | 61 kN |
| Basic Load Rating stat Co | = | 76 kN |
| Radial Clearance CN | = | 8-100 & |
| micro | = | m |
