SKU: DKR45-12-19-OPF-FLEX

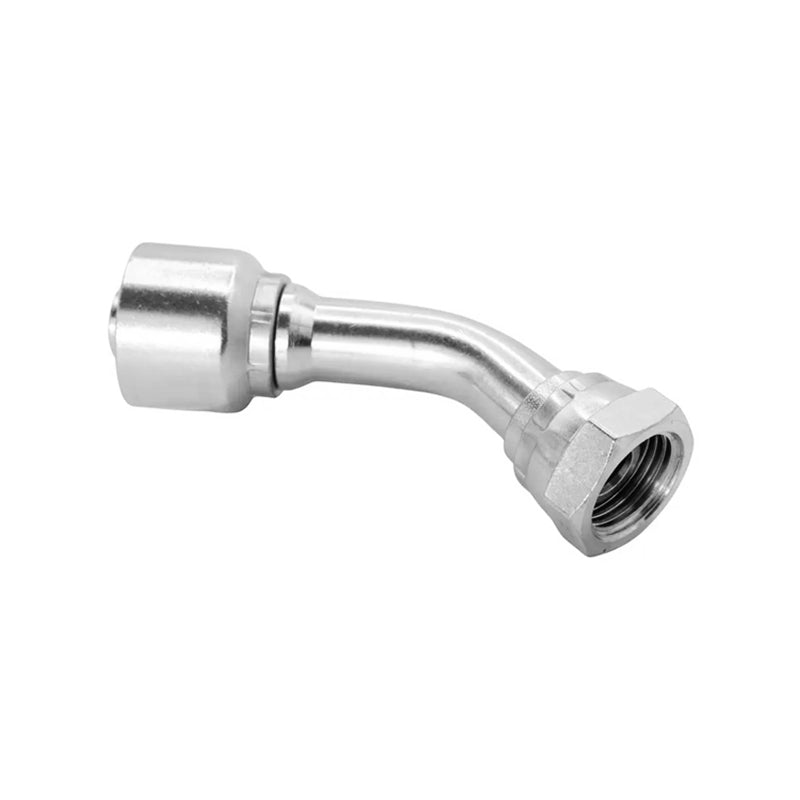

FLEXEQUIP 3/4 inch BSP Female One Piece Hose Fitting with 45 Degree Angle 60 Degree Cone and 32mm Crimp Nut - Allow 2-3 Days
- Regular price
- €15.18 ex VAT
- Sale price
- €15,18
- Regular price
-
Quantity Price Breaks
FLEXEQUIP 3/4 inch BSP Female One Piece Hose Fitting with 45 Degree Angle 60 Degree Cone and 32mm Crimp Nut - Allow 2-3 Days
- Regular price
- €15.18 ex VAT
- Sale price
- €15,18
- Regular price
-
Description
FLEXEQUIP One Piece Female Hose Fittings with 45 Degree Angle and Crimp Nut: These hydraulic fittings are designed for secure and leak-free connections in hydraulic systems. The BSP refers to the British Standard Pipe thread size, commonly used in hydraulic and pneumatic applications. As a one-piece hose fitting, it simplifies installation by eliminating the need for separate components like inserts or ferrules. The fitting features a 45-degree angle, ideal for routing hoses in tight spaces. The 60-degree cone provides a reliable sealing surface to ensure a secure, high-pressure seal, essential for preventing fluid leakage. The crimp nut allows for easy tightening, ensuring a strong and durable connection through a firm, crimped bond.
Benefits: Leak-free connections, simplified installation, secure and durable connections

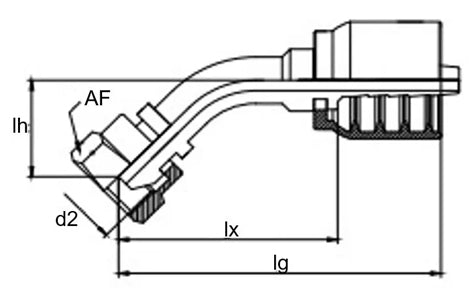

Technical
| Thread (d2) | = | 3/4 inch |
| Hose Bore | = | 3/4 inch |
| Hose Bore | = | 19mm |
| Total Length (lg) | = | 85mm |
| Cut Off (lx) | = | 59mm |
| Length (lh) | = | 25mm |
| Nut Size (SW) | = | 32mm |
| Angle | = | 45 degrees |
| Cone Angle | = | 60 degrees |
| Material | = | Zinc-Nickel Coated Steel |
| Weight | = | 0.176 kg |
