SKU: DL15/28-28X62X39

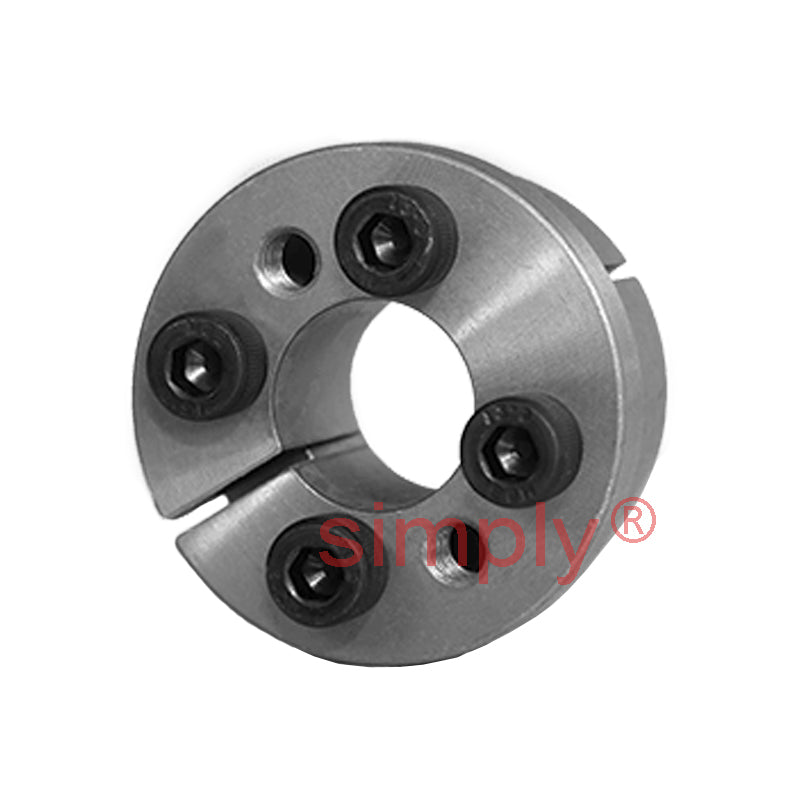

Major Branded DL15/28 Steel DRIVELOCK Bush 28x62x39mm - Allow 2-3 Days
- Regular price
- €16.49 ex VAT
- Sale price
- €16,49
- Regular price
-
Not in stock
Quantity Price Breaks
3
€14.68
5
€13.85
9
€13.69
19
€13.52
49
€13.36
74
€13.19
99
€12.37
199
€12.20
249
€12.04
499
€11.87
999
€11.54
SKU:
DL15/28-28X62X39
Major Branded DL15/28 Steel DRIVELOCK Bush 28x62x39mm - Allow 2-3 Days
- Regular price
- €16.49 ex VAT
- Sale price
- €16,49
- Regular price
-
Description
DRIVELOCK 15 Bushes: These bushes are self-centering components designed for secure shaft-hub connections, ideal for light to moderate-duty applications with torque capacities ranging from 282 to 2,700 Nm. They accommodate bore sizes from 14mm to 50mm and are available in metric and imperial sizes. Their self-centering design ensures precise alignment, reducing wear and vibration to extend equipment lifespan.
Benefits: Suitable for moderate applications, self-centering for precision, versatility in bore sizes

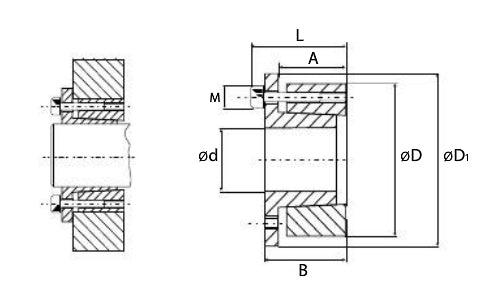

Technical
| Material | = | Steel |
| d (h8) | = | 28mm |
| D | = | 55mm |
| D1 | = | 62mm |
| M (screws) | = | M8 |
| L | = | 39mm |
| B | = | 31mm |
| A | = | 22mm |
| Ts | = | 41 Nm |
| T | = | 549 Nm |
| F | = | 35 kN |
| p | = | 118 N/mm2 |
| Shaft | = | h8 |
| Hub | = | H8 |
| Weight Kg | = | 0.001 kg |
