SKU: DL16/90-90X139X50

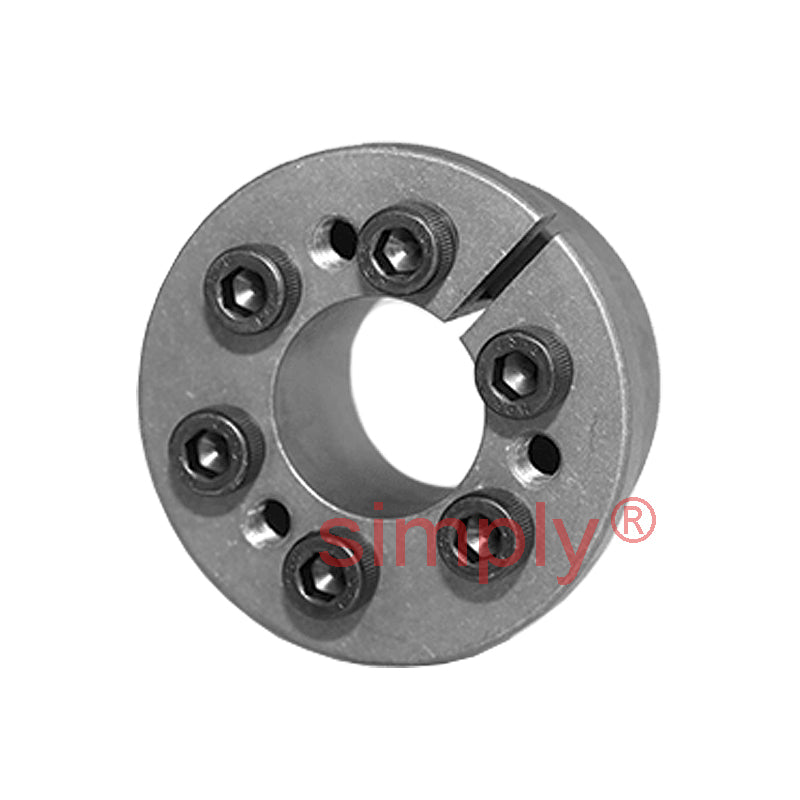

Major Branded DL16/90 Steel DRIVELOCK Bush 90x139x50mm - Allow 2-3 Days
- Regular price
- €46.42 ex VAT
- Sale price
- €46,42
- Regular price
-
Not in stock
Quantity Price Breaks
3
€41.31
5
€38.99
9
€38.53
19
€38.06
49
€37.60
74
€37.14
99
€34.82
199
€34.35
249
€33.89
499
€33.42
999
€32.49
SKU:
DL16/90-90X139X50
Major Branded DL16/90 Steel DRIVELOCK Bush 90x139x50mm - Allow 2-3 Days
- Regular price
- €46.42 ex VAT
- Sale price
- €46,42
- Regular price
-
Description
DRIVELOCK 16 Bushes: These bushes are self-centering components designed for secure shaft-hub connections in industrial applications. They handle high torques from 264 to 37,000 Nm, making them ideal for heavy-duty use. Available in bore sizes from 18mm to 180mm, with optional imperial sizes, these bushes offer flexibility for various shaft diameters. Their self-centering design ensures precise alignment, minimizing stress and vibration to enhance machinery performance and durability.
Benefits: High torque capacity, self-centering design, versatility in bore sizes

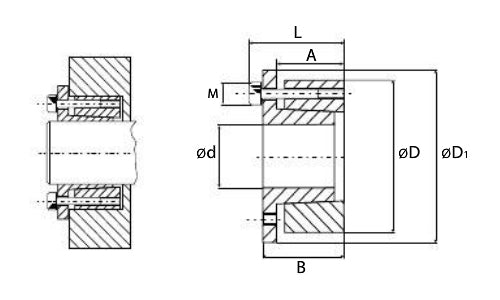

Technical
| Material | = | Steel |
| d (h8) | = | 90mm |
| D | = | 130mm |
| D1 | = | 139mm |
| M (screws) | = | M10 |
| L | = | 50mm |
| B | = | 40mm |
| A | = | 30mm |
| Ts | = | 83 Nm |
| T | = | 6960 Nm |
| F | = | 155 kN |
| p | = | 137 N/mm2 |
| Shaft | = | h8 |
| Hub | = | H8 |
| Weight Kg | = | 2.2 kg |
