SKU: DL61/12SS-12X22X15.5

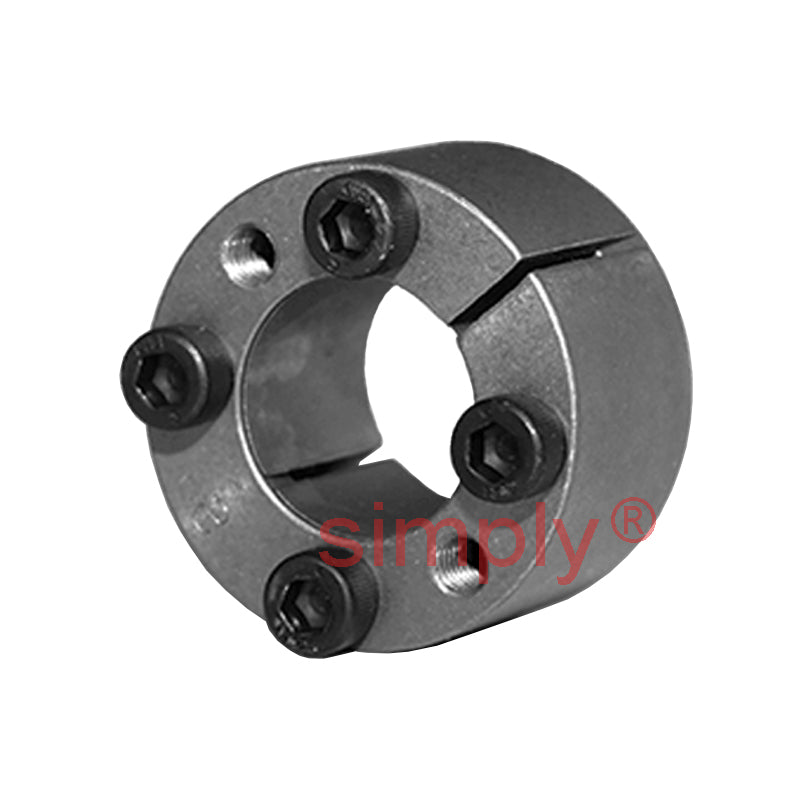

Major Branded DL61/12SS Stainless Steel DRIVELOCK Bush 12x22x15.5mm - Allow 2-3 Days
- Regular price
- €29.86 ex VAT
- Sale price
- €29,86
- Regular price
-
Quantity Price Breaks
Major Branded DL61/12SS Stainless Steel DRIVELOCK Bush 12x22x15.5mm - Allow 2-3 Days
- Regular price
- €29.86 ex VAT
- Sale price
- €29,86
- Regular price
-
Description
DRIVELOCK 61 Stainless Bushes: These bushes are engineered from high-grade stainless steel (303/304), providing superior corrosion resistance and durability. Designed for low torque applications ranging from 3 to 400 Nm, these bushes feature a self-centering mechanism that ensures precise alignment between the shaft and hub. They are available in bore sizes from 6mm to 40mm, with options for imperial sizes upon request. This combination of self-centering accuracy and robust stainless steel construction makes DRIVELOCK 61 Bushes ideal for reliable performance in various industrial and machinery settings.
Benefits: Corrosion resistance, self-centering precision, versatility in bore sizes

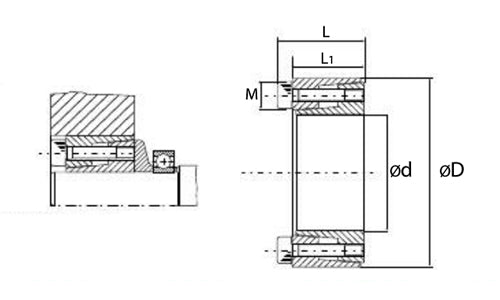

Technical
| Material | = | Stainless Steel |
| d (h8) | = | 12mm |
| D | = | 22mm |
| L1 | = | 13mm |
| L | = | 15.5mm |
| M (screws) | = | M2.5 |
| Ts | = | 0.5 Nm |
| T | = | 7 Nm |
| F | = | 1.2 kN |
| p | = | 15 N/mm2 |
| Shaft | = | h8 |
| Hub | = | H8 |
| Weight Kg | = | 0.02 kg |
