SKU: DSIL06-T/K-DURB

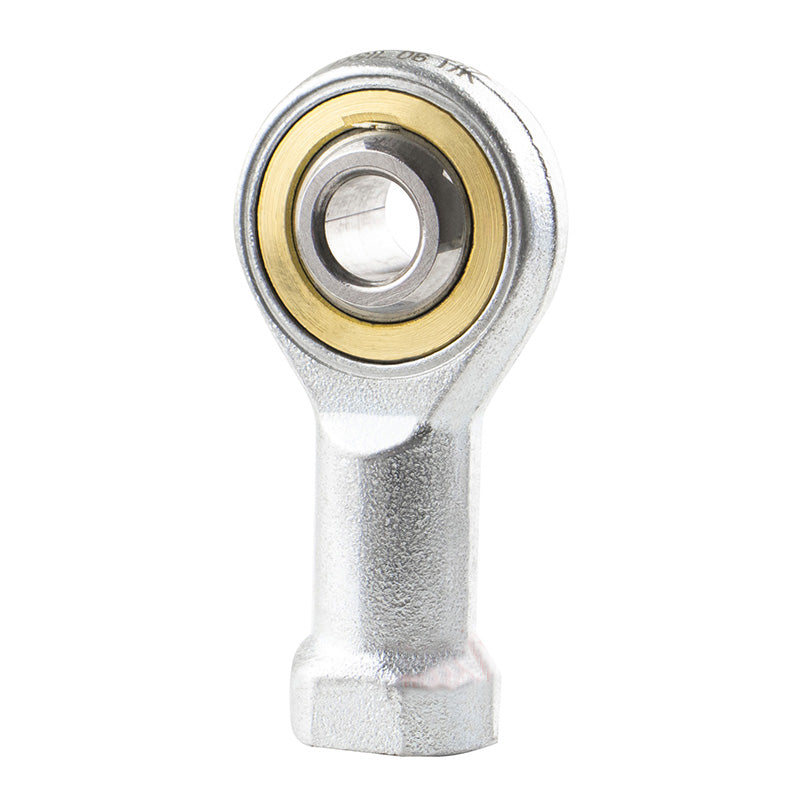

Durbal DSIL06-T/K Maintenance Free Left Hand Metric Steel / PTFE Lined Female Rod End M6 Thread
- Regular price
- €22.28 ex VAT
- Sale price
- €22,28
- Regular price
-
Quantity Price Breaks
Durbal DSIL06-T/K Maintenance Free Left Hand Metric Steel / PTFE Lined Female Rod End M6 Thread
- Regular price
- €22.28 ex VAT
- Sale price
- €22,28
- Regular price
-
Description
DURBAL Standard Female Rod Ends with Pressed Spherical-Plain Bearing: Threaded female rod end consisting of a galvanised, forged, heat-treated steel housing with a bearing brass outer ring lined with bronze - PTFE composite and a steel joint ball bearing. Suitable for use in situations of low speeds and dynamic loads. Made of forged and heat-treated steel, which protects against corrosion by galvanisation. Sliding combination: bearing brass with inset sliding film of bronze–PTFE compound material. Connection dimensions in accordance with DIN ISO 8139 for pneumatic cylinders. Temperature range: -40 deg C to +200 deg C.
Technical
| Thread Direction | = | Left |
| d | = | 6mm |
| d1 | = | 8.9mm |
| d2 | = | 20mm |
| d3 | = | 10mm |
| d4 | = | 13mm |
| dk | = | 12.7mm |
| G (Thread) | = | M6mm |
| B | = | 9mm |
| C1 | = | 6.75mm |
| l3 | = | 12mm |
| l4 | = | 40mm |
| l5 | = | 5mm |
| l7 | = | 11mm |
| W | = | 11mm |
| h1 | = | 30mm |
| tilt angle & | = | alpha |
| = | 13 deg | |
| weight | = | 0.022kg |
| basic load rating dyn C | = | 3.7 kN |
| basic load rating stat Co | = | 6.2 kN |
| radial clearance CN | = | 0-32 & |
| micro | = | m |
