SKU: EA17-EU

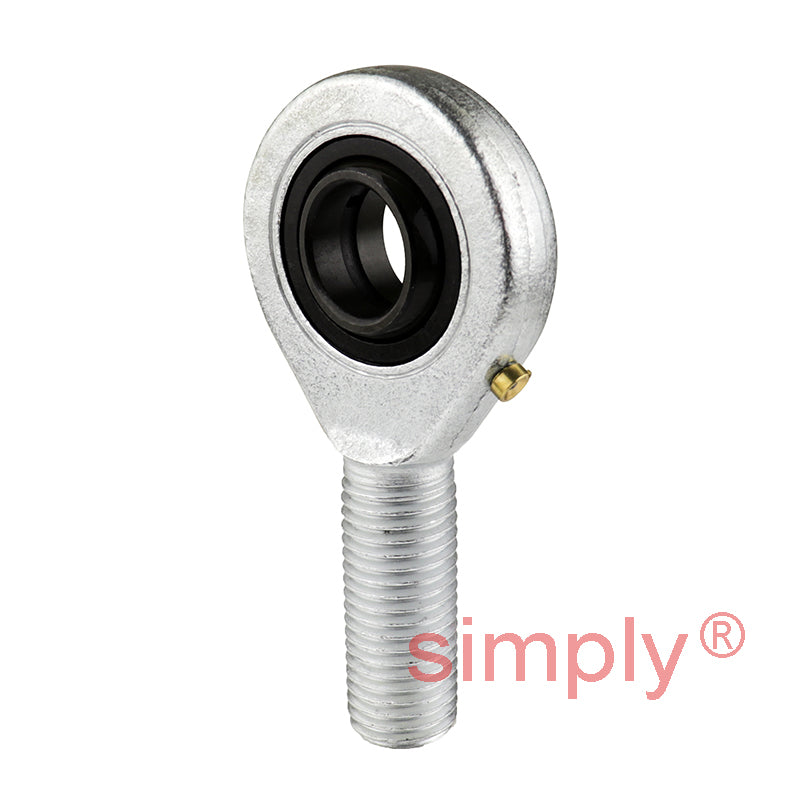

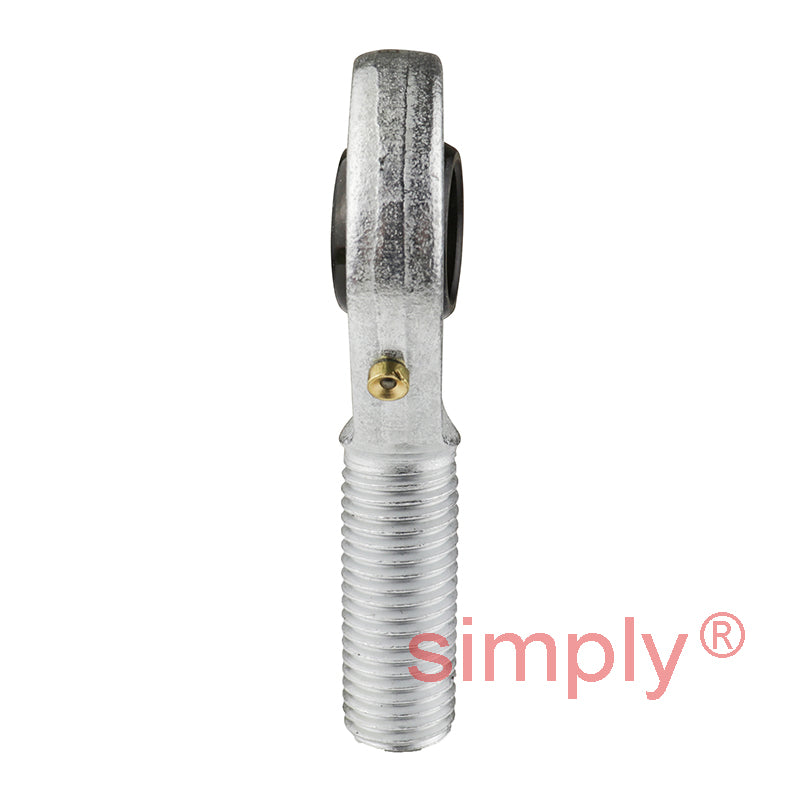

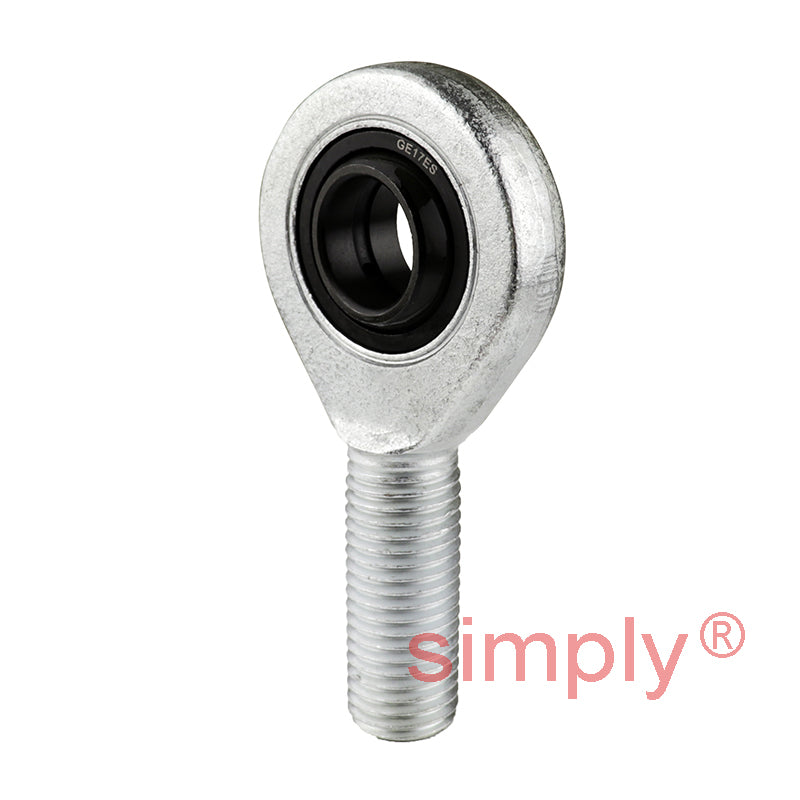

Budget EA17 Right Hand Steel / Steel Lined Plain Male Rod End 17mm Bore M16 Thread
- Regular price
- €17.10 ex VAT
- Sale price
- €17,10
- Regular price
-
In stock
Quantity Price Breaks
10
€15.22
19
€14.36
29
€14.19
39
€14.02
49
€13.85
74
€13.68
99
€12.83
199
€12.65
249
€12.48
499
€12.31
999
€11.97
SKU:
EA17-EU
Budget EA17 Right Hand Steel / Steel Lined Plain Male Rod End 17mm Bore M16 Thread
- Regular price
- €17.10 ex VAT
- Sale price
- €17,10
- Regular price
-
Description
EA Series Steel Male Plain Rod Ends: These linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways.
Benefits: Adjustable clearance, low friction, low maintenance, cost effective solution.
Benefits: Adjustable clearance, low friction, low maintenance, cost effective solution.
Technical
| D | = | 17mm |
| B | = | 14mm |
| M | = | 11.5mm |
| A | = | 46mm |
| G (Thread Size) | = | M16 |
| F | = | 69mm |
| GL | = | 36mm |
| L | = | 92mm |
| Ball Diameter | = | 25mm |
| a& | = | deg |
| angle | = | 10& |
| deg | = | |
| Dynamic Load Rating | = | 21 kN |
| Static Load Rating | = | 45 kN |
| Weight | = | 0.172 kg |
