SKU: EF12-60-501-DURB
Durbal EF12-60-501 Maintenance Free Right Hand Metric Stainless Steel / PTFE Lined Female Rod End M12 Thread - Allow 2-3 Days
- Regular price
- €23.11 ex VAT
- Sale price
- €23,11
- Regular price
-
Quantity Price Breaks
Durbal EF12-60-501 Maintenance Free Right Hand Metric Stainless Steel / PTFE Lined Female Rod End M12 Thread - Allow 2-3 Days
- Regular price
- €23.11 ex VAT
- Sale price
- €23,11
- Regular price
-
Description

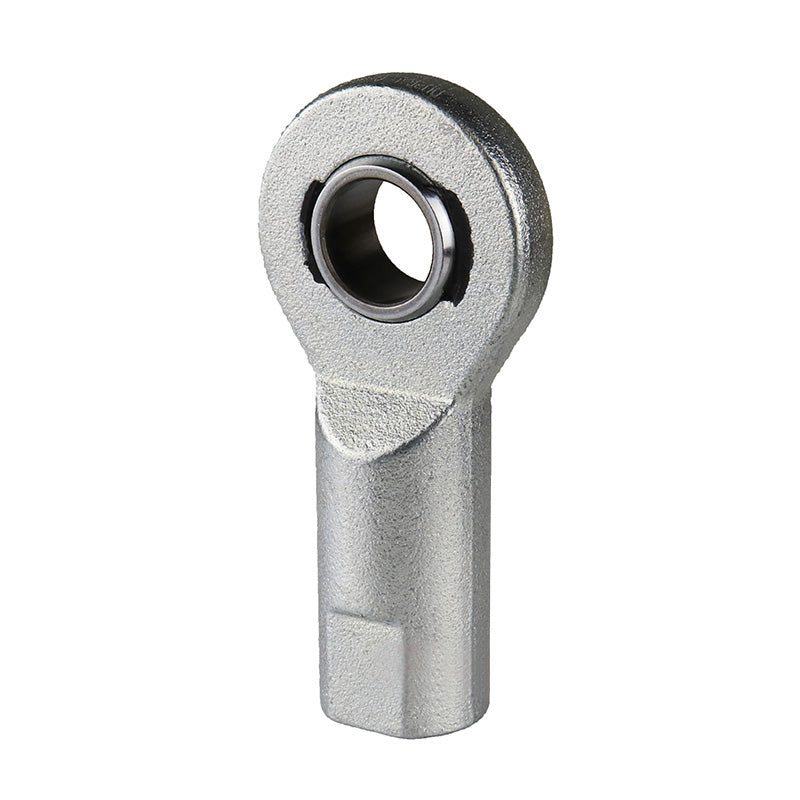

DURBAL Heavy-Duty Stainless Steel Female Rod Ends with Integral Spherical-Plain Bearing: Threaded female rod end consisting of a forged, hardened and electropolished stainless steel housing with a polyamide-PTFE-fibreglass-compound race and a stainless steel joint ball bearing. DURBAL-Glide (race) made of polyamide-PTFE-glass fibre compound, maintenance-free, encapsulates penetrating foreign particles. This fact and the greater overlay thickness compared to other sliding materials assure longer durability. Made of forged stainless steel, extremely high loads resistant and surface electropolished which ensures you a very high corrosion resistance. Connection dimensions in accordance with DIN ISO 8139 for pneumatic cylinders. Temperature range: -30 deg C to +60 deg C.
Benefits: Radial clearance 0 – 10 µm, Suitable for use with impact loads, For use with small swivelling movements and at low speeds, Free from non-ferrous metals.
