SKU: EFN10-20-501-DURB

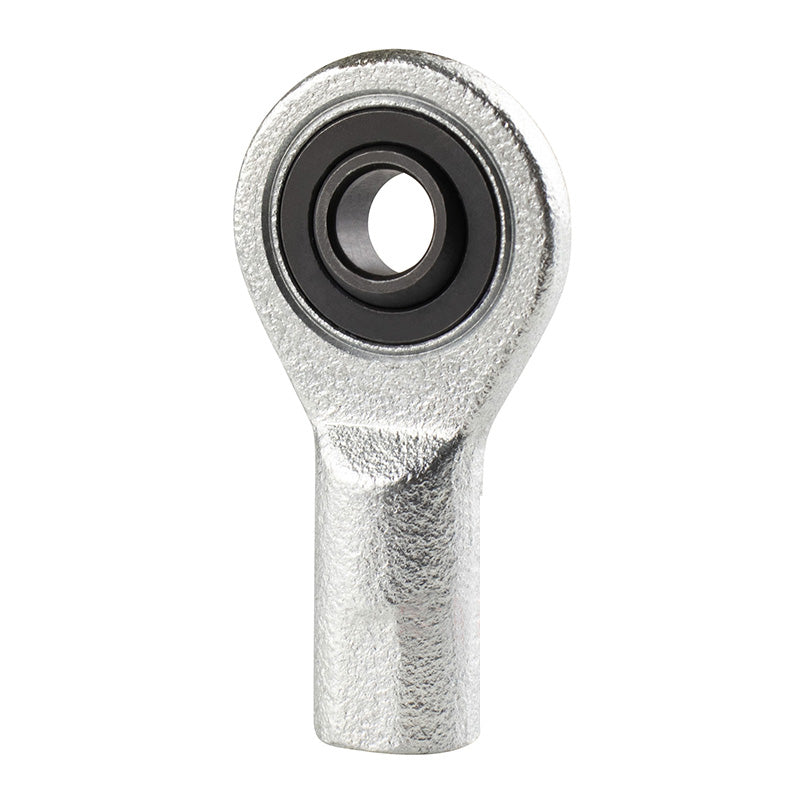

Durbal EFN10-20-501 Maintenance Required Right Hand Metric Steel Female Rod End M10 Thread
- Regular price
- €24.22 ex VAT
- Sale price
- €24,22
- Regular price
-
In stock
Quantity Price Breaks
10
€21.56
19
€20.34
29
€20.10
39
€19.86
49
€19.62
74
€19.38
99
€18.17
199
€17.92
249
€17.68
499
€17.44
999
€16.95
SKU:
EFN10-20-501-DURB
Durbal EFN10-20-501 Maintenance Required Right Hand Metric Steel Female Rod End M10 Thread
- Regular price
- €24.22 ex VAT
- Sale price
- €24,22
- Regular price
-
Technical
| Thread Direction | = | -501 (Right) |
| d | = | 10mm |
| G (Thread) | = | M10mm |
| B | = | 9mm |
| C1 | = | 6mm |
| h1 | = | 43mm |
| d1 | = | 13mm |
| d2 | = | 28mm |
| d3 | = | 16mm |
| dk | = | 16mm |
| l3 | = | 20mm |
| l4 | = | 57mm |
| l5 | = | 10.5mm |
| l7 | = | 13mm |
| W | = | 14mm |
| tilt angle & | = | alpha |
| = | 12 deg | |
| weight | = | 0.061kg |
| basic load rating dyn C | = | 6.4 kN |
| basic load rating stat Co | = | 17.8 kN |
| radial clearance CN | = | 32-68 & |
| micro | = | m |
