SKU: EFN15-20-502-DURB

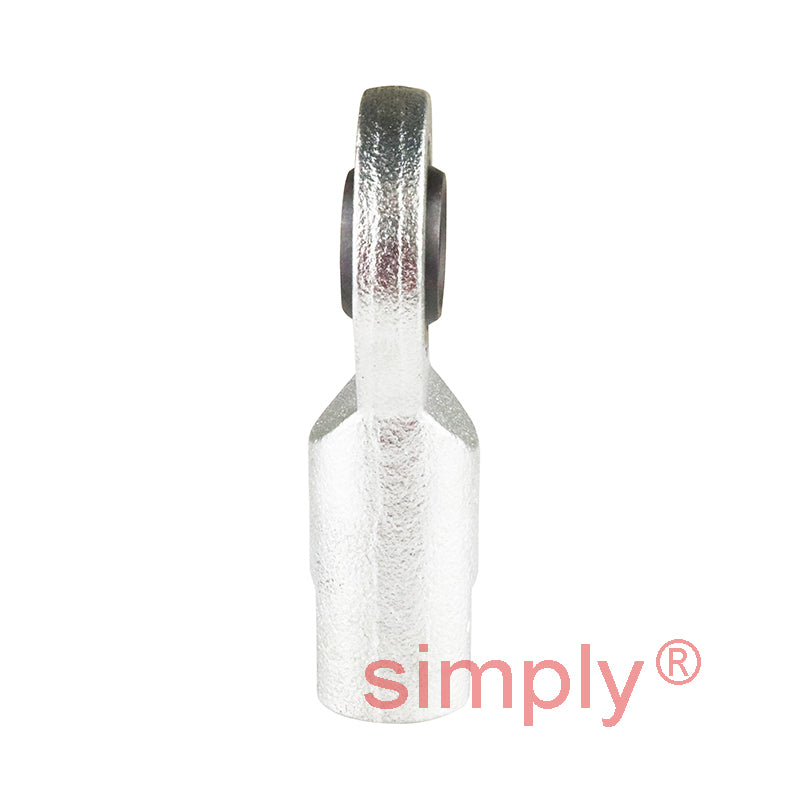

Durbal EFN15-20-502 Maintenance Required Left Hand Metric Steel Female Rod End M14 Thread
- Regular price
- €36.82 ex VAT
- Sale price
- €36,82
- Regular price
-
In stock
Quantity Price Breaks
10
€32.77
19
€30.93
29
€30.56
39
€30.19
49
€29.82
74
€29.46
99
€27.62
199
€27.25
249
€26.88
499
€26.51
999
€25.77
SKU:
EFN15-20-502-DURB
Durbal EFN15-20-502 Maintenance Required Left Hand Metric Steel Female Rod End M14 Thread
- Regular price
- €36.82 ex VAT
- Sale price
- €36,82
- Regular price
-
Technical
| Thread Direction | = | -502 (Left) |
| d | = | 15mm |
| G (Thread) | = | M14mm |
| B | = | 12mm |
| C1 | = | 9mm |
| h1 | = | 61mm |
| d1 | = | 18mm |
| d2 | = | 38mm |
| d3 | = | 22mm |
| dk | = | 22mm |
| l3 | = | 25mm |
| l4 | = | 80mm |
| l5 | = | 12.5mm |
| l7 | = | 18mm |
| W | = | 19mm |
| tilt angle & | = | alpha |
| = | 8 deg | |
| weight | = | 0.18kg |
| basic load rating dyn C | = | 13.4 kN |
| basic load rating stat Co | = | 36 kN |
| radial clearance CN | = | 40-82 & |
| micro | = | m |
