SKU: EFN20-20-502-DURB

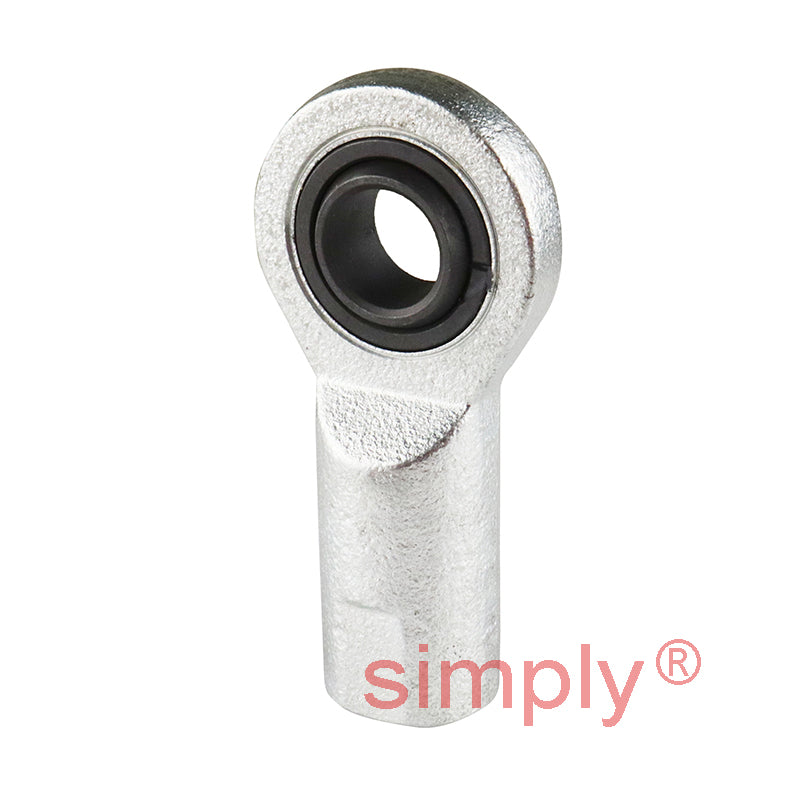

Durbal EFN20-20-502 Maintenance Required Left Hand Metric Steel Female Rod End M20x1.5 Thread
- Regular price
- €50.14 ex VAT
- Sale price
- €50,14
- Regular price
-
In stock
Quantity Price Breaks
10
€44.62
19
€42.12
29
€41.62
39
€41.11
49
€40.61
74
€40.11
99
€37.61
199
€37.10
249
€36.60
499
€36.10
999
€35.10
SKU:
EFN20-20-502-DURB
Durbal EFN20-20-502 Maintenance Required Left Hand Metric Steel Female Rod End M20x1.5 Thread
- Regular price
- €50.14 ex VAT
- Sale price
- €50,14
- Regular price
-
Technical
| Thread Direction | = | -502 (Left) |
| d | = | 20mm |
| G (Thread) | = | M20x1.5mm |
| B | = | 16mm |
| C1 | = | 12mm |
| h1 | = | 77mm |
| d1 | = | 24mm |
| d2 | = | 51mm |
| d3 | = | 28mm |
| dk | = | 29mm |
| l3 | = | 33mm |
| l4 | = | 102.5mm |
| l5 | = | 17.5mm |
| l7 | = | 23mm |
| W | = | 24mm |
| tilt angle & | = | alpha |
| = | 9 deg | |
| weight | = | 0.35kg |
| basic load rating dyn C | = | 25.2 kN |
| basic load rating stat Co | = | 60 kN |
| radial clearance CN | = | 40-82 & |
| micro | = | m |
