SKU: EFN35-20-502-DURB

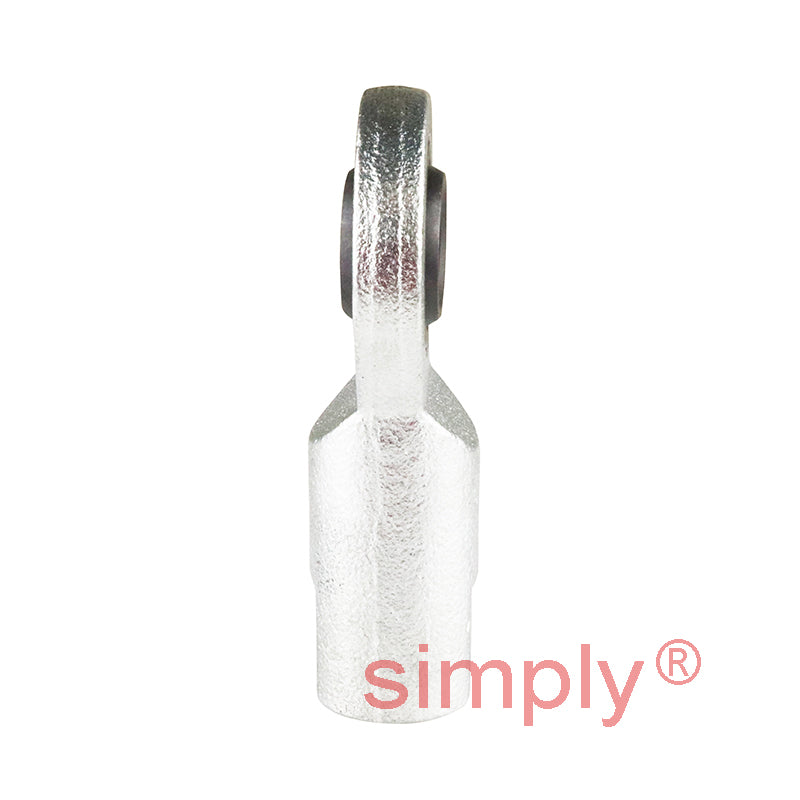

Durbal EFN35-20-502 Maintenance Required Left Hand Metric Steel Female Rod End M36x3 Thread
- Regular price
- €134.43 ex VAT
- Sale price
- €134,43
- Regular price
-
In stock
Quantity Price Breaks
10
€119.64
19
€112.92
29
€111.58
39
€110.23
49
€108.89
74
€107.54
99
€100.82
199
€99.48
249
€98.13
499
€96.79
999
€94.10
SKU:
EFN35-20-502-DURB
Durbal EFN35-20-502 Maintenance Required Left Hand Metric Steel Female Rod End M36x3 Thread
- Regular price
- €134.43 ex VAT
- Sale price
- €134,43
- Regular price
-

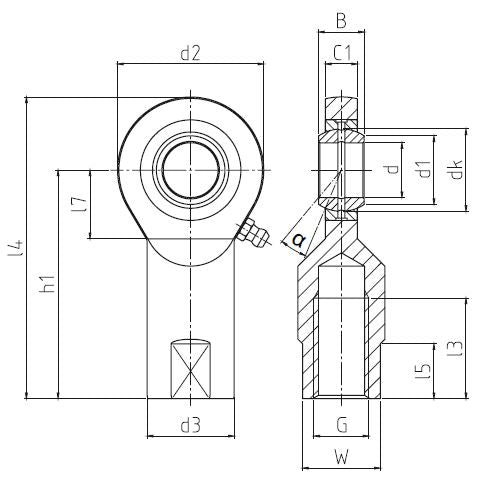

Technical
| Thread Direction | = | -502 (Left) |
| d | = | 35mm |
| G (Thread) | = | M36x3mm |
| B | = | 25mm |
| C1 | = | 20mm |
| h1 | = | 125mm |
| d1 | = | 39mm |
| d2 | = | 82mm |
| d3 | = | 51mm |
| dk | = | 47mm |
| l3 | = | 61mm |
| l4 | = | 166mm |
| l5 | = | 24.5mm |
| l7 | = | 38mm |
| W | = | 41mm |
| tilt angle & | = | alpha |
| = | 6 deg | |
| weight | = | 1.3kg |
| basic load rating dyn C | = | 70.4 kN |
| basic load rating stat Co | = | 146 kN |
| radial clearance CN | = | 30-100 & |
| micro | = | m |
