SKU: ES204G2-SNR

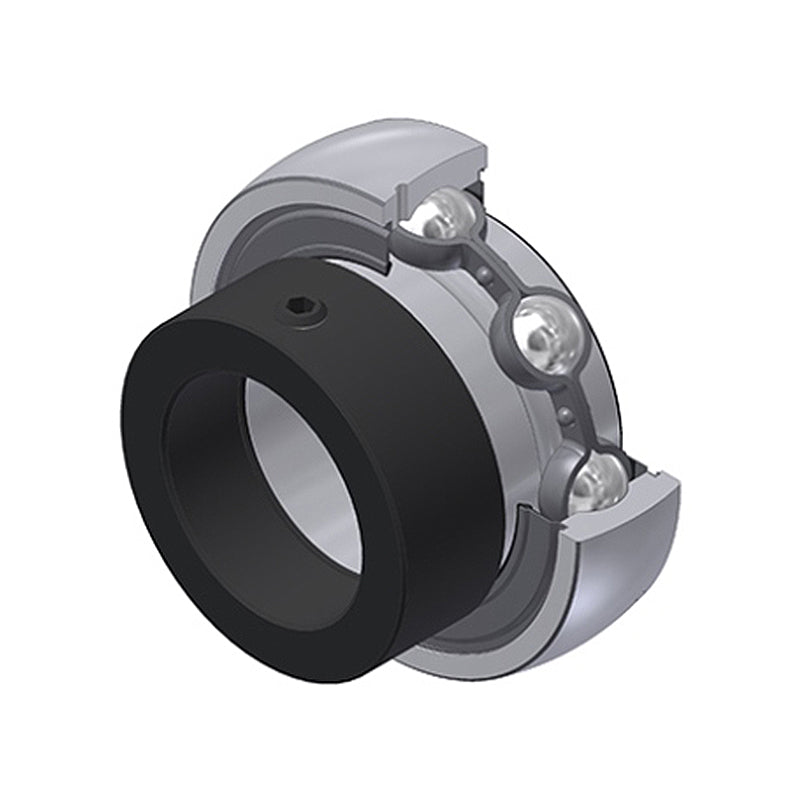

SNR ES204G2 Metric Flatback Spherical Outer Bearing Insert 20mm Bore 47mm Outside Diameter with Eccentric Collar
- Regular price
- €14.28 ex VAT
- Sale price
- €14,28
- Regular price
-
Quantity Price Breaks
SNR ES204G2 Metric Flatback Spherical Outer Bearing Insert 20mm Bore 47mm Outside Diameter with Eccentric Collar
- Regular price
- €14.28 ex VAT
- Sale price
- €14,28
- Regular price
-
Description
SNR ES Flatback Spherical Outer Bearing Insert with Eccentric Collar: This bearing insert is a standard version designed for various applications. Each steel insert features a single lip seal on both sides and a narrow inner ring design. It includes a zinc-coated sheet steel retainer with a vulcanized NBR seal, with the axially preloaded seal lip positioned behind a protective edge. Suitable for normal environmental conditions, this bearing insert supports medium to high rotation speeds.
Benefits: High-quality brand, high-performance, precision-engineered
Technical
| d | = | 20mm |
| D | = | 47mm |
| C | = | 14mm |
| B | = | 21.4mm |
| B1 | = | 30.9mm |
| B2 | = | 13.5mm |
| d1 | = | 32.4mm |
| S | = | 7.5mm |
| m | = | 5mm |
| C1 | = | 4mm |
| r min | = | 0.6mm |
| G | = | M6x1 |
| Wrench Size | = | 3mm |
| Set screw torque | = | 5.5 Nm |
| Min Temp | = | -20 deg C |
| Max Temp | = | 100 deg C |
| Dynamic load rating C | = | 12.8kN |
| Static load rating C0 | = | 6.7kN |
| Weight | = | 0.2kg |
