SKU: ES209G2-SNR

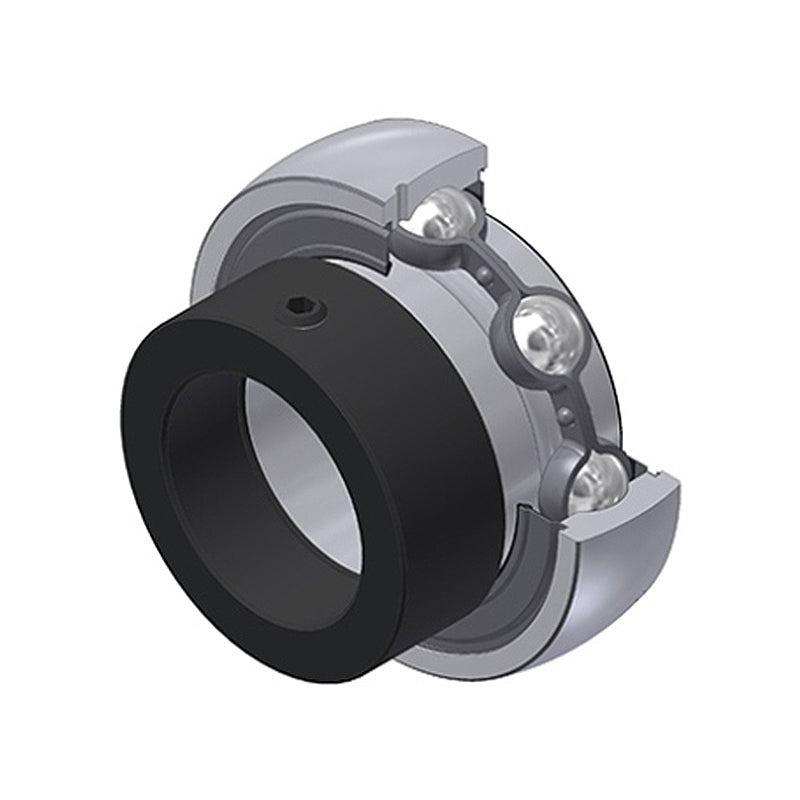

SNR ES209G2 Metric Flatback Spherical Outer Bearing Insert 45mm Bore 85mm Outside Diameter with Eccentric Collar
- Regular price
- €32.27 ex VAT
- Sale price
- €32,27
- Regular price
-
Quantity Price Breaks
SNR ES209G2 Metric Flatback Spherical Outer Bearing Insert 45mm Bore 85mm Outside Diameter with Eccentric Collar
- Regular price
- €32.27 ex VAT
- Sale price
- €32,27
- Regular price
-
Description
SNR ES Flatback Spherical Outer Bearing Insert with Eccentric Collar: This bearing insert is a standard version designed for various applications. Each steel insert features a single lip seal on both sides and a narrow inner ring design. It includes a zinc-coated sheet steel retainer with a vulcanized NBR seal, with the axially preloaded seal lip positioned behind a protective edge. Suitable for normal environmental conditions, this bearing insert supports medium to high rotation speeds.
Benefits: High-quality brand, high-performance, precision-engineered
Technical
| d | = | 45mm |
| D | = | 85mm |
| C | = | 19mm |
| B | = | 30.2mm |
| B1 | = | 43.7mm |
| B2 | = | 18.3mm |
| d1 | = | 62mm |
| S | = | 11mm |
| m | = | 6.5mm |
| C1 | = | 6.5mm |
| r min | = | 1.1mm |
| G | = | M8x1 |
| Wrench Size | = | 4mm |
| Set screw torque | = | 11.5 Nm |
| Min Temp | = | -20 deg C |
| Max Temp | = | 100 deg C |
| Dynamic load rating C | = | 31.9kN |
| Static load rating C0 | = | 20.8kN |
| Weight | = | 0.7kg |
