SKU: ESEHE204-SNR

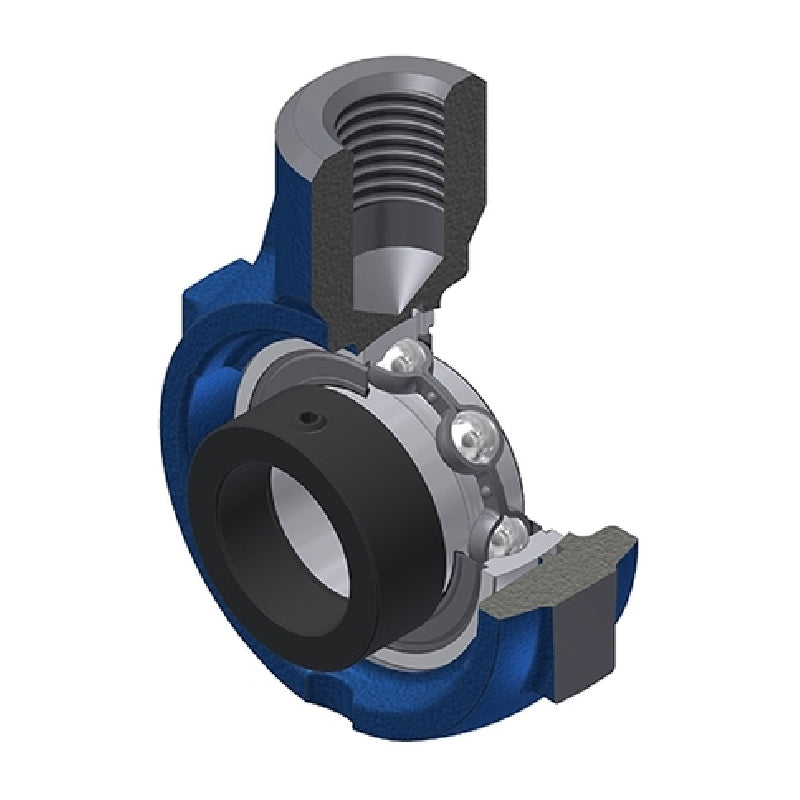

SNR ESEHE204 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days
- Regular price
- €27.21 ex VAT
- Sale price
- €27,21
- Regular price
-
Not in stock
Quantity Price Breaks
3
€24.22
4
€22.86
9
€22.58
19
€22.31
49
€22.04
99
€21.77
499
€20.41
999
€20.14
1999
€19.86
2999
€19.59
4999
€19.05
SKU:
ESEHE204-SNR
SNR ESEHE204 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days
- Regular price
- €27.21 ex VAT
- Sale price
- €27,21
- Regular price
-
Description
ESEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and include a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 20mm |
| A | = | 25mm |
| A2 | = | 30mm |
| B1 | = | 30.9mm |
| d1 | = | 32.4mm |
| E | = | 21mm |
| H | = | 65mm |
| L | = | 91mm |
| L1 | = | 58mm |
| L3 | = | 38mm |
| S | = | 7.5mm |
| G | = | R1/8& |
| Prime | = | |
| G1 | = | M16 |
| --- | = | Load rating |
| Dynamic load C | = | 12.8 kN |
| Static load C0 | = | 6.65 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 0.55 kg |
