SKU: ESEHE208-SNR

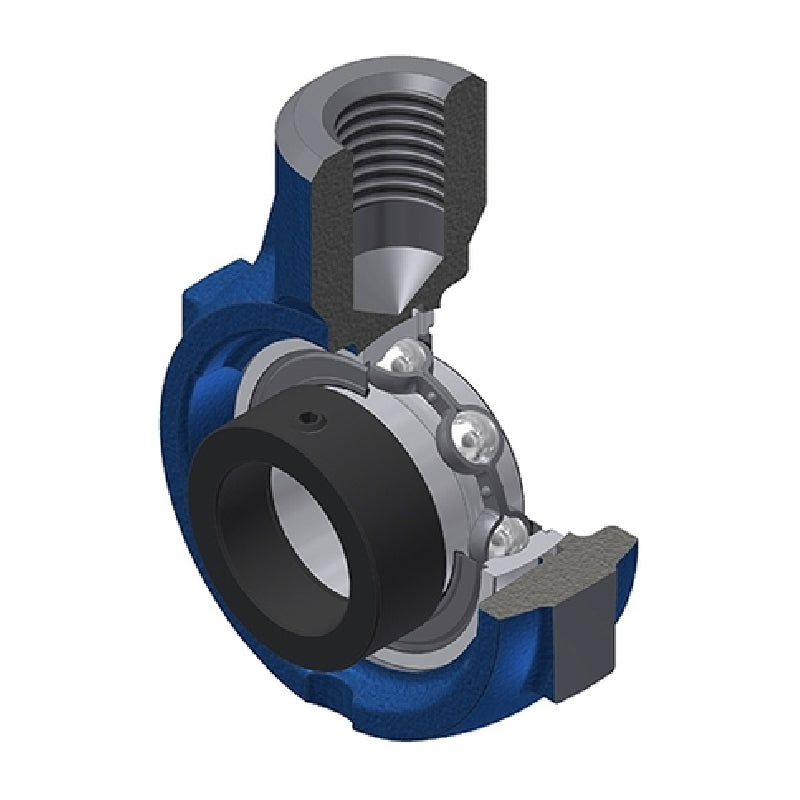

SNR ESEHE208 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days
- Regular price
- €45.78 ex VAT
- Sale price
- €45,78
- Regular price
-
Not in stock
Quantity Price Breaks
3
€40.74
4
€38.46
9
€38.00
19
€37.54
49
€37.08
99
€36.62
499
€34.34
999
€33.88
1999
€33.42
2999
€32.96
4999
€32.05
SKU:
ESEHE208-SNR
SNR ESEHE208 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days
- Regular price
- €45.78 ex VAT
- Sale price
- €45,78
- Regular price
-
Description
ESEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and include a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 40mm |
| A | = | 36mm |
| A2 | = | 40mm |
| B1 | = | 43.7mm |
| d1 | = | 58mm |
| E | = | 24mm |
| H | = | 100mm |
| L | = | 135mm |
| L1 | = | 85mm |
| L3 | = | 45mm |
| S | = | 11mm |
| G | = | R1/8& |
| Prime | = | |
| G1 | = | M24 |
| --- | = | Load rating |
| Dynamic load C | = | 29.6 kN |
| Static load C0 | = | 18.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 1.55 kg |
