SKU: ESEHE209-SNR

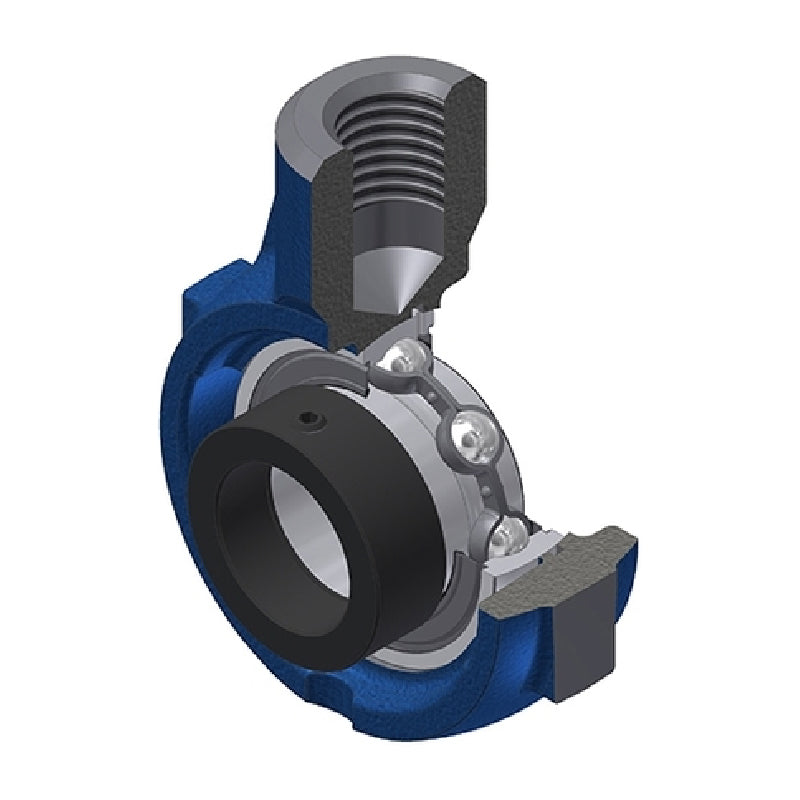

SNR ESEHE209 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
- Regular price
- €52.32 ex VAT
- Sale price
- €52,32
- Regular price
-
Not in stock
Quantity Price Breaks
3
€46.56
4
€43.95
9
€43.43
19
€42.90
49
€42.38
99
€41.86
499
€39.24
999
€38.72
1999
€38.19
2999
€37.67
4999
€36.62
SKU:
ESEHE209-SNR
SNR ESEHE209 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
- Regular price
- €52.32 ex VAT
- Sale price
- €52,32
- Regular price
-
Description
ESEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and include a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 45mm |
| A | = | 40mm |
| A2 | = | 40mm |
| B1 | = | 43.7mm |
| d1 | = | 62mm |
| E | = | 24mm |
| H | = | 110mm |
| L | = | 145mm |
| L1 | = | 90mm |
| L3 | = | 45mm |
| S | = | 11mm |
| G | = | R1/8& |
| Prime | = | |
| G1 | = | M24 |
| --- | = | Load rating |
| Dynamic load C | = | 31.85 kN |
| Static load C0 | = | 20.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 1.89 kg |
