SKU: ESFC202-SNR

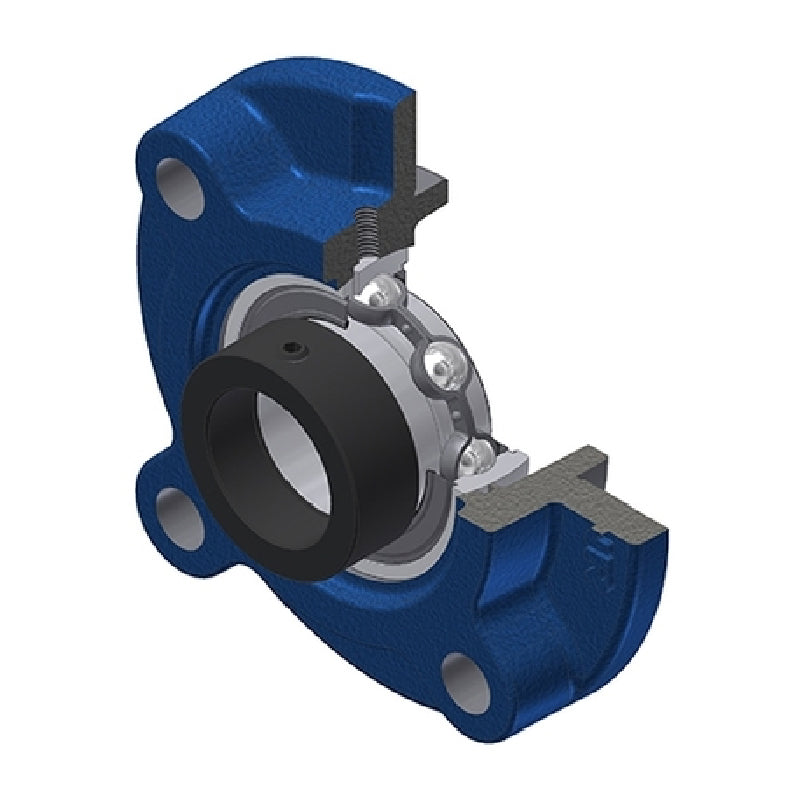

SNR ESFC202 Metric Four Bolt Cast Iron Round Flanged Housing with 15mm Eccentric Collar Insert
- Regular price
- €25.43 ex VAT
- Sale price
- €25,43
- Regular price
-
In stock
Quantity Price Breaks
3
€22.63
4
€21.36
9
€21.11
19
€20.85
49
€20.60
99
€20.34
499
€19.07
999
€18.82
1999
€18.56
2999
€18.31
4999
€17.80
SKU:
ESFC202-SNR
SNR ESFC202 Metric Four Bolt Cast Iron Round Flanged Housing with 15mm Eccentric Collar Insert
- Regular price
- €25.43 ex VAT
- Sale price
- €25,43
- Regular price
-
Description
ESFC200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 15mm |
| A | = | 23mm |
| A1 | = | 5mm |
| A2 | = | 32.1mm |
| A4 | = | 19mm |
| B | = | 19.1mm |
| B1 | = | 28.6mm |
| d1 | = | 27.2mm |
| e | = | 10mm |
| H3 | = | 55mm |
| J | = | 70mm |
| L | = | 90mm |
| N | = | 12mm |
| S | = | 6.5mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 9.55 kN |
| Static load C0 | = | 4.78 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 5.5 Nm |
| Mass | = | 0.5 kg |
