SKU: ESFC210-SNR

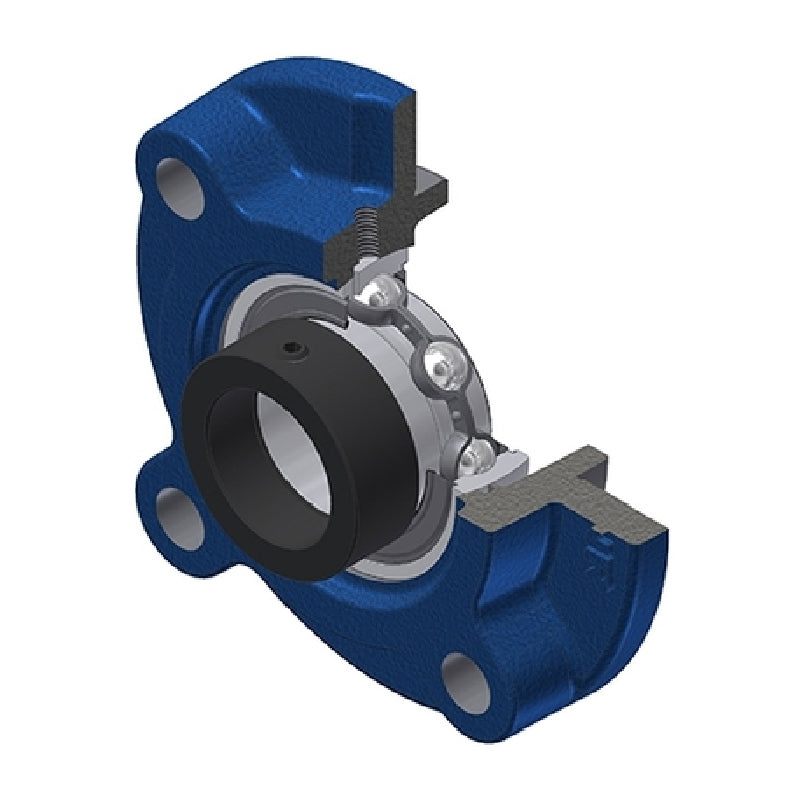

SNR ESFC210 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €59.95 ex VAT
- Sale price
- €59,95
- Regular price
-
Not in stock
Quantity Price Breaks
3
€53.36
4
€50.36
9
€49.76
19
€49.16
49
€48.56
99
€47.96
499
€44.96
999
€44.36
1999
€43.76
2999
€43.16
4999
€41.97
SKU:
ESFC210-SNR
SNR ESFC210 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €59.95 ex VAT
- Sale price
- €59,95
- Regular price
-
Description
ESFC200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 50mm |
| A | = | 40mm |
| A1 | = | 14mm |
| A2 | = | 42.7mm |
| A4 | = | 28mm |
| B | = | 30.2mm |
| B1 | = | 43.7mm |
| d1 | = | 67.2mm |
| e | = | 10mm |
| H3 | = | 110mm |
| J | = | 138mm |
| L | = | 165mm |
| N | = | 16mm |
| S | = | 11mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 35.1 kN |
| Static load C0 | = | 23.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 2.84 kg |
