SKU: ESFC211-SNR

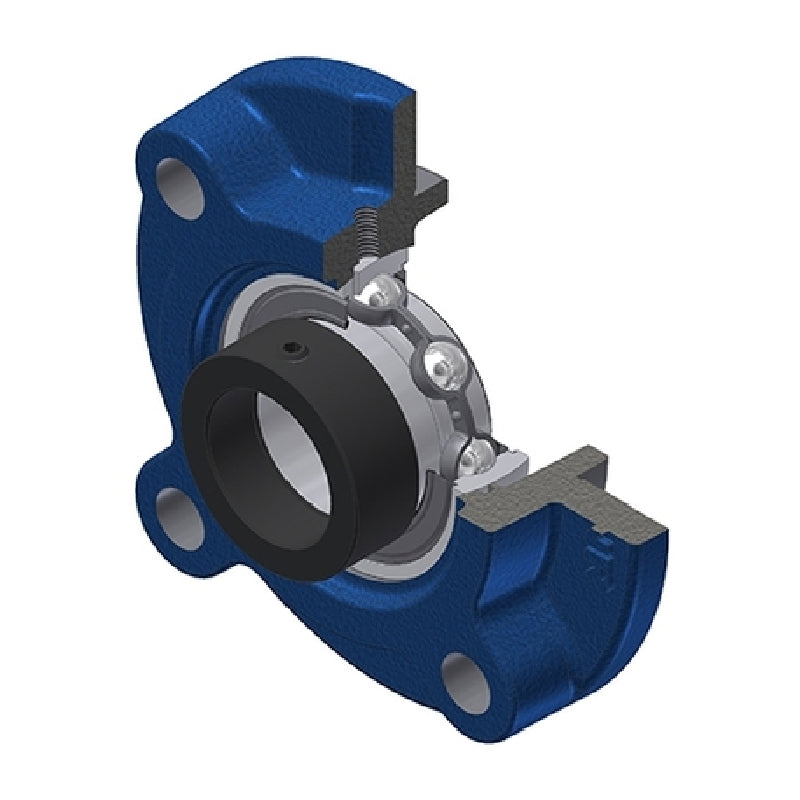

SNR ESFC211 Metric Four Bolt Cast Iron Round Flanged Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €63.94 ex VAT
- Sale price
- €63,94
- Regular price
-
Not in stock
Quantity Price Breaks
3
€56.91
4
€53.71
9
€53.07
19
€52.43
49
€51.79
99
€51.15
499
€47.96
999
€47.32
1999
€46.68
2999
€46.04
4999
€44.76
SKU:
ESFC211-SNR
SNR ESFC211 Metric Four Bolt Cast Iron Round Flanged Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €63.94 ex VAT
- Sale price
- €63,94
- Regular price
-
Description
ESFC200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 55mm |
| A | = | 42mm |
| A1 | = | 13mm |
| A2 | = | 49.4mm |
| A4 | = | 30mm |
| B | = | 32.5mm |
| B1 | = | 48.4mm |
| d1 | = | 74.5mm |
| e | = | 13mm |
| H3 | = | 125mm |
| J | = | 150mm |
| L | = | 185mm |
| N | = | 19mm |
| S | = | 12mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 43.55 kN |
| Static load C0 | = | 29.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 3.58 kg |
