SKU: ESFCE204-SNR

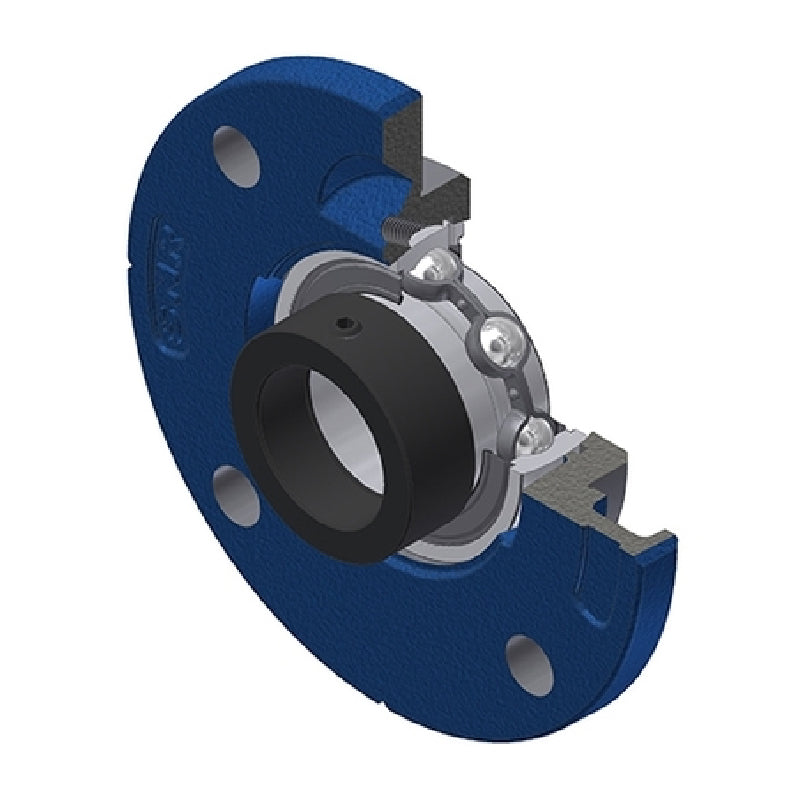

SNR ESFCE204 Metric Four Bolt Cast Iron Round Flanged Housing with 20mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €26.64 ex VAT
- Sale price
- €26,64
- Regular price
-
Not in stock
Quantity Price Breaks
3
€23.71
4
€22.38
9
€22.11
19
€21.84
49
€21.58
99
€21.31
499
€19.98
999
€19.71
1999
€19.45
2999
€19.18
4999
€18.65
SKU:
ESFCE204-SNR
SNR ESFCE204 Metric Four Bolt Cast Iron Round Flanged Housing with 20mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €26.64 ex VAT
- Sale price
- €26,64
- Regular price
-
Description
ESFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 20mm |
| A | = | 18mm |
| A1 | = | 8mm |
| A2 | = | 21.4mm |
| A3 | = | 2mm |
| B | = | 21.4mm |
| B1 | = | 30.9mm |
| d1 | = | 32.4mm |
| e | = | -2mm |
| H3 | = | 62mm |
| J | = | 78mm |
| L | = | 100mm |
| N | = | 9mm |
| S | = | 7.5mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 12.8 kN |
| Static load C0 | = | 6.65 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 5.5 Nm |
| Mass | = | 0.52 kg |
