SKU: ESFCE207-SNR

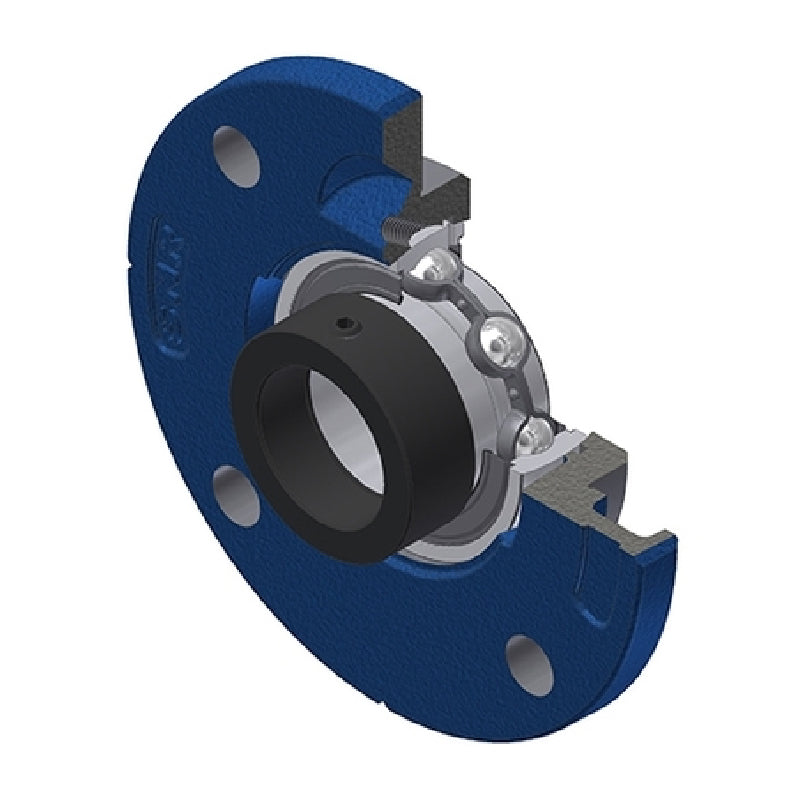

SNR ESFCE207 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Eccentric Collar Insert
- Regular price
- €39.12 ex VAT
- Sale price
- €39,12
- Regular price
-
In stock
Quantity Price Breaks
3
€34.82
4
€32.86
9
€32.47
19
€32.08
49
€31.69
99
€31.30
499
€29.34
999
€28.95
1999
€28.56
2999
€28.17
4999
€27.38
SKU:
ESFCE207-SNR
SNR ESFCE207 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Eccentric Collar Insert
- Regular price
- €39.12 ex VAT
- Sale price
- €39,12
- Regular price
-
Description
ESFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
Technical

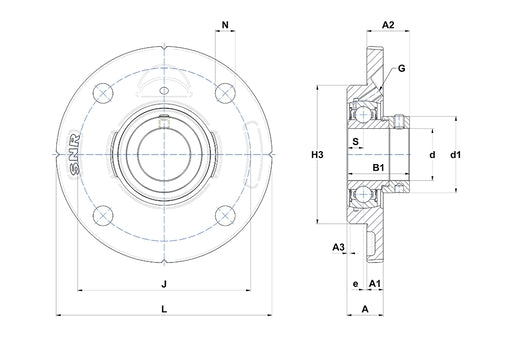

| --- | = | Dimensions |
| Shaft diameter | = | 35mm |
| A | = | 21mm |
| A1 | = | 10mm |
| A2 | = | 28.4mm |
| A3 | = | 2mm |
| B | = | 25.4mm |
| B1 | = | 38.9mm |
| d1 | = | 51.1mm |
| e | = | -1mm |
| H3 | = | 90mm |
| J | = | 110mm |
| L | = | 135mm |
| N | = | 11.5mm |
| S | = | 9.5mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 25.7 kN |
| Static load C0 | = | 15.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 1.27 kg |
