SKU: ESFCE212-SNR

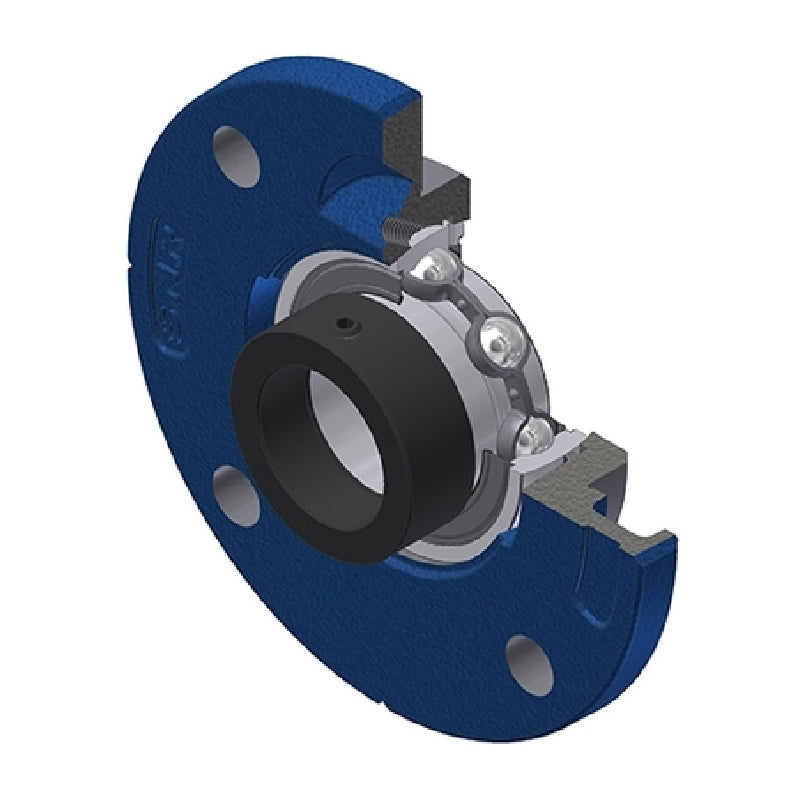

SNR ESFCE212 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €82.59 ex VAT
- Sale price
- €82,59
- Regular price
-
Not in stock
Quantity Price Breaks
3
€73.51
4
€69.38
9
€68.55
19
€67.72
49
€66.90
99
€66.07
499
€61.94
999
€61.12
1999
€60.29
2999
€59.46
4999
€57.81
SKU:
ESFCE212-SNR
SNR ESFCE212 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €82.59 ex VAT
- Sale price
- €82,59
- Regular price
-
Description
ESFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 60mm |
| A | = | 30.5mm |
| A1 | = | 16mm |
| A2 | = | 36.3mm |
| A3 | = | 3mm |
| B | = | 33.4mm |
| B1 | = | 49.3mm |
| d1 | = | 82mm |
| e | = | -1mm |
| H3 | = | 135mm |
| J | = | 160mm |
| L | = | 195mm |
| N | = | 18mm |
| S | = | 12mm |
| G | = | R1/8" |
| = | --- | |
| Load rating | = | Dynamic load C |
| 52.5 kN | = | Static load C0 |
| 32.8 kN | = | --- |
| Unit information | = | Operating temperature min. |
| -20& | = | deg |
| C | = | Operating temperature max. |
| 100& | = | deg |
| C | = | Recommended tightening torque for set screw |
| 22 Nm | = | Mass |
| 3.53 kg | = | N/A |
