SKU: ESFLE204-SNR

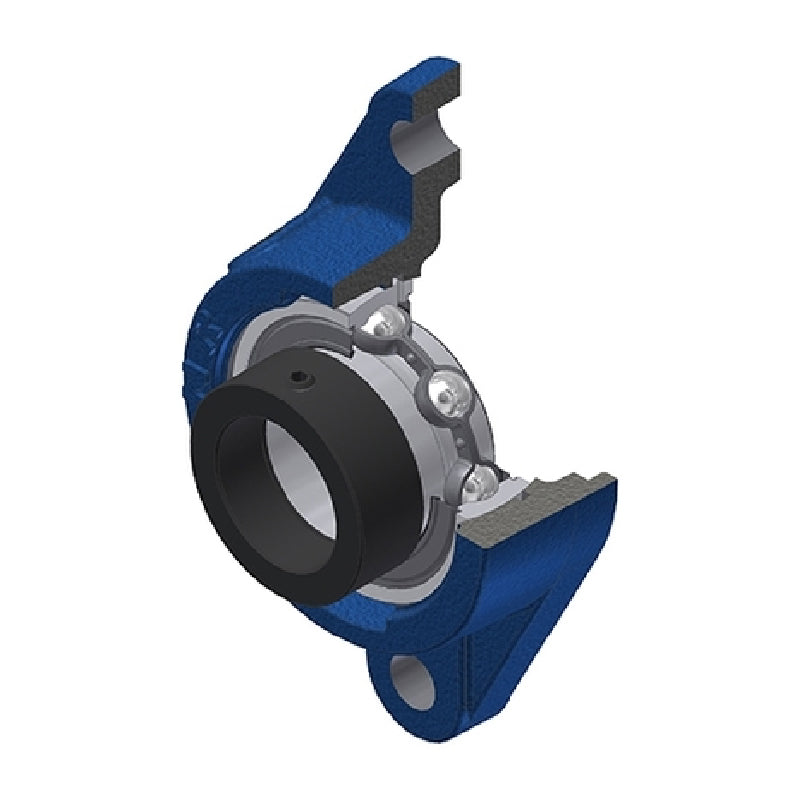

SNR ESFLE204 Metric Two Bolt Cast Iron Oval Housing with 20mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €25.07 ex VAT
- Sale price
- €25,07
- Regular price
-
Not in stock
Quantity Price Breaks
3
€22.31
4
€21.06
9
€20.81
19
€20.56
49
€20.31
99
€20.06
499
€18.80
999
€18.55
1999
€18.30
2999
€18.05
4999
€17.55
SKU:
ESFLE204-SNR
SNR ESFLE204 Metric Two Bolt Cast Iron Oval Housing with 20mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €25.07 ex VAT
- Sale price
- €25,07
- Regular price
-
Description
ESFLE200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 20mm |
| A | = | 30.3mm |
| A1 | = | 10mm |
| A2 | = | 42.4mm |
| B | = | 21.4mm |
| B1 | = | 30.9mm |
| d1 | = | 32.4mm |
| e | = | 19mm |
| H | = | 112mm |
| J | = | 90mm |
| L | = | 61mm |
| N | = | 11.5mm |
| S | = | 7.5mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 12.8 kN |
| Static load C0 | = | 6.65 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 5.5 Nm |
| Mass | = | 0.45 kg |
