SKU: ESFLE206-SNR

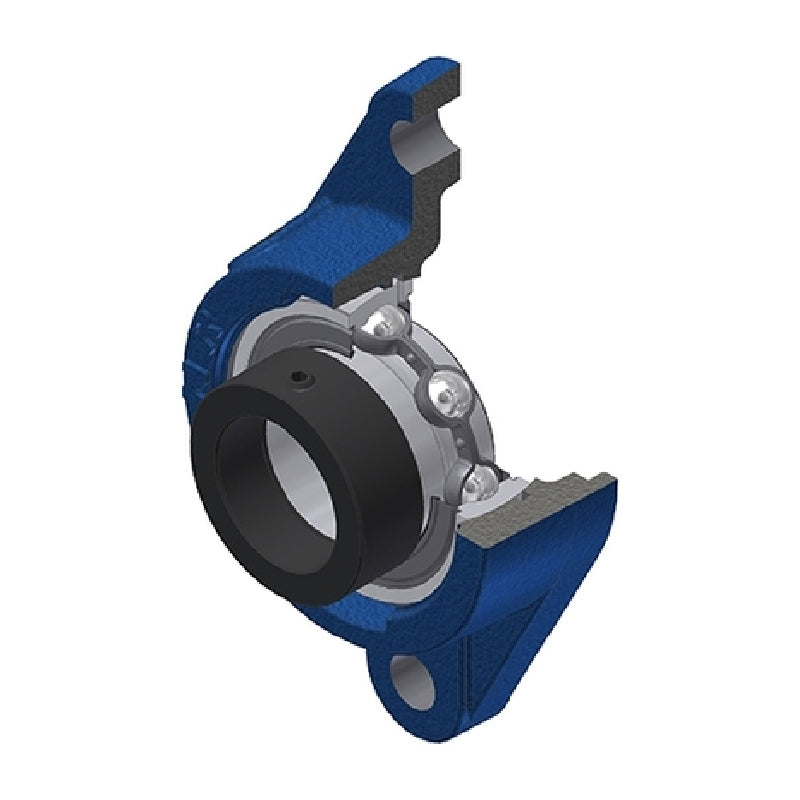

SNR ESFLE206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €29.07 ex VAT
- Sale price
- €29,07
- Regular price
-
Not in stock
Quantity Price Breaks
3
€25.87
4
€24.42
9
€24.13
19
€23.84
49
€23.55
99
€23.26
499
€21.80
999
€21.51
1999
€21.22
2999
€20.93
4999
€20.35
SKU:
ESFLE206-SNR
SNR ESFLE206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €29.07 ex VAT
- Sale price
- €29,07
- Regular price
-
Description
ESFLE200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 30mm |
| A | = | 32.1mm |
| A1 | = | 12mm |
| A2 | = | 46.7mm |
| B | = | 23.8mm |
| B1 | = | 35.7mm |
| d1 | = | 44.1mm |
| e | = | 20mm |
| H | = | 142mm |
| J | = | 116.5mm |
| L | = | 80mm |
| N | = | 11.5mm |
| S | = | 9mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 19.5 kN |
| Static load C0 | = | 11.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 0.83 kg |
