SKU: ESFLE210-SNR
SNR ESFLE210 Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €50.14 ex VAT
- Sale price
- €50,14
- Regular price
-
Not in stock
Quantity Price Breaks
3
€44.62
4
€42.12
9
€41.62
19
€41.11
49
€40.61
99
€40.11
499
€37.61
999
€37.10
1999
€36.60
2999
€36.10
4999
€35.10
SKU:
ESFLE210-SNR
SNR ESFLE210 Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €50.14 ex VAT
- Sale price
- €50,14
- Regular price
-
Description

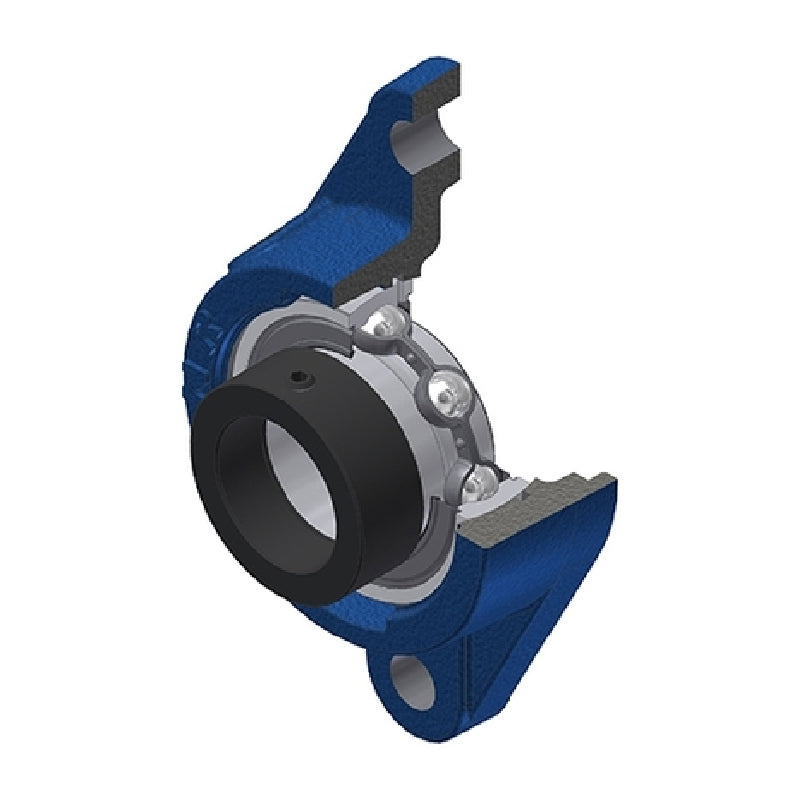

ESFLE200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 50mm |
| A | = | 41.6mm |
| A1 | = | 13mm |
| A2 | = | 60.7mm |
| B | = | 30.2mm |
| B1 | = | 43.7mm |
| d1 | = | 67.2mm |
| e | = | 28mm |
| H | = | 190mm |
| J | = | 157mm |
| L | = | 116mm |
| N | = | 18mm |
| S | = | 11mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 35.1 kN |
| Static load C0 | = | 23.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 2.1 kg |
