SKU: ESFLE212-SNR

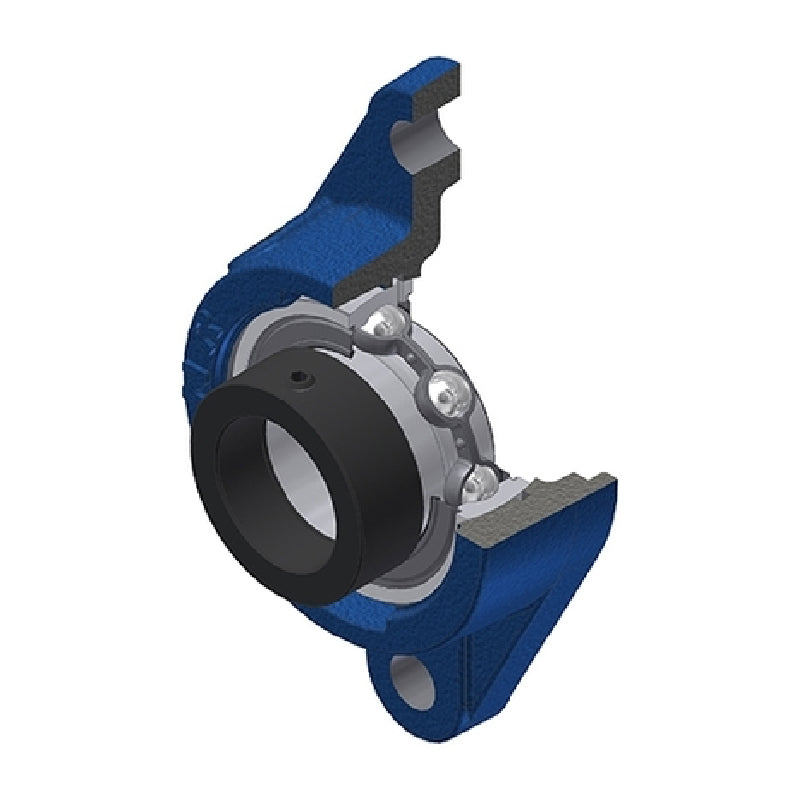

SNR ESFLE212 Metric Two Bolt Cast Iron Oval Housing with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €75.94 ex VAT
- Sale price
- €75,94
- Regular price
-
Not in stock
Quantity Price Breaks
3
€67.59
4
€63.79
9
€63.03
19
€62.27
49
€61.51
99
€60.75
499
€56.96
999
€56.20
1999
€55.44
2999
€54.68
4999
€53.16
SKU:
ESFLE212-SNR
SNR ESFLE212 Metric Two Bolt Cast Iron Oval Housing with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €75.94 ex VAT
- Sale price
- €75,94
- Regular price
-
Description
ESFLE200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 60mm |
| A | = | 50.4mm |
| A1 | = | 16mm |
| A2 | = | 71.3mm |
| B | = | 33.4mm |
| B1 | = | 49.3mm |
| d1 | = | 82mm |
| e | = | 34mm |
| H | = | 238mm |
| J | = | 202mm |
| L | = | 138mm |
| N | = | 18mm |
| S | = | 12mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 52.5 kN |
| Static load C0 | = | 32.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 3.4 kg |
