SKU: ESFLZ210-SNR

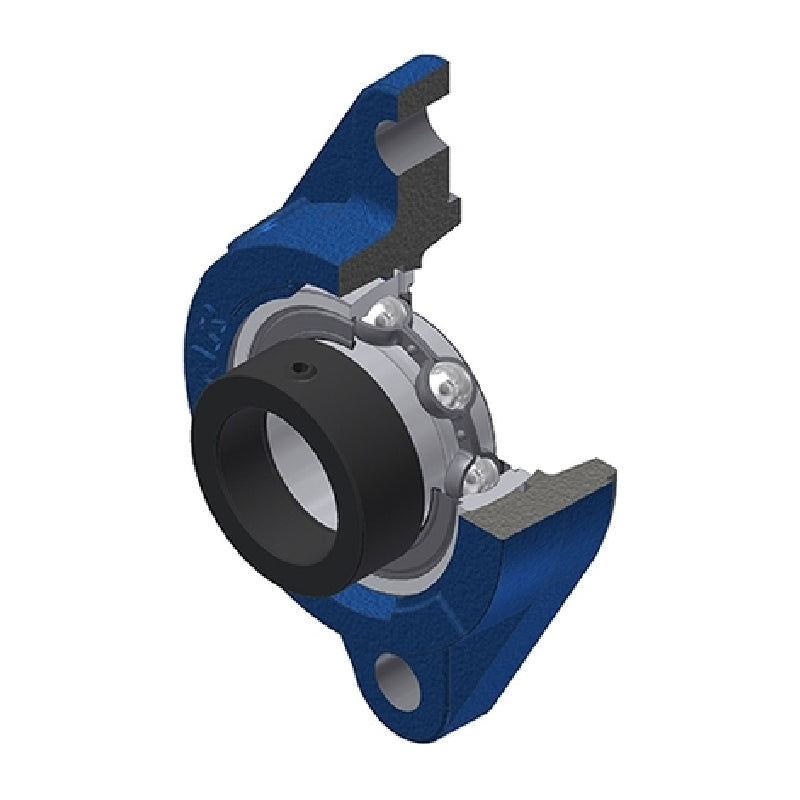

SNR ESFLZ210 Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €61.04 ex VAT
- Sale price
- €61,04
- Regular price
-
Not in stock
Quantity Price Breaks
3
€54.33
4
€51.27
9
€50.66
19
€50.05
49
€49.44
99
€48.83
499
€45.78
999
€45.17
1999
€44.56
2999
€43.95
4999
€42.73
SKU:
ESFLZ210-SNR
SNR ESFLZ210 Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €61.04 ex VAT
- Sale price
- €61,04
- Regular price
-
Description
ESFLZ200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 50mm |
| A | = | 41mm |
| A1 | = | 13mm |
| A2 | = | 56.7mm |
| A4 | = | 37mm |
| B | = | 30.2mm |
| B1 | = | 43.7mm |
| d1 | = | 67.2mm |
| e | = | 24mm |
| H | = | 190mm |
| H3 | = | 105mm |
| J | = | 157mm |
| L | = | 116mm |
| N | = | 14mm |
| S | = | 11mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 35.1 kN |
| Static load C0 | = | 23.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 2.1 kg |
