SNR ESFTE208 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 40mm Bore
SNR ESFTE208 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 40mm Bore
SNR ESFTE208 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 40mm Bore
SNR ESFTE208 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 40mm Bore
SNR ESFTE208 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 40mm Bore
SNR ESFTE208 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 40mm Bore
SNR ESFTE208 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 40mm Bore
SNR ESFTE208 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 40mm Bore
SNR ESFTE208 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 40mm Bore
SNR ESFTE208 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 40mm Bore
SNR ESFTE208 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 40mm Bore
SNR ESFTE208 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 40mm Bore
SNR ESFTE208 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 40mm Bore
SNR ESFTE208 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 40mm Bore

SKU: ESFTE208-SNR

SNR ESFTE208 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 40mm Bore

€48.98 ex VAT
€48,98
ex VAT
In stock

Quantity Price Breaks

3 €43.59
4 €41.14
9 €40.65
19 €40.16
49 €39.67
99 €39.18
499 €36.74
999 €36.25
1999 €35.76
2999 €35.27
4999 €34.29
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
SNR ESFTE208 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 40mm Bore
SNR ESFTE208 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 40mm Bore
SNR ESFTE208 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 40mm Bore
SNR ESFTE208 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 40mm Bore
SNR ESFTE208 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 40mm Bore
SNR ESFTE208 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 40mm Bore
SNR ESFTE208 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 40mm Bore
SKU: ESFTE208-SNR

SNR ESFTE208 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 40mm Bore

€48.98 ex VAT
€48,98
ex VAT

Description

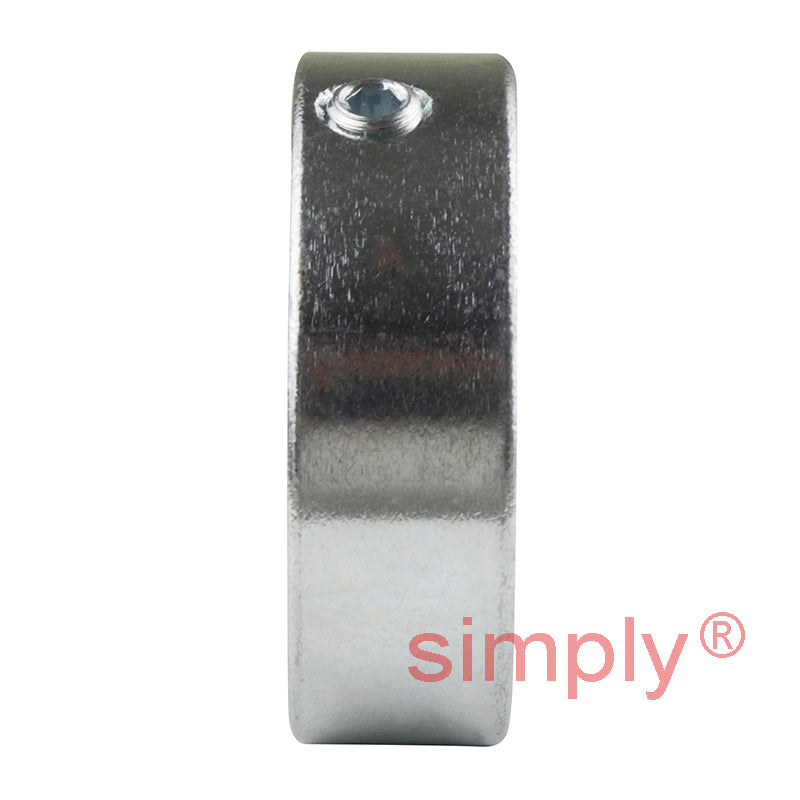

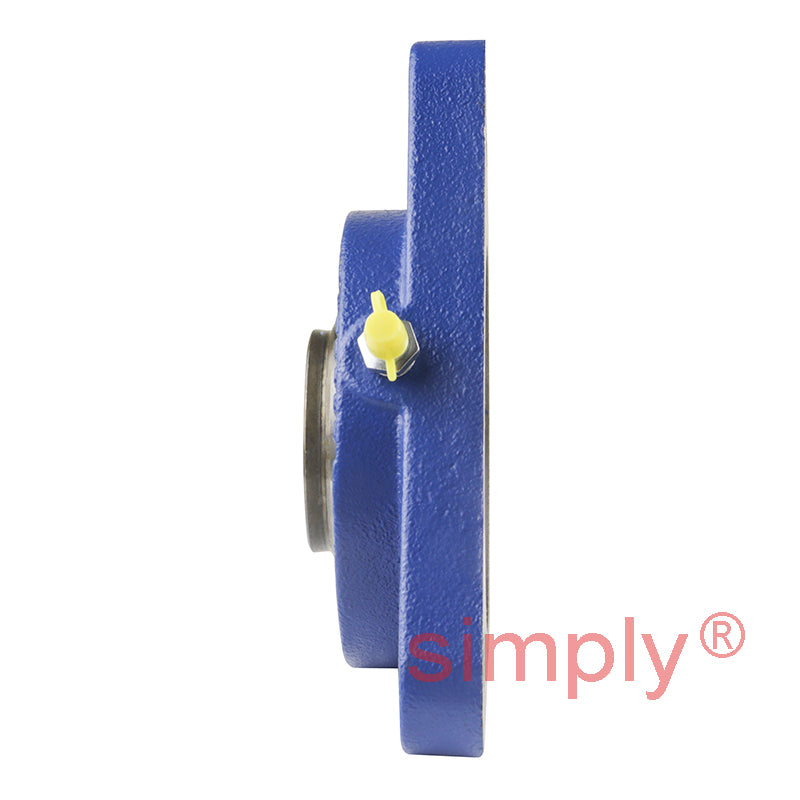

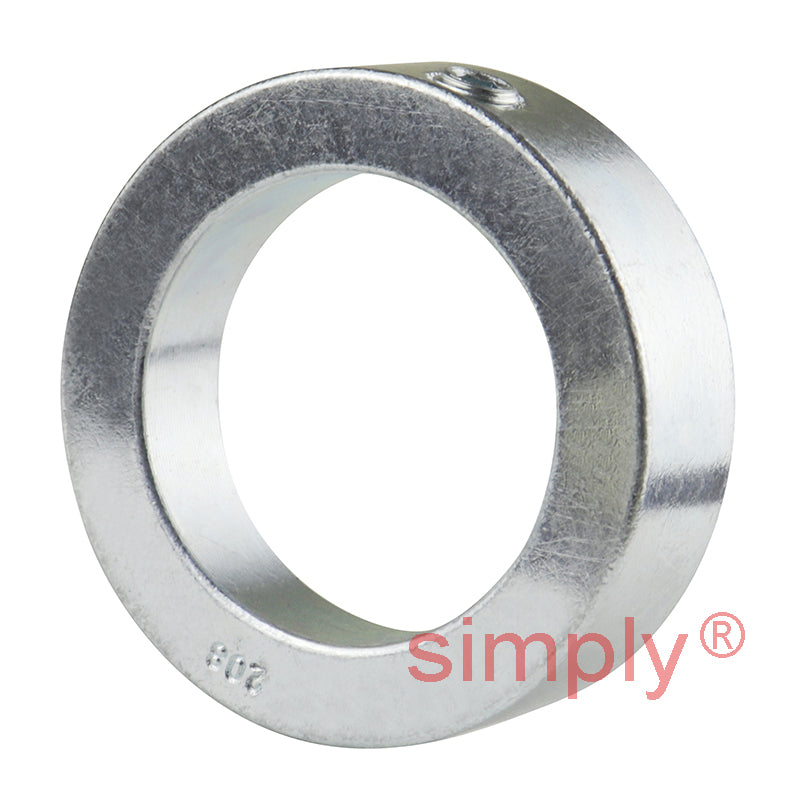

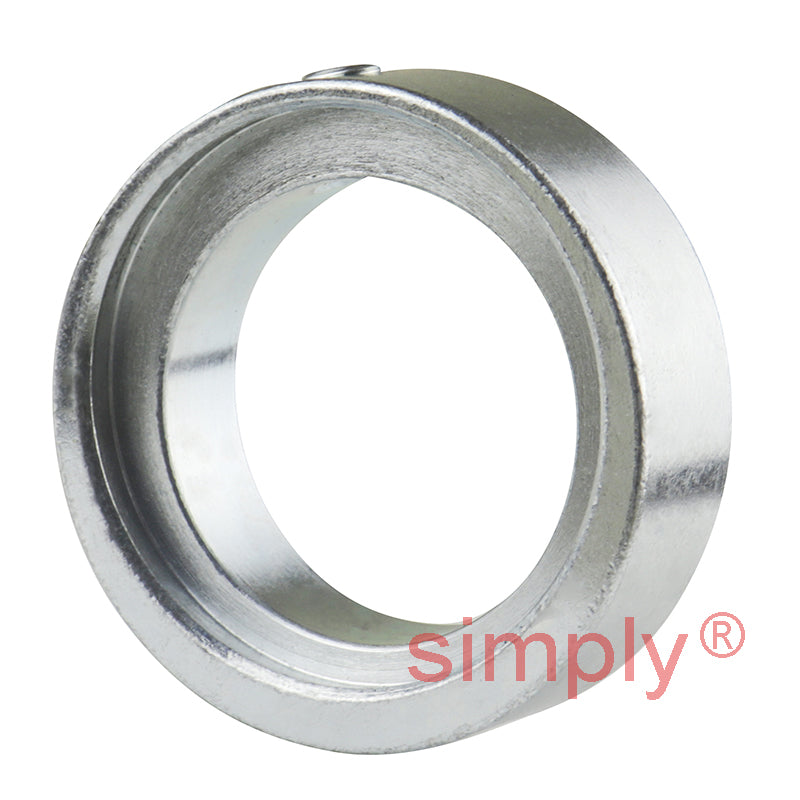

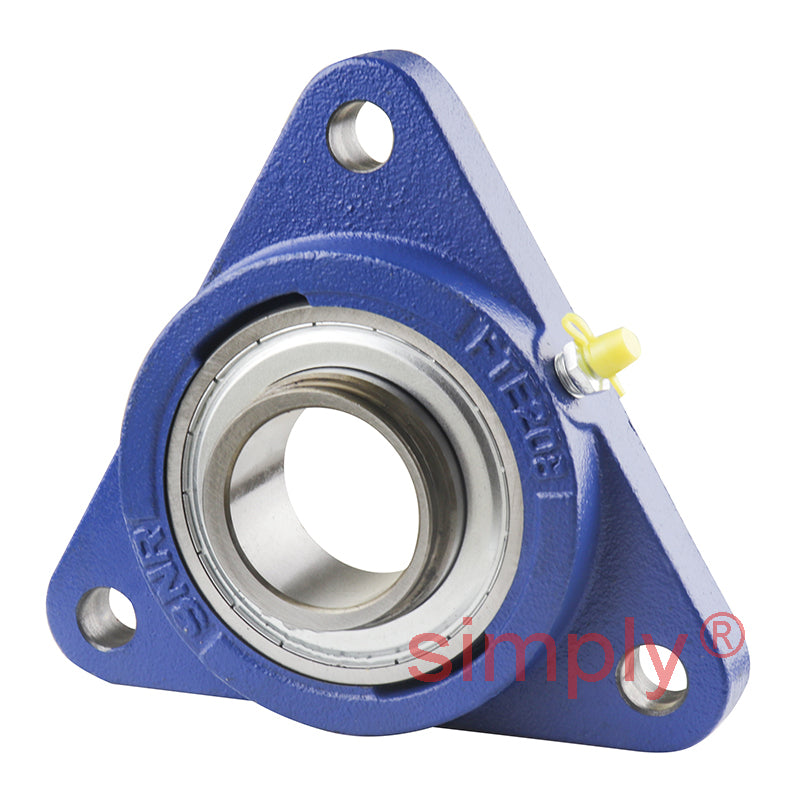

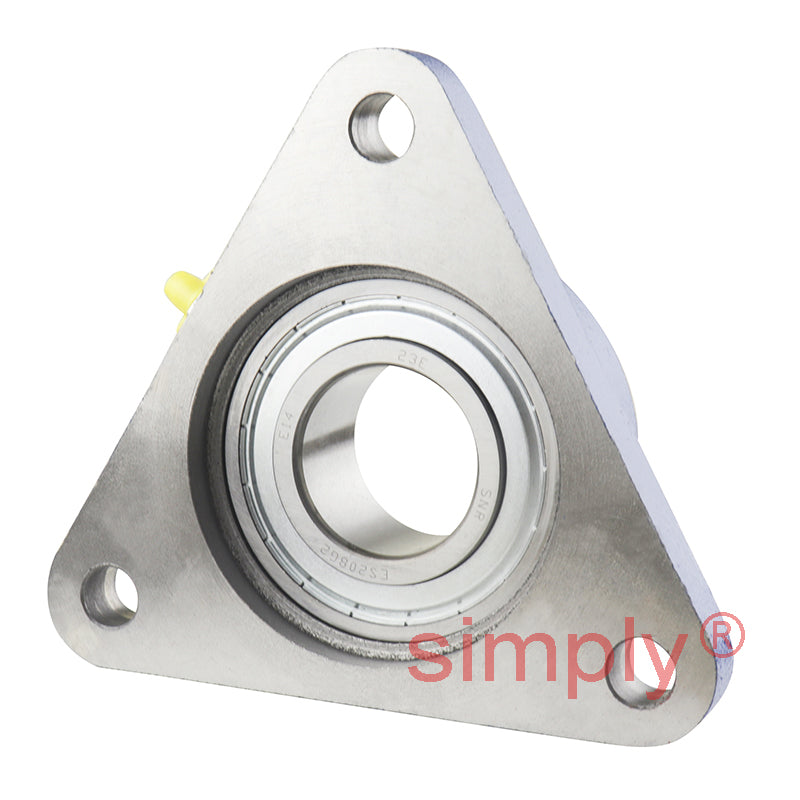

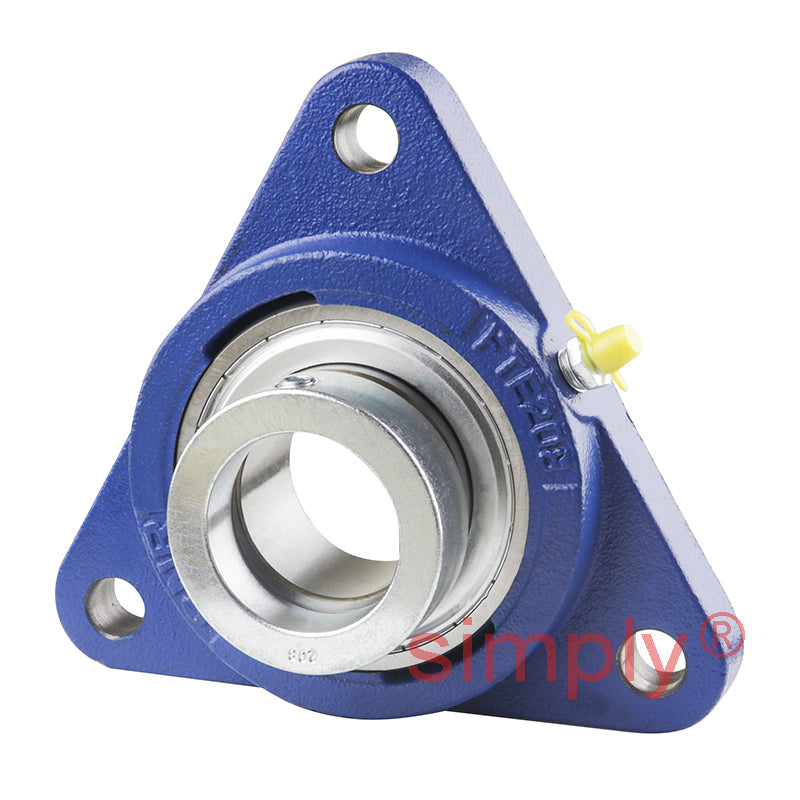

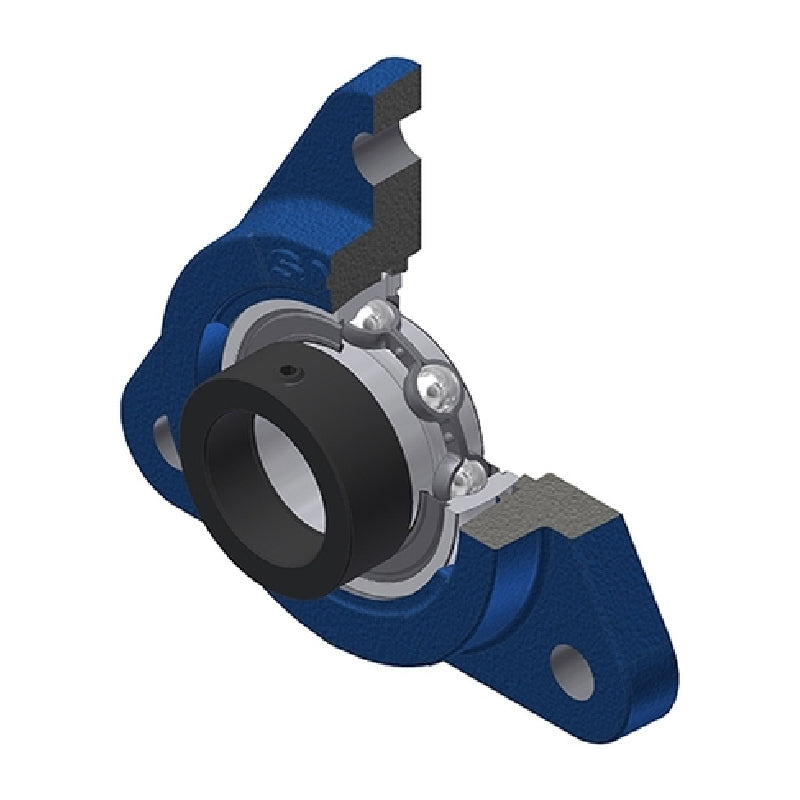

ESFTE200 Series 3 Bolt Cast Iron Triangular Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing

Technical

--- = Dimensions
Shaft diameter d = 40mm
A = 30mm
A1 = 16mm
A2 = 51.5mm
B = 30.2mm
B1 = 43.7mm
d1 = 58mm
e = 18.8mm
H = 153mm
H1 = 51mm
J = 140mm
N = 13.5mm
S = 11mm
G = R1/8&
Prime =
--- = Load rating
Dynamic load C = 29.6 kN
Static load C0 = 18.2 kN
--- = Unit information
Operating temperature min. = -20&
deg = C
Operating temperature max. = 100&
deg = C
Recommended tightening torque for set screw = 11.5 Nm
Mass = 2.34 kg
