SKU: ESFTE209-SNR

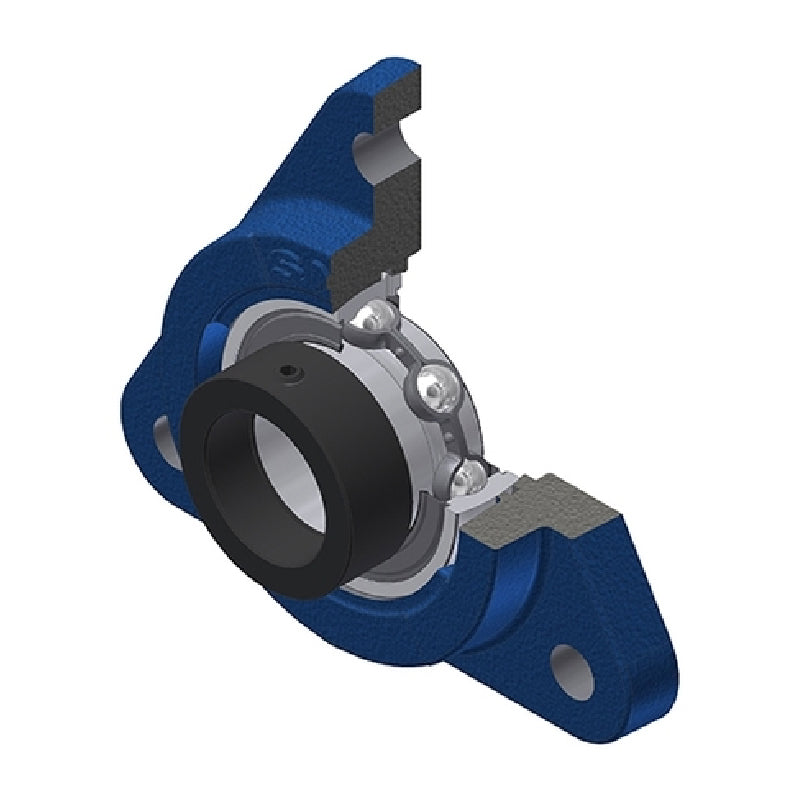

SNR ESFTE209 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
- Regular price
- €54.50 ex VAT
- Sale price
- €54,50
- Regular price
-
Not in stock
Quantity Price Breaks
3
€48.51
4
€45.78
9
€45.24
19
€44.69
49
€44.15
99
€43.60
499
€40.88
999
€40.33
1999
€39.79
2999
€39.24
4999
€38.15
SKU:
ESFTE209-SNR
SNR ESFTE209 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
- Regular price
- €54.50 ex VAT
- Sale price
- €54,50
- Regular price
-
Description
ESFTE200 Series 3 Bolt Cast Iron Triangular Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 45mm |
| A | = | 33mm |
| A1 | = | 16mm |
| A2 | = | 51.9mm |
| B | = | 30.2mm |
| B1 | = | 43.7mm |
| d1 | = | 62mm |
| e | = | 19.2mm |
| H | = | 150mm |
| H1 | = | 55mm |
| J | = | 160mm |
| N | = | 14mm |
| S | = | 11mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 31.85 kN |
| Static load C0 | = | 20.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 2.09 kg |
