SKU: ESP207-SNR
SNR ESP207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €36.82 ex VAT
- Sale price
- €36,82
- Regular price
-
Not in stock
Quantity Price Breaks
3
€32.77
4
€30.93
9
€30.56
19
€30.19
49
€29.82
99
€29.46
499
€27.62
999
€27.25
1999
€26.88
2999
€26.51
4999
€25.77
SKU:
ESP207-SNR
SNR ESP207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €36.82 ex VAT
- Sale price
- €36,82
- Regular price
-
Description

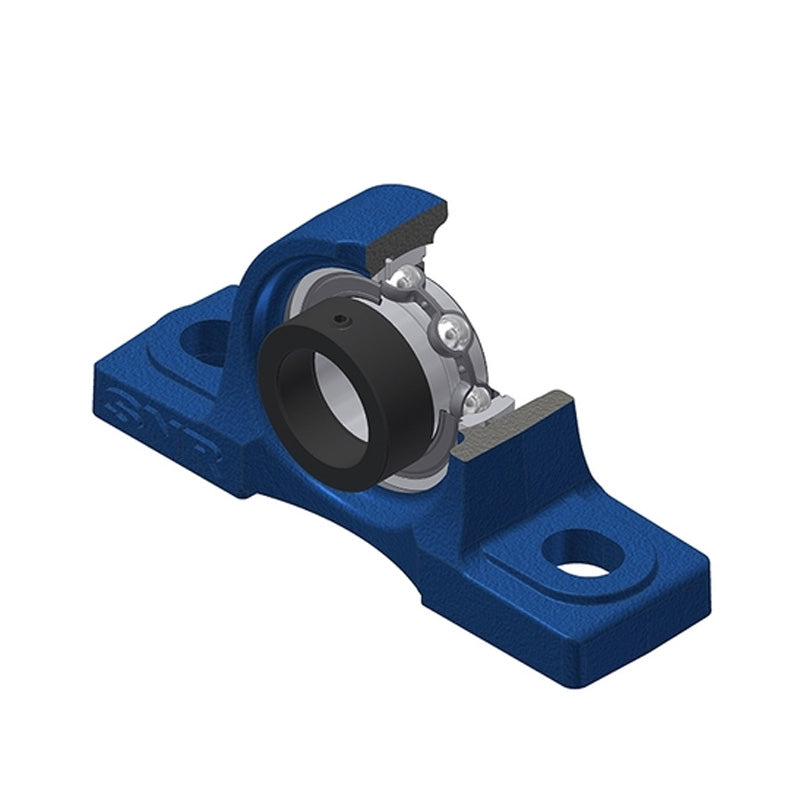

ESP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical

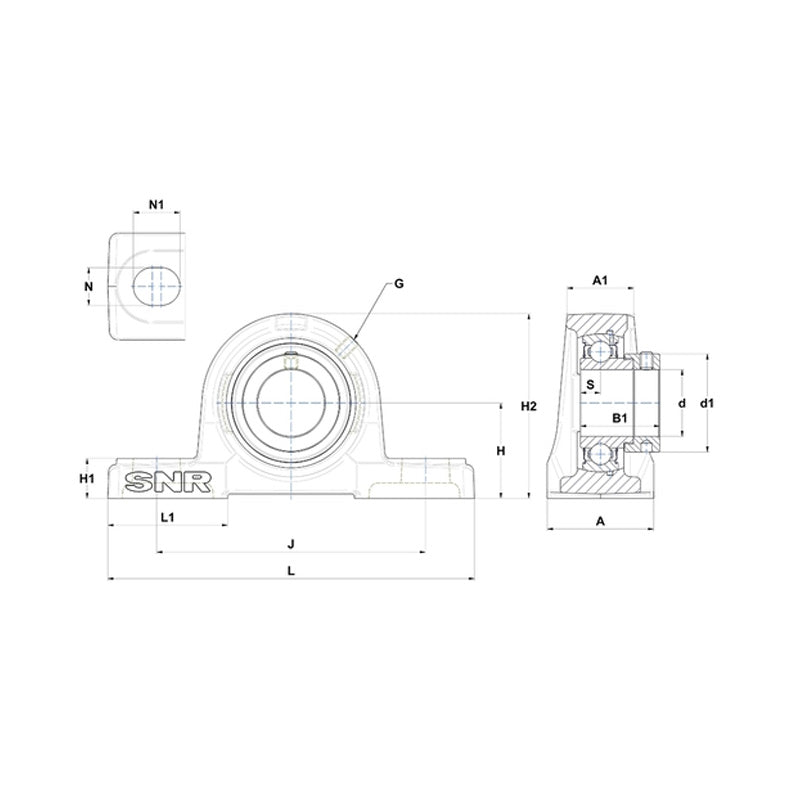

| --- | = | Dimensions |
| Shaft diameter d | = | 35mm |
| A | = | 48mm |
| A1 | = | 31mm |
| B | = | 25.4mm |
| d1 | = | 51.1mm |
| H | = | 47.6mm |
| H1 | = | 19mm |
| H2 | = | 94mm |
| J | = | 127mm |
| L | = | 167mm |
| L1 | = | 54mm |
| N | = | 17mm |
| N1 | = | 21mm |
| S | = | 9.5mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 25.7 kN |
| Static load C0 | = | 15.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 1.7 kg |
