SKU: ESPA204-SNR
SNR ESPA204 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 20mm Bore
- Regular price
- €26.64 ex VAT
- Sale price
- €26,64
- Regular price
-
In stock
Quantity Price Breaks
3
€23.71
4
€22.38
9
€22.11
19
€21.84
49
€21.58
99
€21.31
499
€19.98
999
€19.71
1999
€19.45
2999
€19.18
4999
€18.65
SKU:
ESPA204-SNR
SNR ESPA204 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 20mm Bore
- Regular price
- €26.64 ex VAT
- Sale price
- €26,64
- Regular price
-
Description
|

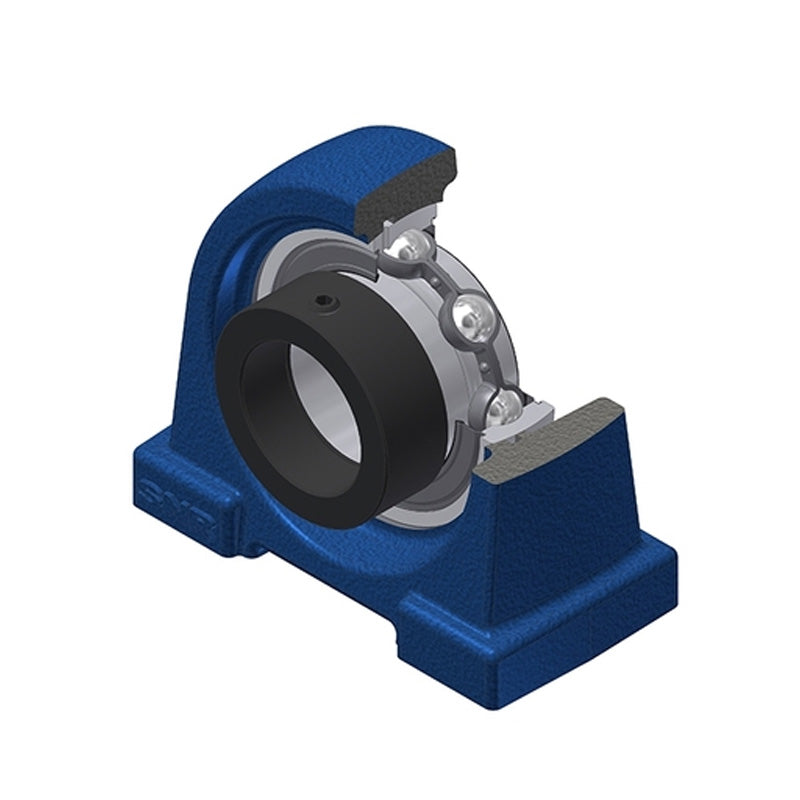

ESPA200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
Technical

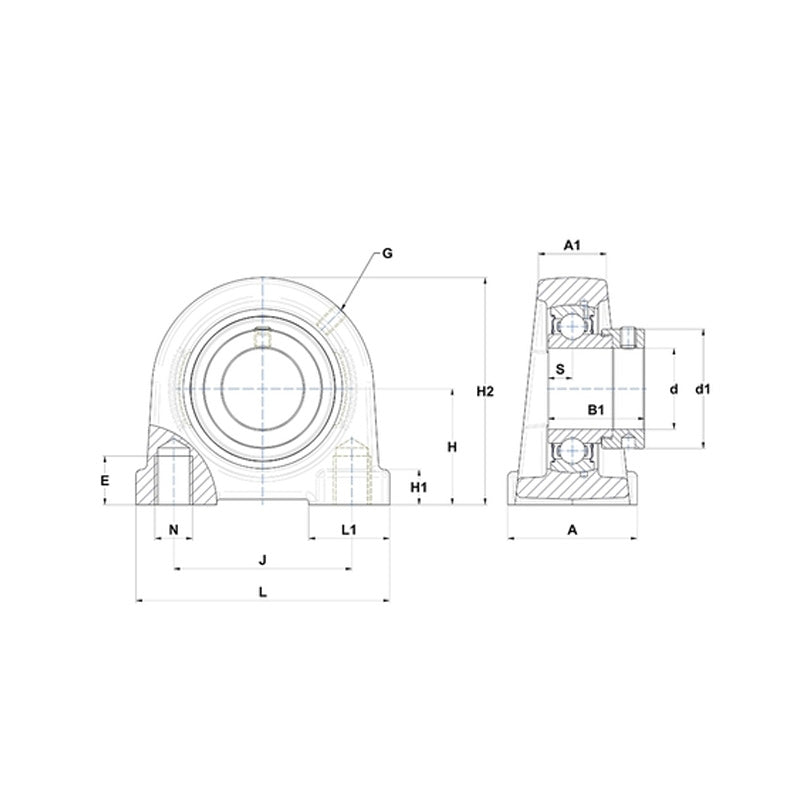

| --- | = | Dimensions |
| Shaft diameter | = | 20mm |
| A | = | 40mm |
| A1 | = | 22mm |
| B | = | 21.4mm |
| d1 | = | 32.4mm |
| E | = | 13mm |
| H | = | 30.2mm |
| H1 | = | 11mm |
| H2 | = | 62mm |
| J | = | 52mm |
| L | = | 76mm |
| L1 | = | 22mm |
| N | = | M10 |
| S | = | 7.5mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 12.8 kN |
| Static load C0 | = | 6.65 kN |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| --- | = | Unit information |
| Recommended tightening torque for set screw | = | 5.5 Nm |
| Mass | = | 0.55 kg |
