SKU: ESPAE204-SNR
SNR ESPAE204 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days
- Regular price
- €25.88 ex VAT
- Sale price
- €25,88
- Regular price
-
Not in stock
Quantity Price Breaks
3
€23.03
4
€21.74
9
€21.48
19
€21.22
49
€20.96
99
€20.70
499
€19.41
999
€19.15
1999
€18.89
2999
€18.63
4999
€18.12
SKU:
ESPAE204-SNR
SNR ESPAE204 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days
- Regular price
- €25.88 ex VAT
- Sale price
- €25,88
- Regular price
-
Description
|

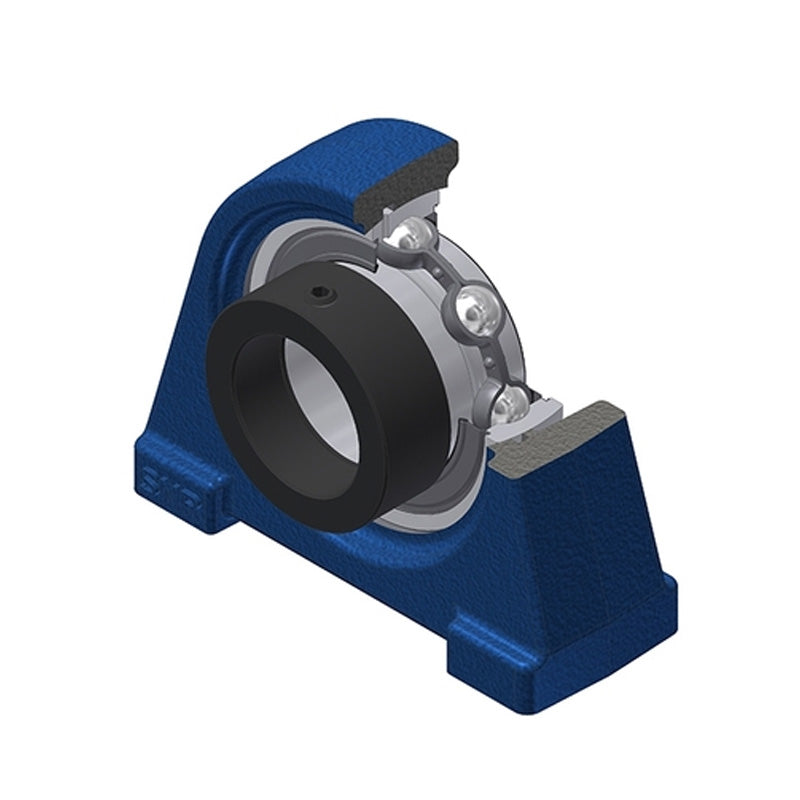

ESPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
Technical

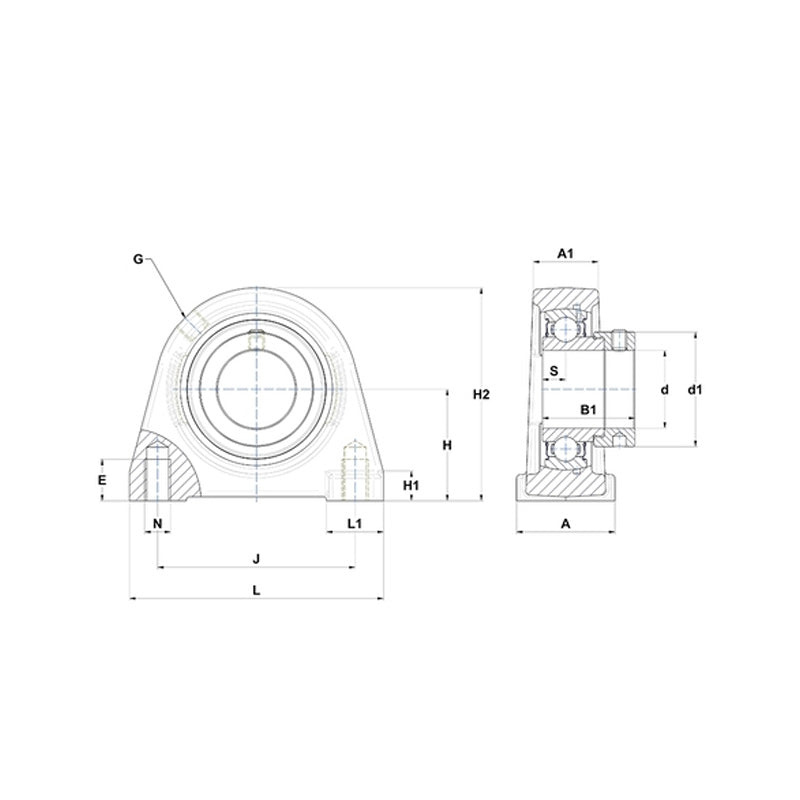

| --- | = | Dimensions |
| Shaft diameter | = | 20mm |
| A | = | 32mm |
| A1 | = | 19mm |
| B | = | 21.4mm |
| d1 | = | 32.4mm |
| E | = | 10mm |
| H | = | 33.3mm |
| H1 | = | 9mm |
| H2 | = | 64mm |
| J | = | 50.8mm |
| L | = | 65mm |
| L1 | = | 18mm |
| N | = | M8 |
| S | = | 7.5mm |
| G | = | R1/8& |
| quot | = | |
| --- | = | Load rating |
| Dynamic load C | = | 12.8 kN |
| Static load C0 | = | 6.65 kN |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| --- | = | Unit information |
| Recommended tightening torque for set screw | = | 5.5 Nm |
| Mass | = | 0.45 kg |
