SKU:
ESPAE209-SNR
SNR ESPAE209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
- Regular price
- €50.82 ex VAT
- Sale price
- €50,82
- Regular price
-
Description
|

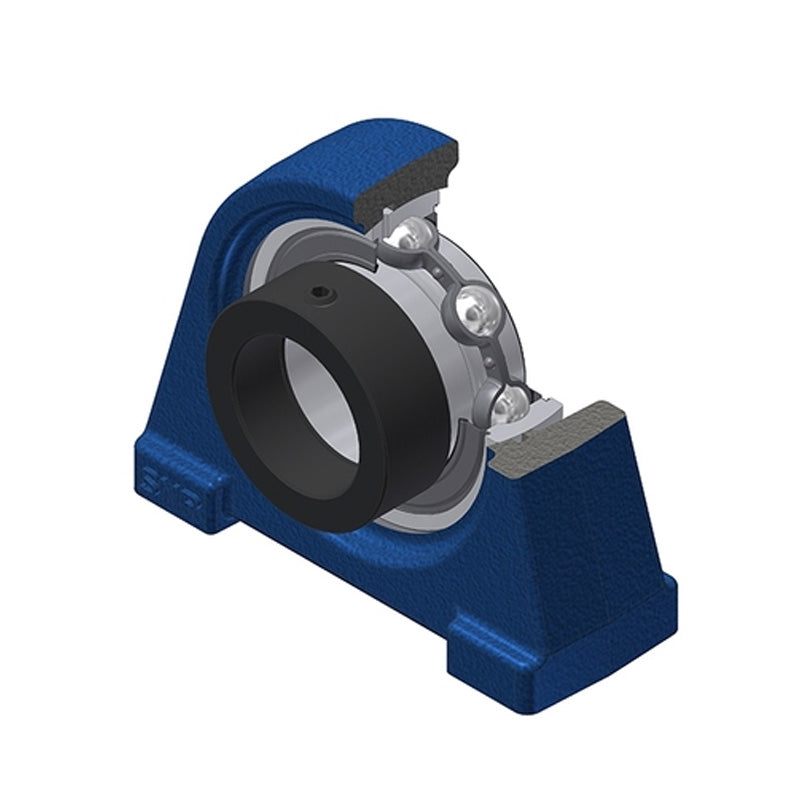

ESPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
Technical

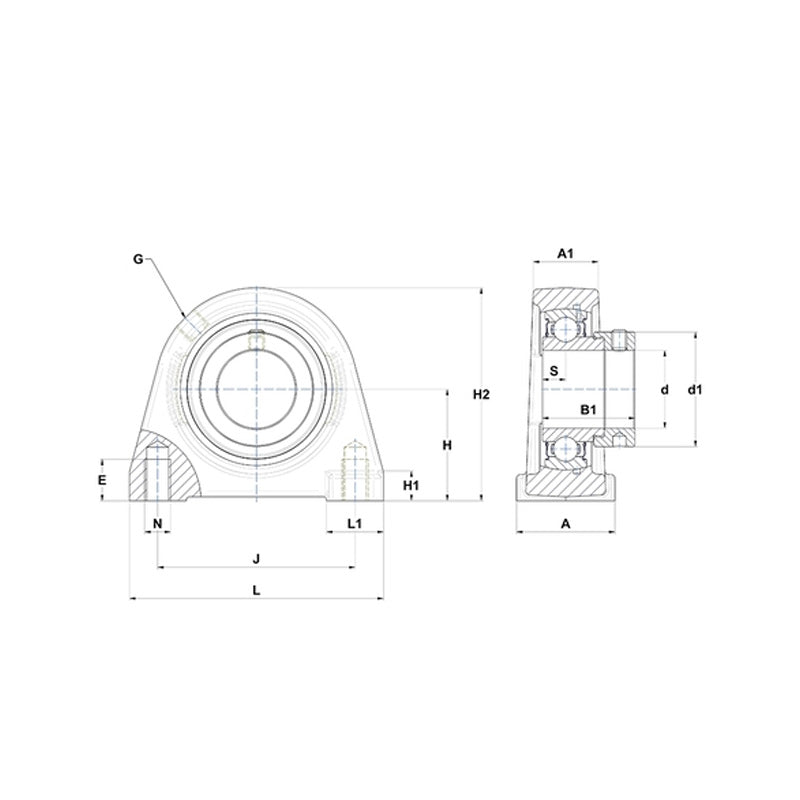

| --- | = | Dimensions |
| Shaft diameter | = | 45mm |
| A | = | 48mm |
| A1 | = | 32mm |
| B | = | 30.2mm |
| d1 | = | 62mm |
| E | = | 15mm |
| H | = | 53.9mm |
| H1 | = | 14mm |
| H2 | = | 107mm |
| J | = | 95.3mm |
| L | = | 120mm |
| L1 | = | 29mm |
| N | = | M12 |
| S | = | 11mm |
| G | = | R1/8& |
| quot | = | |
| --- | = | Load rating |
| Dynamic load C | = | 31.85 kN |
| Static load C0 | = | 20.8 kN |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| --- | = | Unit information |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 1.89 kg |
