SKU: ESPAE210-SNR
SNR ESPAE210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 50mm Bore - Allow 2-3 Days
- Regular price
- €55.06 ex VAT
- Sale price
- €55,06
- Regular price
-
Not in stock
Quantity Price Breaks
3
€49.00
4
€46.25
9
€45.70
19
€45.15
49
€44.60
99
€44.05
499
€41.30
999
€40.74
1999
€40.19
2999
€39.64
4999
€38.54
SKU:
ESPAE210-SNR
SNR ESPAE210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 50mm Bore - Allow 2-3 Days
- Regular price
- €55.06 ex VAT
- Sale price
- €55,06
- Regular price
-
Description
|

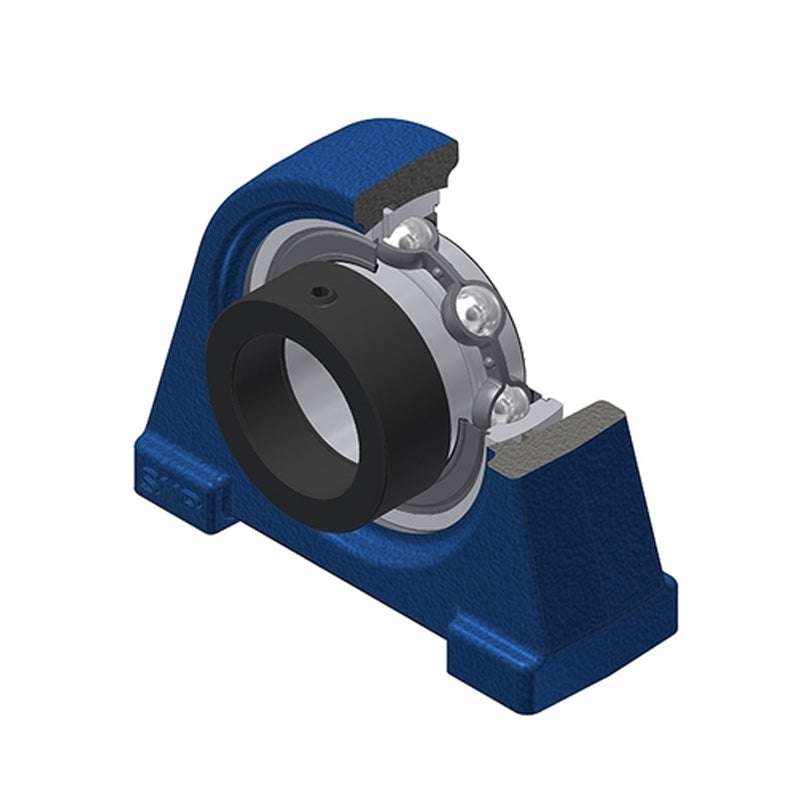

ESPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
Technical

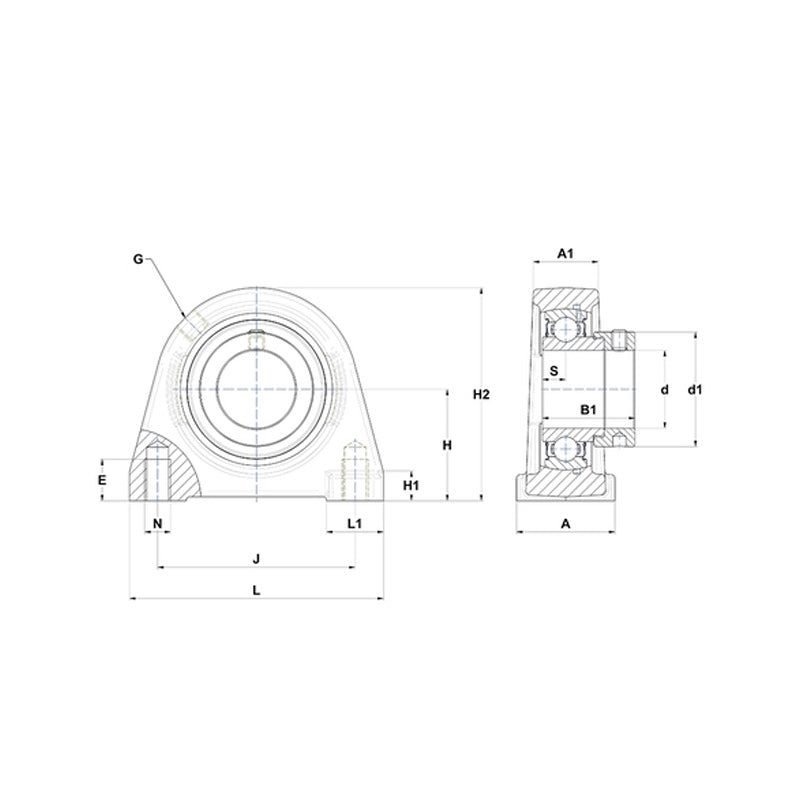

| --- | = | Dimensions |
| Shaft diameter | = | 50mm |
| A | = | 54mm |
| A1 | = | 34mm |
| B | = | 30.2mm |
| d1 | = | 67.2mm |
| E | = | 20mm |
| H | = | 57.2mm |
| H1 | = | 15mm |
| H2 | = | 115mm |
| J | = | 101.6mm |
| L | = | 135mm |
| L1 | = | 33.5mm |
| N | = | M16 |
| S | = | 11mm |
| G | = | R1/8& |
| quot | = | |
| --- | = | Load rating |
| Dynamic load C | = | 35.1 kN |
| Static load C0 | = | 23.2 kN |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| --- | = | Unit information |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 2.5 kg |
